    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Load Capacity: 50 Ton Acting Way: Single Acting
    Adjusted Form: Regulated Type Specification: Customized
    Business Type: Manufacturer Warranty: One Year
    Delivery Time: 15-25 Days Grade: Heavy Duty

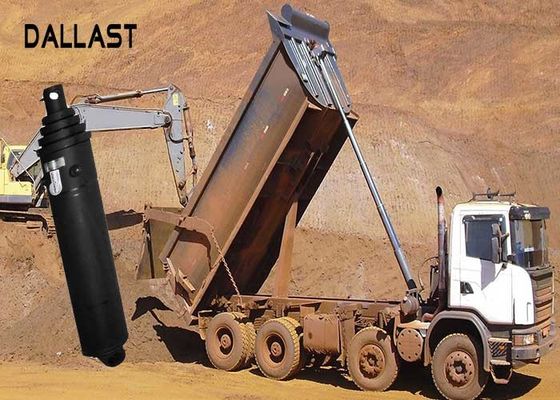

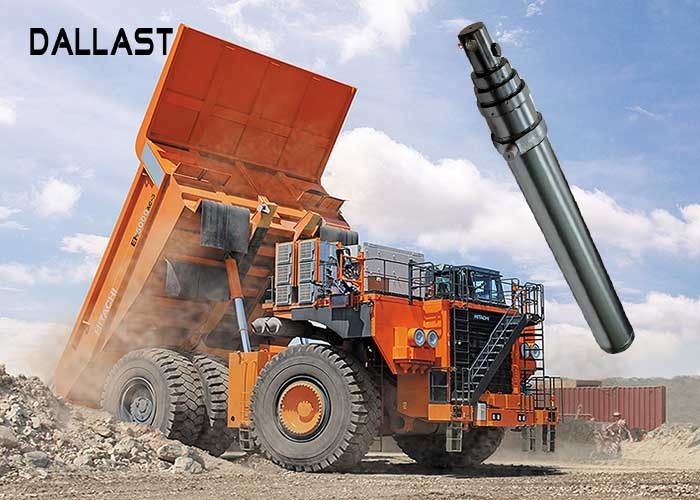

    Single Acting Hydraulic Oil Cylinder Used in Engineering Machinery Lifting Dump Truck



    1.Parts

    Name Description
    Barrel Seamless forged tube
    Base Welded, screwed, bolts, tie rod
    Head Connected by threading, bolts, tie rod
    Piston Machined with grooves, can be single acting or double acting
    Piston rod High telerance, hard chrome plated, cold rolled steel
    Seals Hallite, NOK, Parker, Merkel



    Product advantages:
    When the pressure oil from the rod into the cavity, effective area of the piston cylinder extends, line to the end, effective area of the piston of the cylinder to lend, telescopic hydraulic out of order is from large to small in turn out, get a long working stroke, extended cylinder effective area is smaller, faster out, therefore, extended speed is slow and fast, the corresponding hydraulic thrust from large to small, this thrust, speed change law, is suitable for variety of automatic loading and unloading machinery on the thrust and speed requirements, in the back of the order is generally in order to retract, axial length of the retracted shorter, less occupied space, compact structure, commonly used in construction machinery and other walking machinery, such as cranes, dump truck and other hydraulic systems





    3 TG Parker and Custom Hoists Kind
    Model No. First Stage Diameter Stroke(A) Closed Length(B) Open Length(C)
    3TG F5*72 5" 127 72"(1829mm) 37.19" (945mm) 109.19" (2773mm)
    3TG F5*84 5'' 127 84" (2134mm) 41.19" (1046mm) 125.19" (3180mm)
    3TG F5*107 5" 127 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
    3TG F5*126 5" 127 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
    3TG F6*86 6" 152.4 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
    3TG F6*104 6" 152.4 103.94" (2640mm) 47" (1194mm) 150.94" (3834mm)
    3TG F6*107 6" 152.4 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
    3TG F6*111 6'' 152.4 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm)
    3TG F6*120 6'' 152.4 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm)
    3TG F6*123 6'' 152.4 123" (3124mm) 54.94" (1395mm) 177.94" (4519mm)
    3TG F6*126 6'' 152.4 126.31"(3208mm) 54.56" (1386mm) 180.87" (4594mm)
    3TG F6*140 6'' 152.4 140.25" (3562mm) 59.81" (1519mm) 200.06" (5081mm)



    3 TG FC type hydraulic cylinder
    MODEL NO. First Stage Diameter Stroke Largest Sleeve OD Closed length Mounting distance
    FC-3-107-2855 107 2855 152 1268 311
    FC-3-107-3115 107 3115 152 1368 311
    FC-3-107-3265 107 3265 152 1418 311
    FC-3-107-3415 107 3415 152 1468 311
    FC-3-107-3715 107 3715 152 1568 311
    FC-3-126-3230 126 3230 219 1403 343
    FC-3-126-3680 126 3680 219 1553 343
    FC-3-126-3830 126 3830 219 1603 343
    FC-3-126-4400 126 4400 219 1803 343

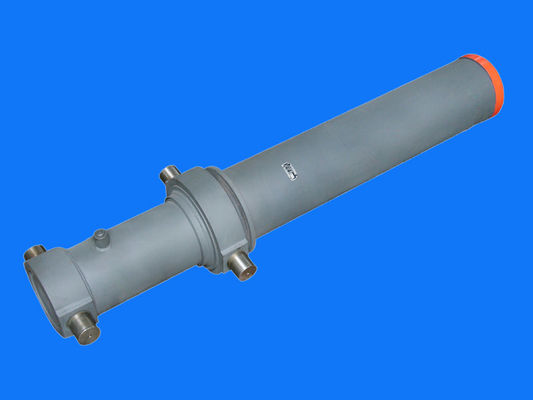

    DALLAST prepositive hydraulic oil cylinder series

    DALLAST standard hydraulic oil cylinder series include telescopic prepositive cylinder, prepositive cylinder with bore ring and double bore rings, DALLAST company also produces prostrate cylinder, single action and double action cylinder. The maximum stroke can be 6.18 meters and the maximum lifting power can be 100 MT.



    Applications:

    The cylinders produced in DALLAST company are mainly used on:

    1.Tipping vehicle;

    2.Tipping trailer;

    3.Tipping skip;

    4.Side tipping vehicle;

    5.Compressed equipment, etc.

    Hydraulic Oil Single Acting Telescopic Cylinder Engineering Machinery Lifting Dump Truck Applied
