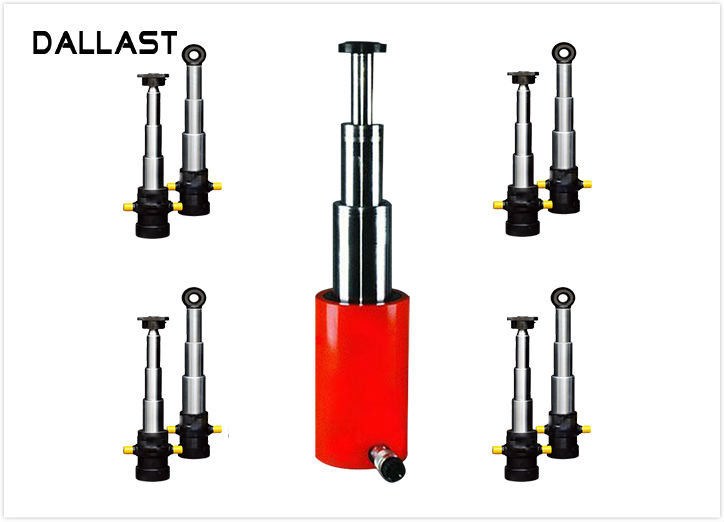

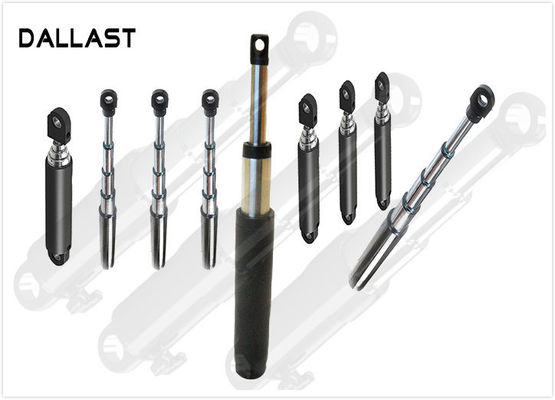

3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck

3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck

    • 3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck
    • 3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck
    • 3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck
  • 3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Delivery Time: 15-25 Days
    HS Code: 8412210000 Structure: Telescopic Cylinder
    Origin: Shandong, China Working Method: Straight Trip

    3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck





    Product Description:

    Sealing system
    All the hydraulic cylinders produced by our company adopt the seal ring products of Parker, Merkel and Busak+Shamban.

    Guide sleeve

    The sleeve is made of high strength spheroidal graphite cast iron and high strength steel under buffering inner bore copper welding treatment.

    Cylinder block
    The cylinder block is made of high strength carbon steel. The internal surface of the cylinder is designed with proper strength, size, and thickness of cylinder body, and it has good degree of finish and rigidity under the tumbling treatment which minimizes the inner friction, improves the wear resistance and prolongs the service life.

    Application

    Construction vehicle, excavator, crane, construction machinery, shipbuilding, metallurgy industry, hydro power project, agriculture machinery etc.



    Parameter:

    TG series hydraulic cylinder for vechile
    Model Rated pressure Bore diameter Installation distance Stroke Rated theoretical thrust(KN)
    (MPa) (mm·) (mm) (mm) First class Last class
    4TG-E180*800 16 180 140 800 410 210
    4TG-E160*800 16 160 140 800 320 170
    3TG-E150*800 16 150 140 800 280 145
    5TG-E130*750 16 130 140 750 210 110
    3TG-E130*900 16 130 140 900 210 110
    4TG-E110*1360 16 110 140 1360 150 32
    3TG-E110*1530 16 110 140 1530 150 60
    3TG-E110*1350 16 110 140 1350 150 60
    3TG-E110*1020 16 110 140 1020 150 60
    3TG-E110*900 16 110 260 900 150 60
    2TG-E110*1020 16 110 140 1020 150 100
    3TG-E90*1155 16 90 140 1155 100 30
    3TG-E90*1020 16 90 140 1020 100 30
    3TG-E90*900 16 90 260 900 100 30
    3TG-E90*750 16 90 140 750 100 30
    2TG-E90*900 16 90 140 900 100 60
    2TG-E90*600 16 90 260 600 100 60
    2TG-E90*500 16 90 260 500 100 60
    3TG-E70*750 16 70 140 750 60 20

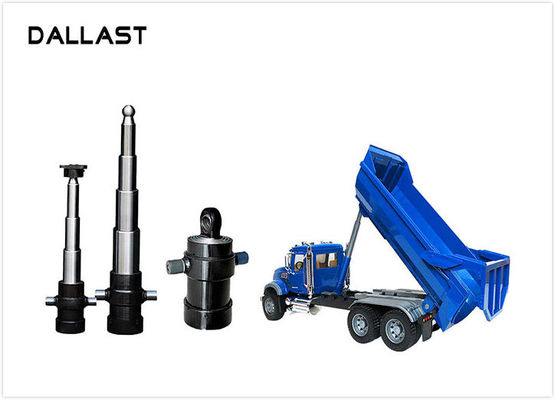

     Hydralic Cylinder for Dump Truck
    HS Code 8412210000
    Application Dump Truck
    Material of cylinder tube Alloy Steel, Stainless Steel
    Seal Parker, Merkel and Busak+Shamban
    Coating Chrome plated
    Temperature -30ºC~80ºC
    Working pressure 16mpa-62mpa
    Stroke 300mm-10000mm
    Color Red black blue gray, according to your requirements
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Warranty One year after shipping arrival
    Payment terms T/T, L/C, West Union,Paypal
    Delivery time 15- 25 days after down payment



    Cylinder and cylinder of the advantages and disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;



    Profile:

    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.



    Product Show:
    3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic Cylinders for Dump Truck
