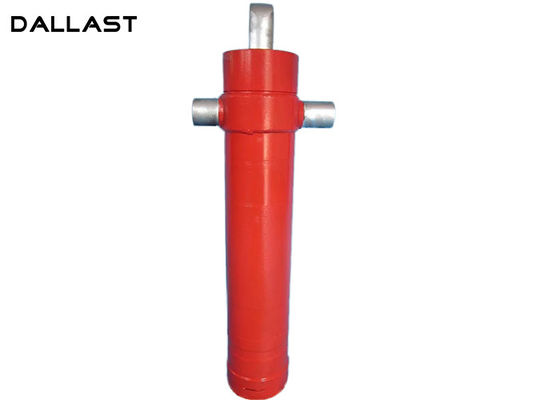

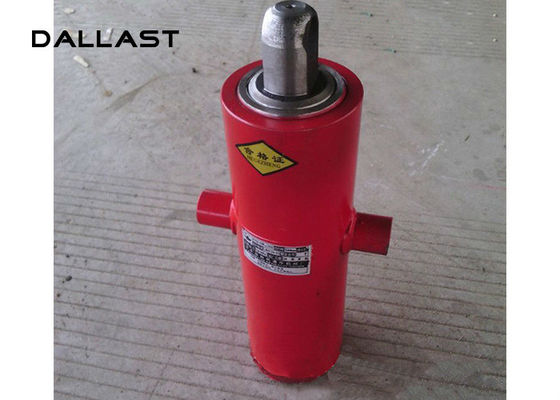

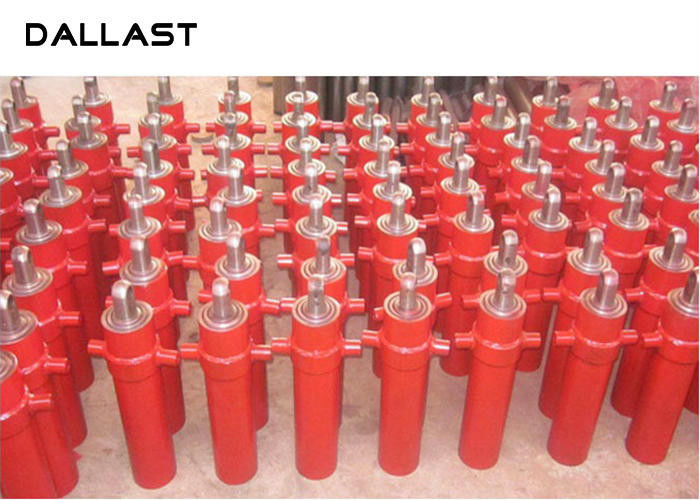

Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder

Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder

    • Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder
    • Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder
    • Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder
    • Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder
  • Dump Trailer Hydraulic Cylinder Multi Stage Telescopicing , 3 Stage Telescoping Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: Single Acting Hydraulic Cylinder Stage: 2 3 Stage
    Structure: One Way Telescopic Sleeve Cylinder Hydraulic Pressure: 16-21 Mpa
    Name: Hydraulic Rams Oil Cylinder Price For Sale Mounting Type: Middle-trunnion,Hinge Shaft Axis

    Multi Stage Telescopicing Agriculture Tipper Dump Trailer Hydraulic Cylinder



         We are specializing in the production of various vehicles, equipment used hydraulic cylinder, and all kinds of piston hydraulic cylinder. Vehicle sleeve cylinder to 110 series based, with the following specifications: 110 * 550,110 * 510,110 * 500,110 * 475,110 * 450,110 * 420,110 * 375,110 * 340,110 * 300 , 90 * 450.

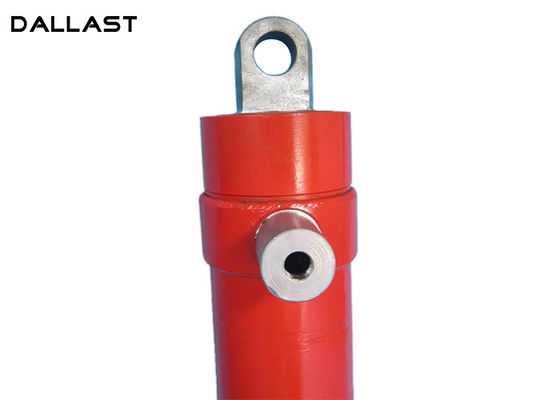

         110 * 375 is 2 stage sleeve cylinder ,  matching with garbage truck, dump Truck, Tipper Truck, Trailer, Agricultural Machinery. The total length of 750MM, trunnion diameter of 50, trunnion from the center of the installation to pin hole center 150mm, the inlet port in the trunnion, the thread size M20 * 1.5. Latching hole 30mm.



    Cylinder custom-design parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.



    Multi-stage telescopic sleeve cylinder


    Multi-stage hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.



    Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Garbage Truck etc
    TG series Hydraulic Cylinder
    Model Stage Pressure(MPa) Bore Diameter(mm) Stroke(mm)
    110mmx510mm 2 16 110/90 510
    110mmx500mm 2 16 110/90 500
    110mmx475mm 2 16 110/90 475
    110mmx450mm 2 16 110/90 450
    110mmx420mm 3 16 110/90/70 420
    110mmx340mm 3 16 110/90/70 340
    110mmx300mm 3 16 110/90/70 300
    90mmx450mm 2 16 90/70 450
    110mmx375mm 2 16 110/90 375
