Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded

Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded

    • Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded
    • Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded
    • Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded
  • Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Origin: Shandong, China
    Material: Stainless Steel, Alloy Steel Color: Any Color
    Means Of Transport: Ocean, Air Surface Coating: Sandblasting, Primer Paint, Middle Paint, Finish

    Telescopic Lifting Welded Industrial Truck Single Acting Hydraulic Ram





    Single Acting Hydraulic Cylinder Inner Workings and Uses:

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

    Parameter:

    Product Series: TG140/175/185
    Model Tipping.Max Press Close.height(mm) Tanker.Vol carriage Rear overhang Lifting.angle
    (T) (MPa) (L) (mm) (degree)
    3TG-E140×4000 24.6 16 1675 50 5200-5400 700mm 48-52
    4TG-E140×4270 24.6 16 1421 55 5400-5600 700mm 48-52
    4TG-E175×4450 38.5 16 1470 81 5600-6000 800 48-52
    4TG-E175×4650 38.5 16 1509 84 6000-6400 800 48-52
    4TG-E175×5000 38.5 16 1597 91 6400-6600 800 48-52
    4TG-E175×5390 38.5 16 1695 98 6600-7000 800 48-52
    4TG-E175×5780 38.5 16 1792 104 7000-7400 800 48-52
    4TG-E175×6000 38.5 16 1851 109 7400-7800 800 48-52
    4TG-E175×6180 38.5 16 1897 112 7800-8000 800 48-52
    4TG-E185×4650 43 16 1509 96 6200-6600 800 48-52
    4TG-E185×5000 43 16 1597 103 6600-6800 800 48-52
    4TG-E185×5390 43 16 1695 111 6800-7200 800 48-52
    4TG-E185×5780 43 16 1792 119 7200-7600 800 48-52





    Cylinder and cylinder of the advantages and disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;



    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    Attention:

    1. We have special departments to ensure that no strict quality control any quality problem before delivery.

    2. Carefully check goods size table and product specifications. Please check detail with customer service before buying

    3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.



    Profile:

    We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
    Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

    15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

    The only one super size cylinder manufactuer in China.

    Full experience in design, produce, mounting, testing, operation and maintenance.

    Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

    Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

    2000m2 synthetic office building of computer control net work center

    GB/T9001-2000, IDT ISO 9001:2000 quality management system.

    AAA grade credit certificate issued by international credit assessment center



    Product Show:

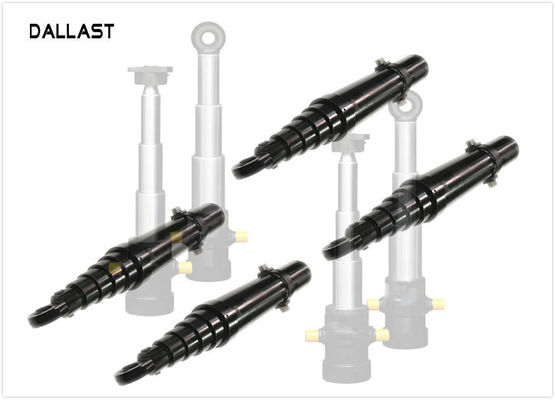

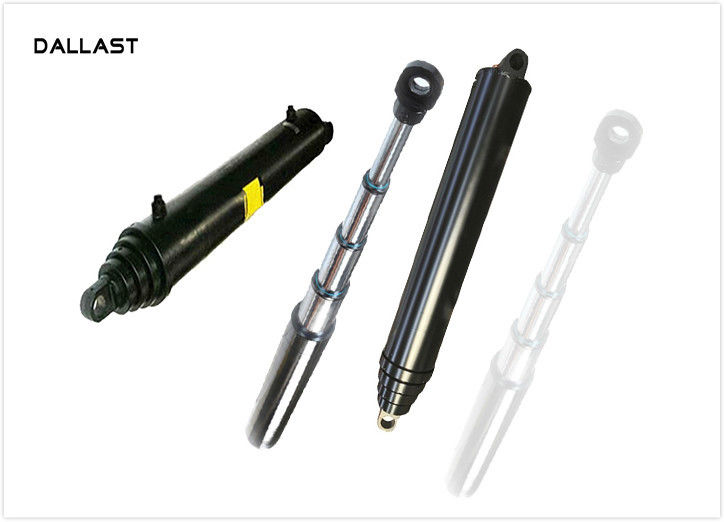

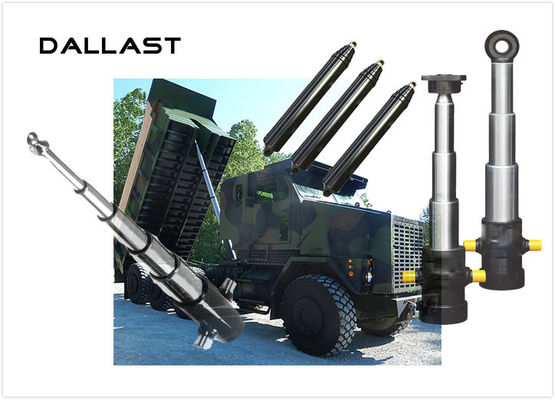

    Industrial Truck Single Acting Hydraulic Ram Telescopic Lifting Welded
