Place of Origin: | Shandong |
Brand Name: | DALLAST |
Certification: | GS CE ISO9001-2009 TS16949 |
Model Number: | Standard , Non-standard |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | shrink film, pallet, plywood case and carton box |
Delivery Time: | 20- 25 days after down payment |
Payment Terms: | T/T, L/C, Western Union,paypal |
Supply Ability: | 50000PCS per year |
Model: | Single Acting Hydraulic Cylinder | Structure: | Telescopic Sleeve Cylinder |
---|---|---|---|
Stage: | 3 4 5 Stage | Coating: | Chrome |
Capacity Lifting: | 13 - 90 Ton | Seals: | Parker / Nok / Hallite / Taiwan |
Warranty: | One Year | Stroke: | Long Stroke |
High Light: | telescopic hydraulic cylinder,elescoping hydraulic ram |

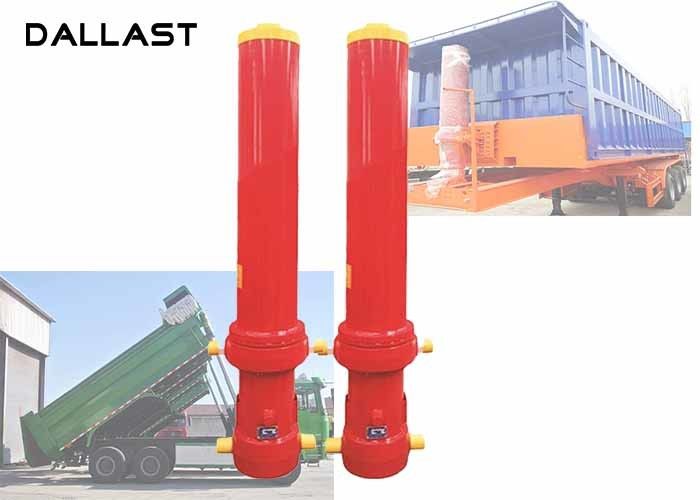

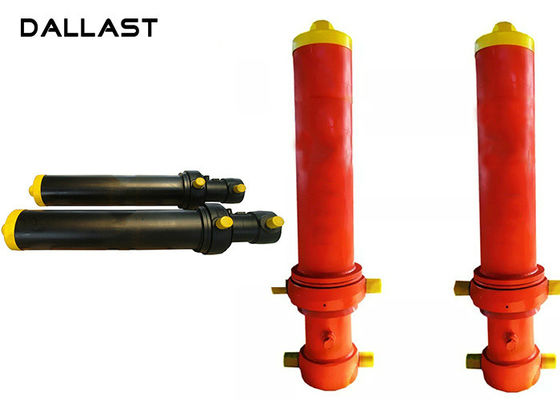

Multi stage Telescoping Dump Truck Hydraulic Ram Cylinder with ISO / Ts16949
Cylinder Advantages:
Quality control
We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.
We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:
Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.
FE Type Hydraulic Cylinder | ||||
Model | Rated pressure | Bore diameter | Stroke | Mounting distance |
(MPa) | (mm) | |||
FE-3-E158*3880 | 16 | 158/136/115 | 3880 | 1697 |
FE-3-E158*4090 | 16 | 158/136/115 | 4090 | 1732 |
FE-4-E158*4280 | 16 | 158/136/115/95 | 4280 | 1345 |
FE-4-E158*4650 | 16 | 158/136/115/95 | 4650 | 1546 |
FE-4-E158*4940 | 16 | 158/136/115/95 | 4940 | 1529 |
FE-4-F175*4280 | 20 | 175/158/136/115 | 4280 | 1345 |
FE-4-F175*4620 | 20 | 175/158/136/115 | 4620 | 1479 |
FE-4-F175*5180 | 20 | 175/158/136/115 | 5180 | 1604 |
FE-5-F175*5780 | 20 | 175/158/136/115/95 | 5780 | 1559 |
FE-5-F175*6180 | 20 | 175/158/136/115/95 | 6180 | 1505 |
FE-6-F175*6060 | 20 | 175/158/136/115/95/70 | 6060 | 1240 |
FE-5-F200*6180 | 20 | 200/175/158/136/115 | 6180 | 1527 |
FE-5-F200*6350 | 20 | 200/175/158/136/115 | 6350 | 1673 |
FE Type hydraulic cylinder | ||||
Model | Stage | Largest Stage Diameter | Stroke | Mounting distance |
(mm) | (mm) | (mm) | ||
FE-3-110-3205 | 3 | 110 | 3205 | 1449 |
FE-3-110-3460 | 3 | 110 | 3460 | 1609 |
FE-3-129-3460 | 3 | 129 | 3460 | 1449 |
FE-3-129-3880 | 3 | 129 | 3880 | 1609 |
FE-3-149-2900 | 3 | 149 | 2900 | 1320 |
FE-3-149-3200 | 3 | 149 | 3200 | 1420 |
FE-3-149-3500 | 3 | 149 | 3500 | 1520 |
FE-3-149-3880 | 3 | 149 | 3880 | 1644 |
FE-4-149-4280 | 4 | 149 | 4280 | 1450 |
FE-4-149-4940 | 4 | 149 | 4940 | 1529 |
FE-4-149-4620 | 4 | 149 | 4620 | 1484 |
FE-4-169-4280 | 4 | 169 | 4280 | 1394 |
FE-4-169-4450 | 4 | 169 | 4450 | 1437 |
FE-4-169-4620 | 4 | 169 | 4620 | 1479 |
FE-4-169-4940 | 4 | 169 | 4940 | 1529 |
FE-4-169-5000 | 4 | 169 | 5000 | 1574 |
FE-4-169-5180 | 4 | 169 | 5180 | 1604 |
FE-5-169-5355 | 5 | 169 | 5355 | 1394 |
FE-5-169-5780 | 5 | 169 | 5780 | 1559 |
FE-5-169-6180 | 5 | 169 | 6180 | 1527 |
FE-5-169-6480 | 5 | 169 | 6480 | 1604 |
FE-5-169-6830 | 5 | 169 | 6830 | 1674 |
FE-5-169-7130 | 5 | 169 | 7130 | 1769 |
FE-5-191-6180 | 5 | 191 | 6180 | 1527 |
FE-5-191-9030 | 5 | 191 | 9030 | 2177 |
FE-6-191-7420 | 6 | 191 | 7420 | 1677 |
FE-5-214-6830 | 5 | 214 | 6830 | 1662 |
FE-5-214-7130 | 5 | 214 | 7130 | 1722 |
FC Type Hydraulic Cylinder | |||||
MODEL NO. | Stage | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
(mm) | (mm) | (mm) | (mm) | ||
FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
FC-3-110-3460 | 3 | 110 | 3460 | 168 | 343 |
FC-3-129-2980 | 3 | 129 | 2980 | 218 | 343 |
FC-3-129-3205 | 3 | 129 | 3205 | 218 | 343 |
FC-3-129-3460 | 3 | 129 | 3460 | 218 | 343 |
FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
FC-4-149-3680 | 4 | 149 | 3680 | 218 | 343 |
FC-4-149-3980 | 4 | 149 | 3980 | 218 | 343 |
FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |
