Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck

Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck

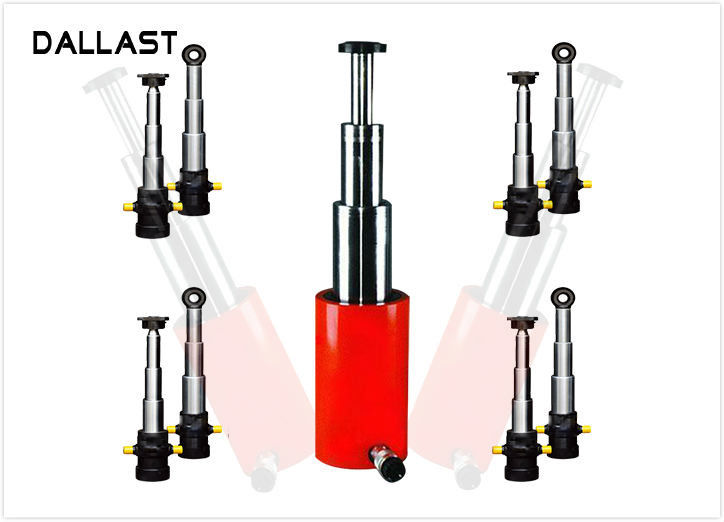

    • Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck

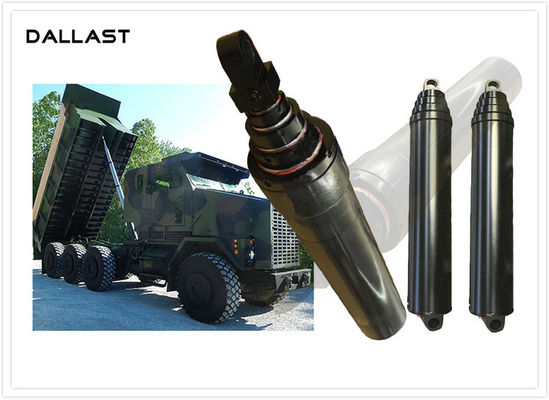

    • Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck

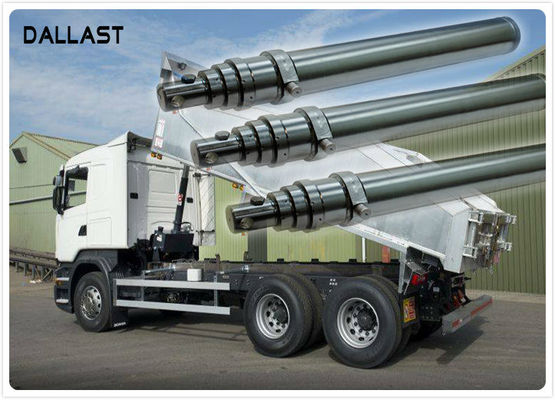

    • Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck
  • Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Origin: Shandong, China
    Material: Stainless Steel, Alloy Steel Color: Any Color
    High Light:

    single acting telescopic cylinder

    ,

    industrial hydraulic cylinders

    Single Acting Telescopic Welded Hydraulic Cylinder for Agricultural Dump Truck





    Cylinder and cylinder of the advantages and disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;
    4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
    Hydraulic cylinder hydraulic system is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.



    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    Attention:

    1. We have special departments to ensure that no strict quality control any quality problem before delivery.

    2. Carefully check goods size table and product specifications. Please check detail with customer service before buying

    3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.



    Parameter:

    Model Lifting. (T) Pressure
    (Mpa)
    Seal height
    (mm)
    Cylinder capacity
    (L)
    Suitable container length (mm) Rear overhang
    (mm)
    3TG-E152×3830 29 16 1618 59 5200-5400 800
    3TG-E152×4000 29 16 1675 62 5400-5600 800
    4TG-E152×4270 29 16 1414 58 5600-5800 800
    4TG-E152×4270 29 16 1509 63 5800-6200 800
    4TG-E152×4270 29 16 1597 67 6200-6400 800



    Profile:

    We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
    Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

    15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

    The only one super size cylinder manufactuer in China.

    Full experience in design, produce, mounting, testing, operation and maintenance.

    Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

    Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

    2000m2 synthetic office building of computer control net work center

    GB/T9001-2000, IDT ISO 9001:2000 quality management system.

    AAA grade credit certificate issued by international credit assessment center



    FAQ:

    Q1: Are you a manufacturer or a trader?
    We are manufacturer ,our own factory is located in Liaoning province,China

    Q2: How do you protect customer's right?
    DALLAST's work habit is to sign confidential agreement with own/outside factories all the time before start any project.
    DALLAST also has signed confidential agreement with all its staffs.

    Q3: How long shall we get the quotation?
    Processing time for Enquiries :1-3 days



    Product Show:
    Single Acting Telescopic Welded Hydraulic Cylinders for Agricultural Dump Truck
