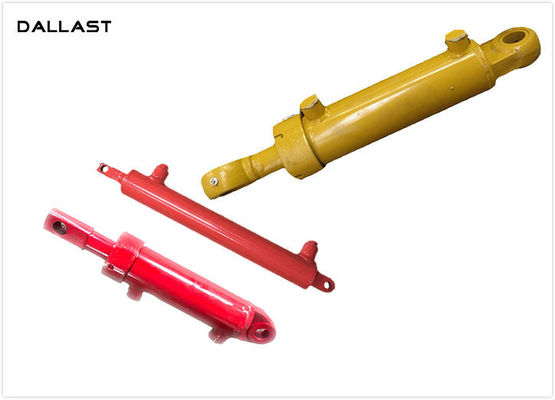

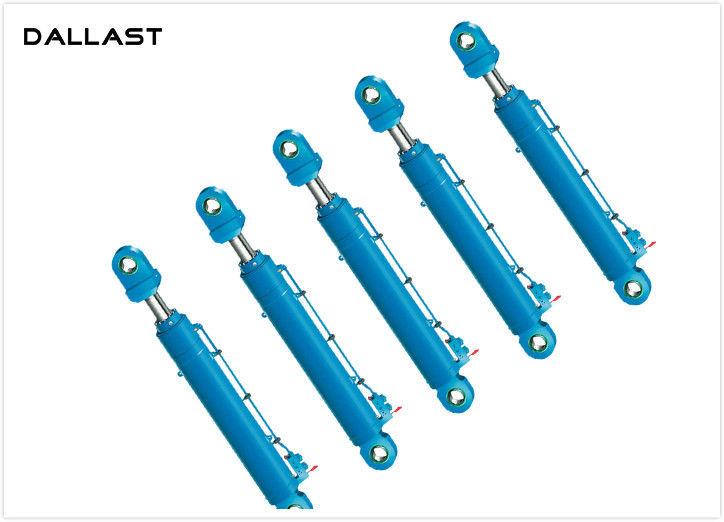

Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck

Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck

    • Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck
    • Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck
    • Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck
  • Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Origin: Shandong, China Work Temperature: Normal Temperature
    Working Pressure: 16-32 Mpa Surface Coating: Sandblasting, Primer Paint, Middle Paint, Finish
    Adjusted Form: Regulated Type Certification: Gs, RoHS, Ce, ISO9001

    Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck





    How Double Acting Hydraulic Cylinders Work and Their Uses:

    With double acting hydraulic cylinders, the fluid acts on both sides of the piston, alternating between each side. They can be attached to external devices by using a gland to prevent fluid escape. Double acting cylinders have two ends that are supplied with hydraulic fluid, which is used to retract and extend the piston.We can provide :

    Piston type hydraulic cylinder ram

    Plunger type hydraulic cylinder ram

    Telescopic type hydraulic cylinder ram

    Welded hydraulic cylinder ram

    Flange mounted hydraulic cylinder ram

    Tie rod hydraulic cylinder ram

    Double acting hydraulic cylinder ram

    Single acting hydraulic cylinder ram

    Multistage hydraulic cylinder ram

    Servo hydraulic cylinder ram



    Three advantages for hydraulic cylinder:

    1.Longer serve life.

    By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

    fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!

    2.More strong stability.

    Stability optimization design, improve the long box lifting high stability, reduce rollover risk!

    3.Lift More

    Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!



    Custom hydraulic cylinder (OEM):

    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example



    FAQ:

    Q: Do you accept OEM manufacturing?

    A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.



    Q: How long is your warranty period?

    A: We offer 12 months warranty period after on board.



    Q: Could we get small quantity samples?

    A: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.



    Q: What is your payment term?

    A: For sample payment, generally 100% T/T payment in advance, west union, paypal.

    For order payment, generally is 30% T/T in advance, 70% balance before shipment.



    Q: How do you deliver the products?

    A: --By sea

         --By plane

         --By couriers. DHL, UPS, TNT and so on.


    Parameter:

    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.

    To get an immediate quotation,please provide us with the following necessary parameters:

    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method

    Product Name Double Acting Hydraulic Cylinders
    HS Code 8412210000
    Application Dump truck,Tipper,Trailer, Excavator
    Material of cylinder tube Alloy steel,Stainless steel
    Seal Parker, Merkel, Hallite
    Coating All tubes are chrome plated
    Working pressure 10MPa-32MPa
    Stroke 3000mm-11000mm
    Color Black,Blue,Yellow,White,Red etc
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001:2008 ,SGS, TS16949
    Package Shrink film, pallet, plywood case and carton box
    Warranty 12 month
    Main export market USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore
    Payment terms T/T, L/C, West Union
    Delivery time
    15-25 days after down payment



    Product Show:

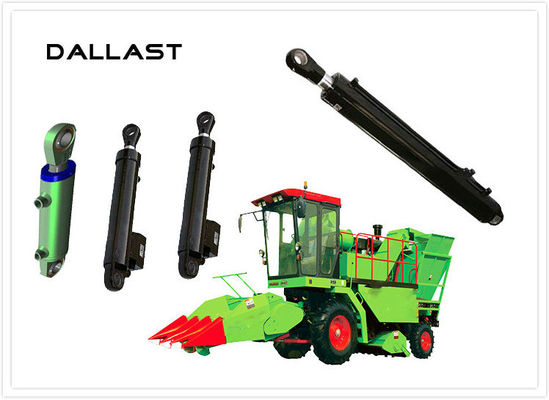

    Dual Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Dump Truck
