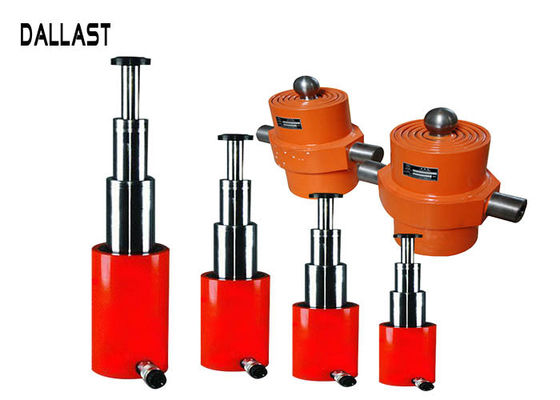

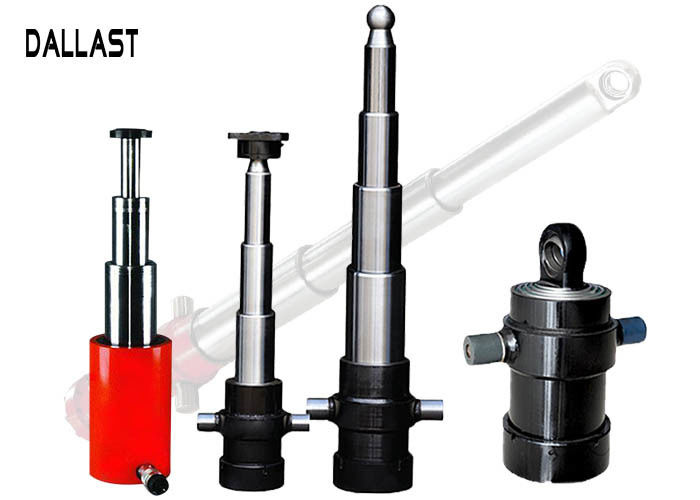

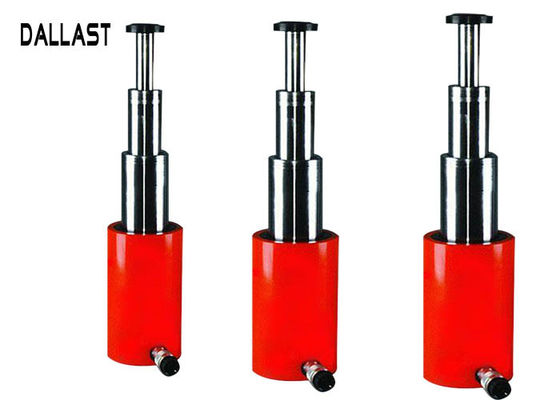

Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder

Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder

    • Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder
    • Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder
    • Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder
  • Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Power: Hydraulic Pressure Direction: Single Acting
    Pressure: 16-35MPa Temperature: Normal Or High Temperature
    Color: Any Color You Can Choose Seal Kit: Nok, Hallite, Parker Etc

    Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder

    Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.


    Features:
    a. Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    d. Single-acting cylinders transfer force and motion in one direction only.

    e. Acts on the piston to push the piston rod out.

    f. When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.

    g. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.

    h. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections. Often this length does not fit in the machine.



    Type

    Stroke
    (mm)

    Installation center distance
    (mm)

    Bore size
    (mm)

    StageCapacity
    (ton)
    Pressure
    (Bar)
    3TG-E150X850QZ850150150328.26160
    4TG-E130X800QZ800125130421.23160
    5TG-E130X800QZ800115130521.23160
    5TG-E140X800QZ800115140524.62160
    5TG-E140X1000QZ1000125140524.62160


    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.


    Warranty:
    We offer 12 months warranty.
    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.

    The most common problems when selecting a hydraulic cylinder are as follows:
    A. Retract dimension (Center of pin to center of pin)
    B. Stroke length (Inches)
    C. Mounting types
    D. Port Size and Type (SAE or NPT)
    E. Pressure rating (PSI)
    F. Bore Diameter (Inches)
    G. Application details

    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder

    Dump Trailer Hydraulic Telescopic Multi Stage Single Acting Vetical Hydraulic Cylinder
