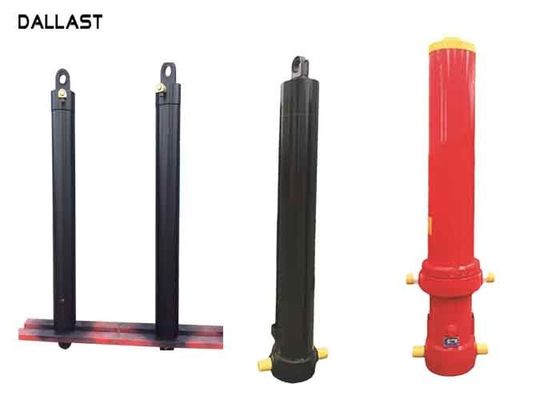

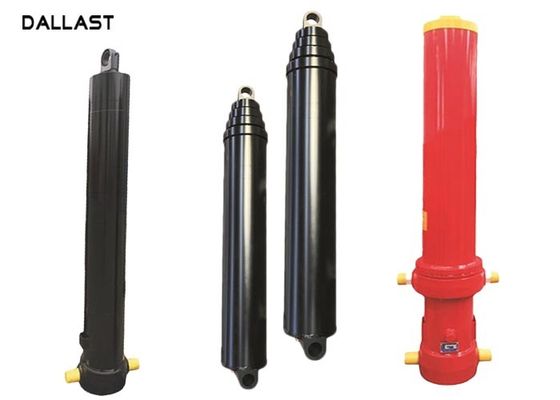

Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type

Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type

    • Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type
    • Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type
    • Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type
  • Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Seals: PARKER MOQ: 1 Set
    Warranty: One Year Hydraulic System: Multi-Stage
    Material: 27SiMn, 45#, Q345B Usage: Automation And Control
    Painting: Anti Rust Painting Payment Terms: T/T, L/C, D/P, D/A And So On

    Multi-Stage Telescopic Single Acting FE FC Hyva type Hydraulic Cylinder for Dump Truck/Trailer



    Hydraulic Cylinders :
    Our factory can make the Hydraulic Cylinders (HYVA,PARKER,etc) as per your requirements.



    Why choose us:

    1: Various style for completely series hydrauli products for you to choose
    2: High quality with competitive price
    3: Provide free products information.
    4: Reliable quality assurance and active after-sell service

    5. 100% test before shipment

    6. Short lead time

    7. Supply custom made cylinders for our customers



    Parker and Custom Hoists Kind
    Parker Model No. First Stage Diameter Stroke(A) Closed Length(B) Open Length(C)
    S53DC-66-72 3TG F5*72 5" 127 72"(1829mm) 37.19" (945mm) 109.19" (2773mm)
    S53DC-66-84 3TG F5*84 5'' 127 84" (2134mm) 41.19" (1046mm) 125.19" (3180mm)
    S53DC-65-107 3TG F5*107 5" 127 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
    S53DC-65-126 3TG F5*126 5" 127 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
    S63DC-101-86 3TG F6*86 6" 152.4 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
    S63DC-101-104 3TG F6*104 6" 152.4 103.94" (2640mm) 47" (1194mm) 150.94" (3834mm)
    S63DC-101-107 3TG F6*107 6" 152.4 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
    S63DC-97-111 3TG F6*111 6'' 152.4 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm)
    S63DC-102-120 3TG F6*120 6'' 152.4 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm)
    S63DC-97-123 3TG F6*123 6'' 152.4 123" (3124mm) 54.94" (1395mm) 177.94" (4519mm)
    S63DC-102-126 3TG F6*126 6'' 152.4 126.31"(3208mm) 54.56" (1386mm) 180.87" (4594mm)
    S63DC-101-140 3TG F6*140 6'' 152.4 140.25" (3562mm) 59.81" (1519mm) 200.06" (5081mm)
    S64DC-12-135 4TG F6*135 6'' 152.4 135" (3429mm) 47.19" (1199mm) 182.19" (4628mm)
    S64DC-14-156 4TG F6*156 6'' 152.4 156" (3962mm) 53.62" (1362mm) 209.62" (5324mm)
    S73DC-66-110 3TG F7*110 7" 177.8 110.63" (2810mm) 50.06" (1271mm) 160.69" (4081mm)
    S73DC-66-120 3TG F7*120 7" 177.8 120" (3048mm) 53.12" (1349mm) 173.12" (4397mm)
    S73DC-66-124 3TG F7*124 7" 177.8 124.88" (3172mm) 54.81" (1392mm) 179.69" (4564mm)
    S73DC-66-129 3TG F7*129 7" 177.8 129" (3277mm) 56.5" (1435mm) 185.5" (4712mm)
    S73DC-66-140 3TG F7*140 7" 177.8 140.44" (3567mm) 60" (1524mm) 200.44" (5091mm)
    S73DC-66-150 3TG F7*150 7" 177.8 150" (3810mm) 63.50" (1613mm) 213.50" (5423mm)
    S74DC-74-120 4TG F7*120 7" 177.8 120" (3048mm) 44.12" (1120mm) 164.12" (4168mm)
    S74DC-74-135 4TG F7*135 7" 177.8 135" (3429mm) 48.43" (1230mm) 183.44" (4659mm)
    S74DC-74-140 4TG F7*140 7" 177.8 140" (3556mm) 49.75" (1263mm) 189.75" (4819mm)
    S74DC-74-156 4TG F7*156 7" 177.8 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm)
    S74DC-74-161 4TG F7*161 7" 177.8 161.75" (4108mm) 55.31" (1405) 217.06" (5513mm)
    S74DC-74-167 4TG F7*167 7" 177.8 167" (4242mm) 56.38" (1432mm) 223.38" (5674mm)
    S74DC-74-180 4TG F7*180 7" 177.8 180" (4572mm) 61.12" (1552mm) 241.12" (6124mm)
    S84DC-66-148 4TG F8*148 8" 203.2 147.75" (3753mm) 51.50" (1308mm) 199.25" (5061mm)
    S84DC-66-156 4TG F8*156 8" 203.2 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm)
    S84DC-66-161 4TG F8*161 8" 203.2 160" (4064mm) 55.75" (1416mm) 215.75" (5480mm)
    S84DC-66-170 4TG F8*170 8" 203.2 170" (4318mm) 57.25" (1454mm) 227.25" (5481mm)
    S84DC-66-180 4TG F8*180 8" 203.2 180" (4572mm) 59.75" (1518mm) 239.75" (6090mm)
    S85DC-66-170 5TG F8*170 8" 203.2 170" (4318mm) 49.88" (1267mm) 219.88" (5585mm)
    S85DC-66-190 5TG F8*190 8" 203.2 189" (4800mm) 54.62" (1387mm) 243.62" (6188mm)
    S85DC-66-220 5TG F8*220 8" 203.2 220" (5588mm) 60" (1524mm) 280" (7112mm)
    S85DC-66-235 5TG F8*235 8" 203.2 234" (5944mm) 64.62" (1641mm) 298.62" (7585mm)
    S85DC-66-250 5TG F8*250 8" 203.2 249" (6325mm) 68.62" (1743mm) 317.62" (8068mm)
    S85DC-66-265 5TG F8*265 8" 203.2 265" (6731mm) 71" (1803mm) 336" (8534mm)
    S85DC-66-285 5TG F8*285 8" 203.2 285" (7239mm) 78.5" (1994mm) 363.5" (9233mm)
    S95DC-52-220 5TG F9*220 9" 228.6 218" (5537mm) 62.44" (1586mm) 280.44" (7123mm)
    S95DC-52-235 5TG F9*235 9" 228.6 233" (5918mm) 65.44" (1662mm) 298.44" (7580mm)
    S95DC-52-250 5TG F9*250 9" 228.6 248" (6299mm) 68.44" (1738mm) 316.44" (8037mm)
    S95DC-52-265 5TG F9*265 9" 228.6 265" (6731mm) 72.62" (1844mm) 337.62" (8575mm)
    S95DC-52-280 5TG F9*280 9" 228.6 280" (7112mm) 72.62" (1997mm) 358.62" (9109mm)
    S95DC-52-300 5TG F9*300 9" 228.6 300" (7620mm) 79" (2007mm) 379" (9627mm)
    S95DC-52-320 5TG F9*320 9" 228.6 320" (8128mm) 83" (2108mm) 403" (9628mm)
    S95DC-52-340 5TG F9*340 9" 228.6 340" (8636mm) 87" (2210mm) 427" (10846mm)



    FE Type Hydraulic Cylinder
    Model Lifting capacity Rated pressure Bore diameter
    (Ton) (MPa) (mm)
    FE-3-E158*3880 28.3 16 158/136/115
    FE-3-E158*4090 28.3 16 158/136/115
    FE-4-E158*4280 28.3 16 158/136/115/95
    FE-4-E158*4650 28.3 16 158/136/115/95
    FE-4-E158*4940 28.3 16 158/136/115/95
    FE-4-F175*4280 49 20 175/158/136/115
    FE-4-F175*4620 49 20 175/158/136/115
    FE-4-F175*5180 49 20 175/158/136/115
    FE-5-F175*5780 49 20 175/158/136/115/95
    FE-5-F175*6180 49 20 175/158/136/115/95
    FE-6-F175*6060 49 20 175/158/136/115/95/70
    FE-6-F175*6060 49 20 175/158/136/115/95/70
    FE-5-F200*6180 64 20 200/175/158/136/115
    FE-5-F200*6350 64 20 200/175/158/136/115



    FC type hydraulic cylinder
    MODEL NO. Stage First Stage Diameter mm Stroke  mm Largest Sleeve OD mm

    Closed length

    mm

    Mounting distance mm
    FC-3-107-2855 3 107 2855 152 1268 311
    FC-3-107-3115 3 107 3115 152 1368 311
    FC-3-107-3265 3 107 3265 152 1418 311
    FC-3-107-3415 3 107 3415 152 1468 311
    FC-3-107-3715 3 107 3715 152 1568 311
    FC-3-126-3230 3 126 3230 219 1403 343
    FC-3-126-3680 3 126 3680 219 1553 343
    FC-3-126-3830 3 126 3830 219 1603 343
    FC-3-126-4400 3 126 4400 219 1803 343
    FC-4-126-4145 4 126 4145 219 1357 343
    FC-4-126-4345 4 126 4345 219 1407 343
    FC-4-126-4545 4 126 4545 219 1457 343
    FC-4-126-4745 4 126 4745 219 1507 343
    FC-4-126-4945 4 126 4945 219 1557 343
    FC-4-126-5145 4 126 5145 219 1607 343
    FC-3-145-3230 3 145 3230 219 1403 343
    FC-3-145-3680 3 145 3680 219 1553 343
    FC-3-145-3830 3 145 3830 219 1603 343
    FC-4-145-4110 4 145 4110 219 1357 343
    FC-4-145-4310 4 145 4310 219 1407 343
    FC-4-145-4510 4 145 4510 219 1457 343
    FC-4-145-4710 4 145 4710 219 1507 343
    FC-4-145-4910 4 145 4910 219 1557 343
    FC-4-145-5110 4 145 5110 219 1607 343
    FC-4-145-5310 4 145 5310 219 1657 343
    FC-4-145-5865 4 145 5865 219 1807 343
    FC-5-145-4310 5 145 4310 219 1161 343
    FC-4-165-4110 4 165 4110 244 1347 343



    Multi Stage Dump Trailer Hydraulic Cylinder Telescopic Single Acting FE FC Hyva Type
