| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Place Of Origin: | Shandong | Pressure: | 220bar |
|---|---|---|---|
| Piston: | High Grade And Precisely Machined Ductile Iron | Body Material: | Stainless Steel |
| Certificate: | ISO9001:2008 | Rod Seal: | Polyurethane U-Cup |
| High Light: | single acting telescopic cylinder,industrial hydraulic cylinders |
||

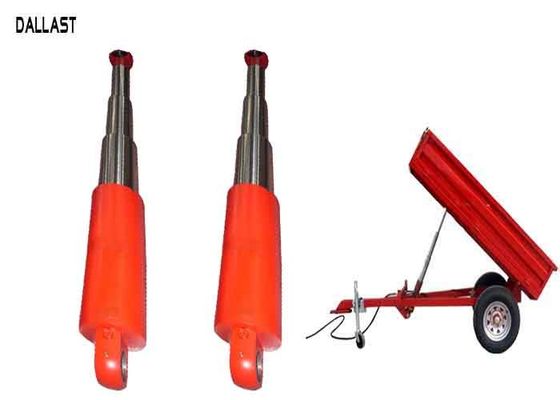

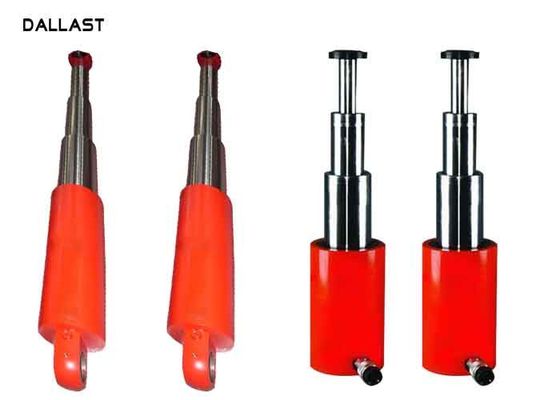

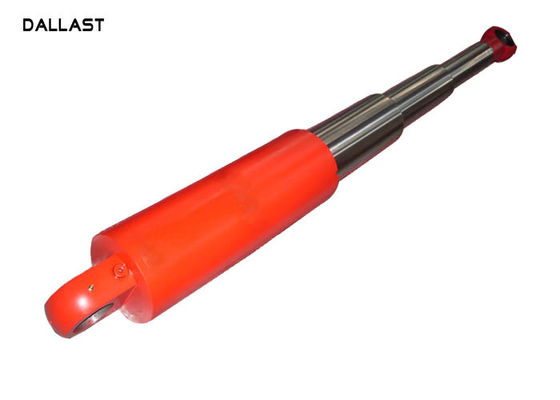

Single Acting Sleeve Telescopic Type Hydraulic Oil Ram for Dump Truck Unload Trailers
| TG series of telescopic sleeve hydraulic cylinder single action plunger type multistage cylinder vehicle, is a vechicle compartment in the lifting cylinder through the ball head hinge, hinge shaft and other connection earrings, mainly used for unloading and unloading trailers and semitrailers to the three side discharge, after the derivaties of QTG series multitage; hydraulic cylinder for dump trailer system, environmental clean car, can also be used for other hydraulic device. | |
| Application | dump truck for engineering machinery, small vehicals |
| Material of cylinder tube | steel, stainless steel, alloy steel, carbon steel and 27SIMN |
| Coating | All tubes are chrome plated |
| Working pressure | 12MPa-36MPa |
| Bore size | 40mm-800mm |
| Color | Any color, if you needed |
| Mounting Type | Earring-tunnion, double tunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001:2008, SGS, TS16949 |
| Warranty | One year |
| Working temperature | -30° C to 80°C |
| Model No | could be designed |
| Stroke | 500-1500mm |
| Package | Shrink film, pallet, plywood case, carton box |
| Main export market | USA, Canada, South Korea, Russia, Australia, Malaysia, Fiji Island, Kenya, Philippines, Singapore |
| payment terms | T/T, L/C, D/A, D/P AND SO ON |
| Delivery time | 30 days after down payment |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker, Hyva |
Any types of Machinery Model could be designed according to your requirement.
If you're interested in our products, please contact with us. Or send us your drawings and the main parameters:
1. bore size
2. stroke length
3. rod diameter
4. mounting type
5. mounting length
6. paint color requirement
B. the pruduction application description details
1. type of machine (loader, steer loader, excavator and ect.)
2. type of function (hoist, swing, steering, and ect.)
3. type of struction (piston, telescopic)
4. single or double acting
5. operating pressure
|
Working pressure: 16Mpa |
Model |
Bore diameter mm |
Installation distance mm |
Lift ton |
Stroke mm |
| 4TG-E180*800 | 180 | 140 | 40 | 800 | |
| 4TG-E160*800 | 160 | 140 | 32 | 800 | |
| 4TG-E150*830 | 150 | 160 | 28 | 830 | |
| 4TG-E140*800 | 140 | 140 | 25 | 800 | |
| 4TG-E140*730 | 140 | 140 | 25 | 730 | |
| 4TG-E135*800 | 135 | 140 | 23 | 800 | |
| 4TG-E135*730 | 135 | 140 | 23 | 730 | |
| 4TG-E130*750 | 130 | 110 | 21 | 750 | |
| 3TG-E150*800 | 150 | 140 | 28 | 800 | |
| 5TG-E130*750 | 130 | 140 | 21 | 750 | |
| 3TG-E130*900 | 130 | 140 | 21 | 900 | |
| 4TG-E110*1360 | 110 | 140 | 15 | 1360 | |
| 3TG-E110*1530 | 110 | 140 | 15 | 1530 | |
| 3TG-E110*1350 | 110 | 140 | 15 | 1350 | |
| 3TG-E110*1020 | 110 | 140 | 15 | 1020 | |
| 3TG-E110*900 | 110 | 260 | 15 | 900 | |
| 2TG-E110*1020 | 110 | 140 | 15 | 1020 | |
| 3TG-E90*1155 | 90 | 140 | 10 | 1155 | |
| 3TG-E90*1020 | 90 | 140 | 10 | 1020 | |
| 3TG-E90*900 | 90 | 260 | 10 | 900 | |
| 3TG-E90*750 | 90 | 140 | 10 | 750 | |
| 2TG-E90*900 | 90 | 140 | 10 | 900 | |
| 2TG-E90*600 | 90 | 260 | 10 | 600 | |
| 2TG-E90*500 | 90 | 260 | 10 | 500 | |
| 3TG-E70*750 | 70 | 140 | 6 | 750 |
FAQ
1. Do your products come with a warranty?
Yes, we have one-year warranty period during which we can send you replacementfree of charge if there is quality problem.
2 Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send your specifications and drawings.
3. Can you give me a discount?
Discount is available according to different conditions. The larger the order, the more discount you can enjoy.
4. Can you help me to install or give me advice about what kind of hydraulic cylinder?
or power pack should I use for specific machine?
Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products
