Home ProductsSingle Acting Hydraulic Ram

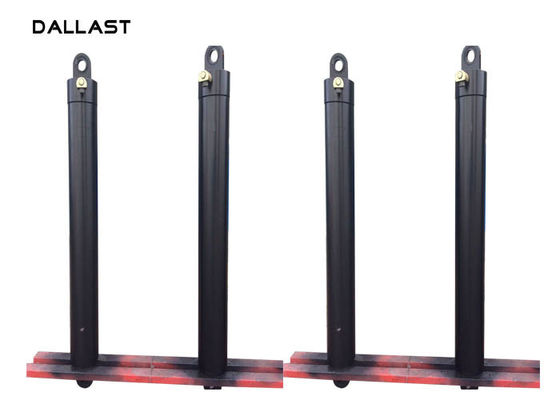

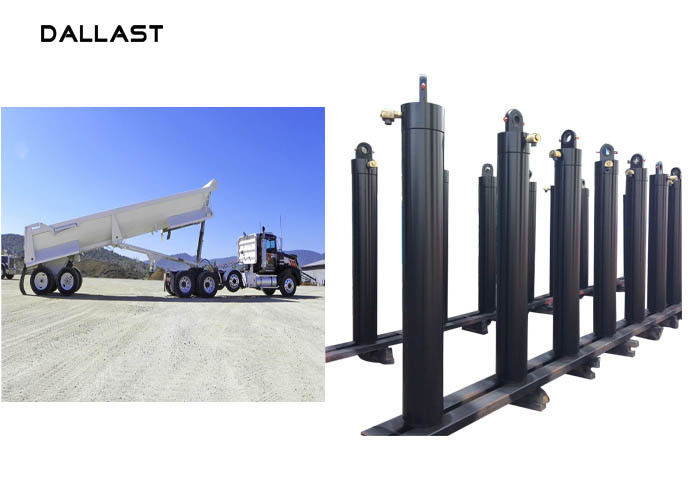

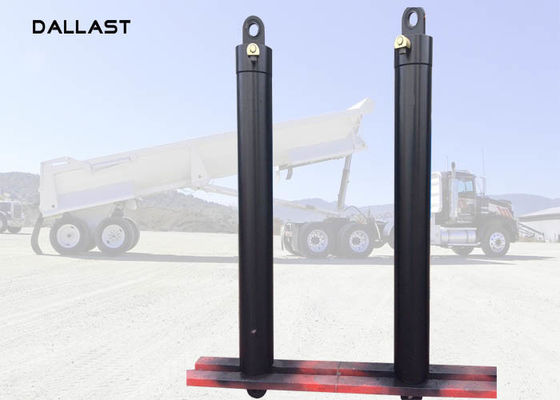

Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck

Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck

    • Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck
    • Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck
    • Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck
  • Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Color: Any Color Seals: Hallite, NOK
    Working Temperature: -30℃-80℃ Warranty: 14months From Production Time
    MOQ: 1PCS Painting: Anti Rust Painting
    Delivery Time: 20 Day Maximum Stroke: 220"/ 5580mm
    High Light:

    single acting telescopic cylinder

    ,

    industrial hydraulic cylinders

    Single Acting Long Stroke Hydraulic Telescopic Hydraulic Ram for Lifting Dump Truck



    Model Stroke mm

    Mounting Distance

    mm

    Closed length mm

    Top eye Diamether

    mm

    Top eye Width mm
    DALLAST 3TG-107-2055 2055 1054 1110 50.8 42
    DALLAST 3TG-107-2175 2175 1104 1160 50.8 42
    DALLAST 3TG-107-2715 2715 1304 1360 50.8 42
    DALLAST 3TG-126-2175 2175 1129 1185 50.8 42
    DALLAST 3TG-126-2715 2715 1329 1385 50.8 42
    DALLAST 3TG-126-3240 3240 1479 1535 50.8 42
    DALLAST 3TG-126-3840 3840 1679 1735 50.8 42
    DALLAST 3TG-145-2715 2715 1304 1360 50.8 42
    DALLAST 3TG-145-3240 3240 1454 1510 50.8 42
    DALLAST 3TG-145-3390 3390 1504 1560 50.8 42
    DALLAST 3TG-145-3840 3840 1654 1710 50.8 42
    DALLAST 4TG-145-3620 3620 1308 1364 50.8 42
    DALLAST 4TG-145-4320 4320 1458 1514 50.8 42
    DALLAST 4TG-165-3920 3920 1358 1414 50.8 42
    DALLAST 4TG-165-4320 4320 1458 1514 50.8 42
    DALLAST 4TG-165-4520 4520 1508 1564 50.8 42
    DALLAST 5TG-165-4525 4525 1312 1368 50.8 42
    DALLAST 5TG-165-5650 5650 1512 1568 50.8 42
    DALLAST 5TG-165-6150 6150 1612 1668 50.8 42
    DALLAST 5TG-187-5400 5400 1462 1518 50.8 42
    DALLAST 5TG-187-5650 5650 1512 1568 50.8 42
    DALLAST 5TG-187-5900 5900 1562 1618 50.8 42
    DALLAST 5TG-187-6150 6150 1612 1668 50.8 42
    DALLAST 5TG-187-6900 6900 1762 1818 50.8 42
    DALLAST 5TG-210-5650 5650 1537 1593 50.8 52
    DALLAST 5TG-210-6400 6400 1687 1743 50.8 52
    DALLAST 5TG-210-6800 6800 1787 1843 50.8 52
    DALLAST Also can OEM/ODM hydraulic cylinder



    Why choose DALLAST:

    A. Various style for completely series hydrauli products for you to choose

    B. High quality with competitive price
    C. Provide free products information.
    D. Reliable quality assurance and active after-sell service.

    E. 100% test before shipment

    F. Short lead time

    G. Supply custom made cylinders for our customers





    Product Advantage

    TG is a single-acting hydraulic cylinder multi-section telescopic lifting cylinder sleeve. It has small size, stroke length and other characteristics and mainly used for hydraulic systems of engineering and Dump truck.



    The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlets are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.



    FAQ:
    1: Have you been exported high pressure hydraulic cylinder to overseas?
    We have been exporting agriculture hydraulic cylinder to USA, Canada, Germany, Italy, France, Russia, etc.



    2: How long does it take to process orders?

    It usually takes 20-30 days to process.



    3: Can I order high pressure hydraulic cylinder samples for testing?
    Of course, our high pressure hydraulic cylinder quality will satisfy you.



    4: high pressure hydraulic cylinder Quality control
    All the high pressure hydraulic cylinder is calibrated with real working condition, and tested before shipping as qualified product.



    5: How long is your warranty period?
    We offer 12 months warranty period after on board.



    6: Lifetime service
    Any problem happened to our high pressure hydraulic cylinder, we will do our best to help client to solve it







    Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck



    Durable Single Acting Telescopic Hydraulic Cylinders Long Stroke Lifting Dump Truck
