Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material

Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material

    • Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material
    • Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material
    • Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material
  • Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Adjusted Form: Regulated Type Certification: Gs, RoHS, Ce, ISO9001
    Material: Stainless Steel, Alloy Steel Available Temperature: -40℃ To 80℃
    Standard: Standard, Nonstandard Hardness: HRC 45-55
    Power: Hydraulic Usage: Automation And Control

    Piston Cylinders for Agricultural Truck dual action hydraulic cylinder​




    Description:



    Double-acting , hydraulic return
    Safety valve built-in prevents damage in case of accidental over-pressurization
    Unique bearing design withstands side load forces up to 10% of rated cylinder capacity without scoring
    Dismountable hardened grooved saddles are standard
    Baking varnished external coating and specially plated piston
    Base mounting holes are standard on each model
    Plunger wiper reduces contamination, extending cylinder life

    Custom Order Notice:
    We have more items for this Series,please Contact usfor details.

    Capacity 50 - 1000 ton
    Stroke 50 - 10000 mm
    Max. Working Pressure 900 bar


    Energy has manufactured high quality hydraulic tie rod cylinders for over 40 years. These are built tough for agricultural, industrial, and mobile applications. Energy's current high pressure tie rod hydraulic cylinder line has a 3,250 psig (225 bar) working pressure capability; significantly higher than most competitors. These quality cylinders are made from durable materials that help them to withstand conditions that would damage many other cylinders. They are offered in both ASAE standard models and a wide variety of custom stroke lengths.


    Custom hydraulic cylinder (OEM):


    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example

    FAQ:




    Piston Cylinders for Agricultural Truck dual action hydraulic cylinder​



    Sealing system Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film.
    Cylinder Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness.
    Tube

    1.Tubes are quenched and tempered.

    2.Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.

    Piston rod based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life.
    Buffer / Safety Functions Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown.
    Price Good quality yet lower price.

    Quality control

    · All specification is designed by professional engineer

    · All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.

    · All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose

    · Ensure goods can arrive at customer safely

    · One-year warranty and life long time follow up service is offered to solve any problems you met when use our products



    Parameter:


    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
    To get an immediate quotation,please provide us with the following necessary parameters:
    1) Bore diameter
    2) Piston rod diameter
    3) Stroke length
    4) Working pressure
    5) Mounting method


    Mounting position Optional
    Bore size Several bore sizes and in varying strokes; Many of these sizes are available
    Stroke depend on the application
    Operating pressures

    Nominal pressure:25 MPa (250 bar 3625 psi)
    Static test pressure: 37 MPa (370 bar 5440 psi)
    Cylinders are designed for normal or high pressure

    Operating temperature -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.
    Hydraulic fluid Custom
    Rod diameter Larger diameters vary between 50,000 and 75,000 PSI minimum yield material
    Rod material All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available.
    Seal Parker/Nok/Hallite etc.

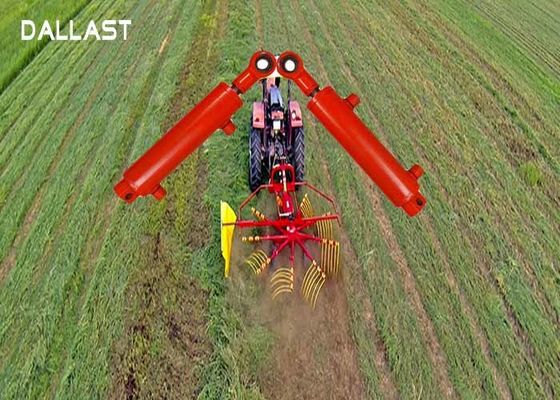

    The product can be used on agricultural handling equipment ,such as agricultural tractors, Agricultrual farm Truck, agricultural carriage car, agricultural fork lift truck.

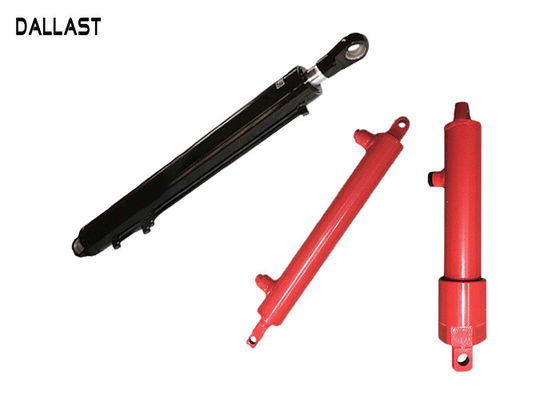

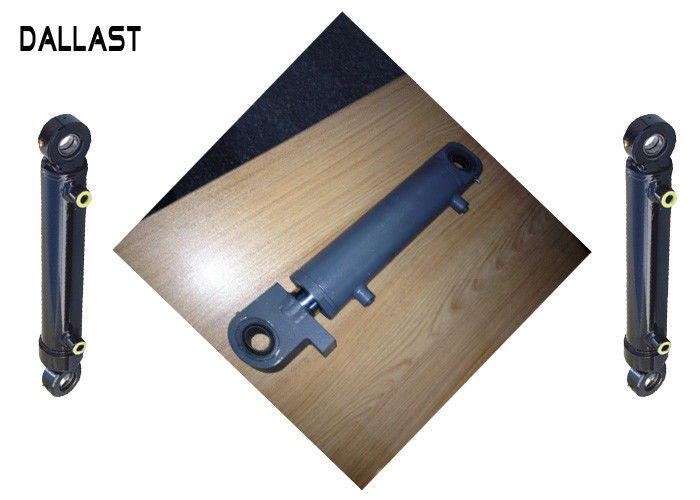

    Product Show:

    Agricultural Truck Farm Hydraulic Cylinders Dual Action Stainless / Alloy Steel Material
