| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Standard: | Standard | Type: | Hydraulic Single Cylinder |
|---|---|---|---|
| Place Of Origin: | Shandong China | HS Code: | 8412210000 |
| Delivery Time: | 15-25 Days | MOQ: | 1 Set |
| Maximum Stroke: | 10000mm | Installation Distance: | 550-1500mm |
| High Light: | dump truck hydraulic ram,dump truck hydraulic cylinder |
||

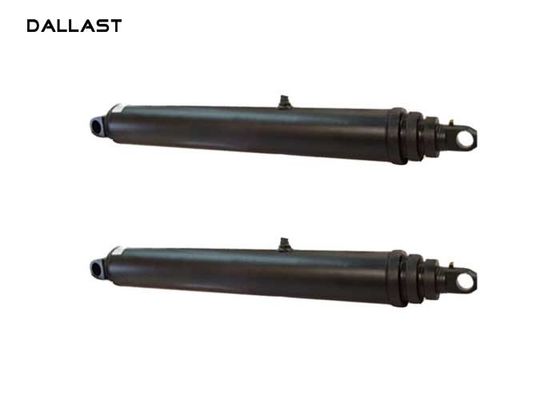

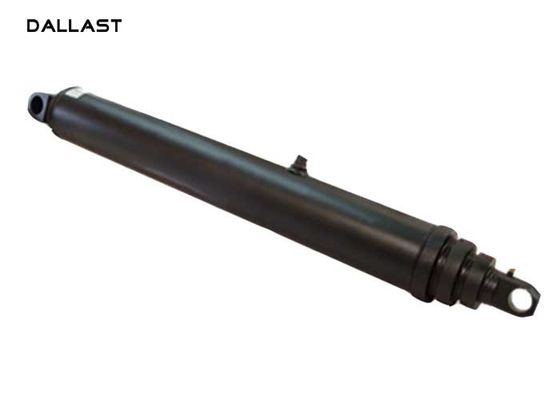

Custom 3/5 Stage Parker Type Dump Trailer Telescopic Hydraulic Cylinder
Thin-wall cylinder
1. The North America advanced processing technology is adopted to ensure the stable performance
2. High quality alloy seamless steel pipe is adopted to keep big liftin capacity and light weight;
3. The application of imperial sized makes it easy to replace the seals and other accessories;
4. Superior chrome-plating technology improves the corrosion resistance and hardness of cylinders;
5. The world-famous brands of seals such as HALLITE, PARKER and NOK ensure the sealing performance.
Product Process
1. Electroplating production process fulfills the functional and ornamental requirements for coating workpieces of different dimensions according to specific application requirements.
2. Cleaning all the parts by automatic cleaning machine in the special solution and under specification temperature control effectively.
3. All the parts are assembled into complete cylinders according to the strict assembly instructions by skillful workers in dust-free workshop.
4. Do proof pressure and performance tests to check whether the cylinders can operate smoothly and stably under the specified pressure with no leakage and deformation.
5. Do the painting including high quality primer and topcoat to obtain beautiful appearance and protect the cylinders against the anticorrosion.
6. Wooden pallet or boxes packing with plastic films wrapped on the surface, suitable for long-time sea transport.
Quality Control:
>All specification is designed by professional engineer.
>All material is high quality-Seal kits were purchased from USA, Japan, UK and Sweden.
>All material is processed by skilled workers and advanced CNC lathe
>All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
>Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
>One-year warranty and longtime track service is offered to solve any problems you meet after sale.
Specifications:
| NO | Model | Extended Stages | Working Pressure | Max. Rod Diameter | Max. Stroke Length | Lifting Capacity | FC Price (USD) | Suitable Length of Truck Body |
| 1 | 129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton | 1110 | 5.2m |
| 2 | 149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton | 1293 | 5.2m |
| 3 | 149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton | 1293 | 5.6m |
| 4 | 149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton | 1293 | 5.2m |
| 5 | 149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton | 1293 | 5.6m |
| 6 | 169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton | 1400 | 5.2-5.6m |
| 7 | 169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton | 1495 | 5.6-6.1m |
| 8 | 169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton | 1585 | 6.2-6.8m |
| 9 | 169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton | 1630 | 6.2-6.9m |
| 10 | 169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton | 1675 | 6.2-6.9 |
| 11 | 169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton | 1695 | 6.5-7.3 |
| 12 | 185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton | 1295 | 5.6m |
| 13 | 185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton | 1385 | 5.6-6.1m |
| 14 | 185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton | 1475 | 6.2-6.5m |
| 15 | 185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton | 1570 | 6.2-6.8m |
| 16 | 185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton | 1461 | 6.5-7.3m |
| 17 | 185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton | 1610 | 6.9-7.7m |
| 18 | 185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton | 1755 | 7.3-8.2m |
| 19 | 191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton | 2125 | 6.9-7.7m |
| 20 | 191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton | 2270 | 7.3-8.2m |
| 21 | 191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton | 2640 | 7.8-8.5m |
| 22 | 191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton | 3380 | 10-11m |
| 23 | 220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton | 3420 | 7.8-8.5m |
| 24 | 220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton | 4435 | 10-11m |
FAQ:
1: Are you a manufacture or a trade company?
A: Manufacture, we are the leader manufacturer of hydraulic industry in China with 22 years' experience and technology accumulation. With strong technical team we could solve any annoyance of you.
2: Do you have quality control system?
A: Yes, the quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.
3: How can i get a booklet and buy a cylinder from you?
A: Extremely easy! Just leave me a message or email or call me directly, let me know you are interesting in our products. I will talk with you for the details soon!
4: Can you tell me the price for the cylinder?
A: 1. Please advise the drawing with technical requirement.
2. Please advise the model No. after you check our booklet.
3. Please advise the tipping capacity, number of stages, closed length, mounting type and size.
4. Please also help advice the quantities, this is especially important.
5: Do your products come with a warranty?
A: Yes, we have one year warranty. In this year, if the quality problem we will free repair for you.
