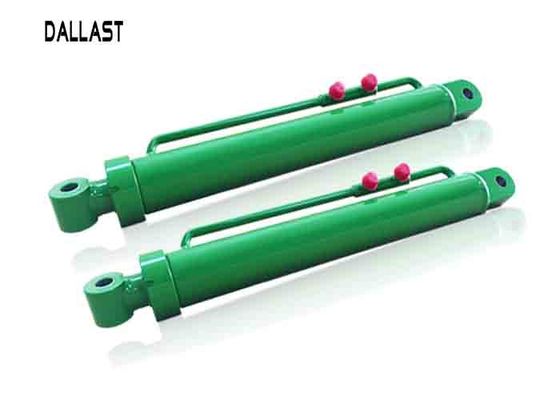

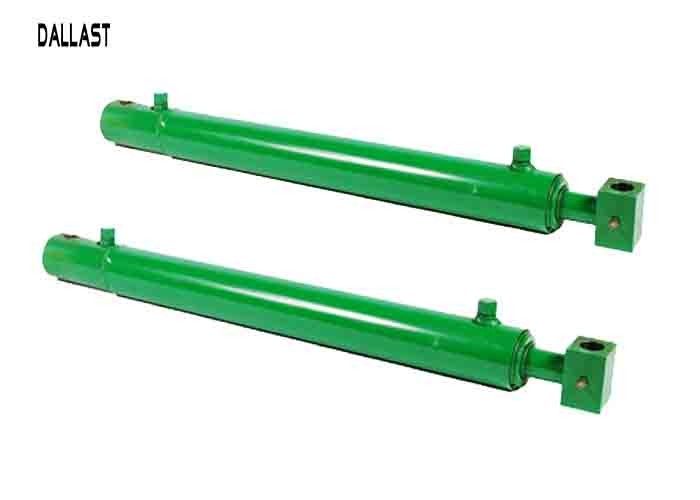

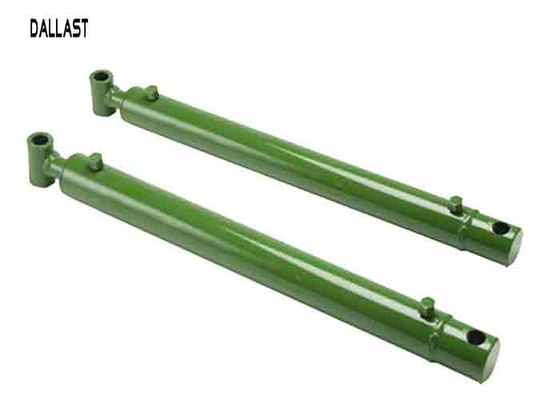

Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM

Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM

    • Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM
    • Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM
    • Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM
  • Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Or High Temperature Pressure: 500-3000 PSI
    Piston: High Grade Ductile Iron Piston Seal: Urethane Seal, Hyva, Parker Etc.
    Painted: Semi-gloss Black, Gray, Red Etc. Material: 20#, Steel, Or Custom

    Farm Loader Parts Hydraulic Cylinders Piston Double Acting Chrome Painted Rod OEM



    1-3/4" thick shafts help avoid bending during back dragging. This kit includes 2 shafts, as both bucket cylinder shafts need to be swapped out due to the increased thickness.



    Benefits:



    Packing: Goods are packed with export standing standard

    Warranty: We offer 12 months warranty



    Good quality and low noise

    The oil way design perfectly and can save the energy,avoid wast

    Many mounting styles

    Several bore sizes and in varying strokes

    Many of these sizes are available



    Farm Cylinders by Loader
     type

    operating pressure

    (Bar)

    diameter of rod(mm)

    total stroke

    (mm)

    closed length

    (mm)

    cylinder bore (mm)
    HSG80/50*190-800 160 80 190 800 80
    HSG80/50*210-510 230 80 210 510 75
    HSG70/30*760-1055 340 70 760 1055 75
    HSG40/22*270-495 210 40 270 495 100
    HSG50/25*150-800 203 50 150 800 90
    HSG63/35*500-780 109 63 500 780 110
    operating temperature -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen
    speed range speed range of operation (excluding cushion parts) is less than 200mm/s
    piston rod stainless steel, alloy steel, carbon steel etc.
    end cap casting seal
    rod wiper urethane snap in



    Tips:

    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Installation method:

    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Delivery:

    1.We export from Qingdao port by sea.

    2. Goods will be delivered on time.

    3. Goods can arrive at the destination safely.



    Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM

    Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM

    Farm Loader Parts Piston Double Acting Hydraulic Ram Chrome Painted Rod OEM
