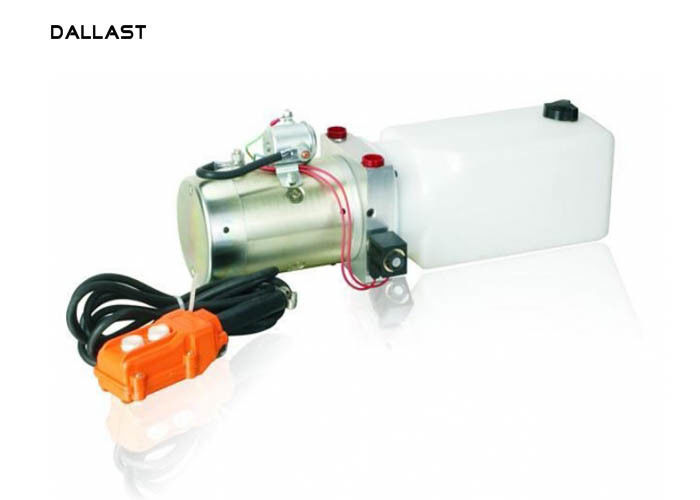

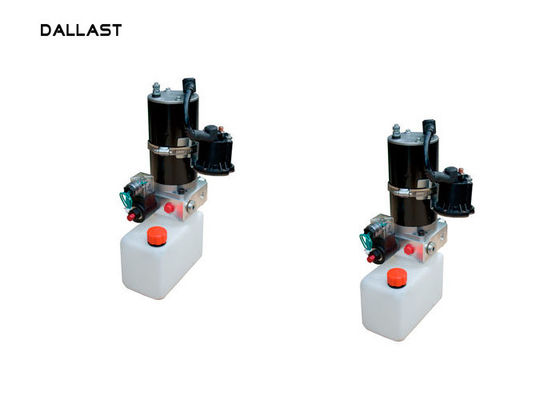

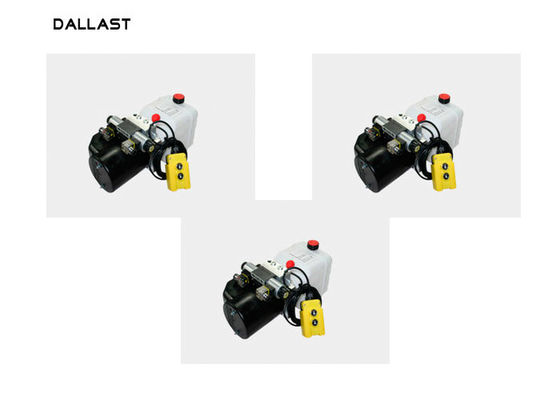

Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank

Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank

    • Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank
    • Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank
    • Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank
  • Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Hydraulic Power Pack Pump: Vane Pump Hydraulic Power Pack Color: As Your Opinion
    Pump Type/Output Type: Triple Output Motor Pump Driving Power: 2.6 Kw
    Mount Type: Vertical And Horizontal Hydraulic Valve: High Quality Imported Brand

    Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank

    Hydraulic power unit’s hydraulic unit hydraulic station hydraulic pump station hydraulic station. hydraulic power station hydraulic power stations, hydraulic power unit, hydraulic pump hydraulic power unit hydraulic power units Olivetti pr2 plus power supply unit united power generator parts   united power generator parts power supply unit aircraft ground power unit hydraulic power pack unit
     Hydraulics Parts
    - Hydraulic Pump Gear, Vane, Piston
    - Hydraulic Valves Directional Control (all types 3-Way/2-Position, 4-Way/4-Position, 4-Way/3-Position all center and sizes as Solenoid and Manual Operated, etc.)
    - Relief Valve In-line, Modular and Cartridge ones. All sizes Cutup.
    - Flow Control Valve In-line, Modular and Cartridge ones. All sizes Cutup.
    - Suction Filter Strainer
    - Pressure Filter.
    - Flexible Couplings.
    - Pump/Motor Belt Housing.
    - Sight Level and Tempura Gauge.
    - Pressure Gauge.
    - Breather Filter Cap and Strainer

    Features:
    Hydraulic power units are designed to meet the needs of the machine, rather than the machine being designed to meet the needs of the fluid power system. Installation costs are usually dramatically reduced.

    Leaks are stopped. Manifolds with O-ring fitting ports eliminate external leakage, which frequently prohibited the use of hydraulics in many applications. There is no universally-right method for installation. Cartridge circuits in custom manifolds offer unequalled flexibility.
    DALLAST is both a supplier of custom integrated circuit manifolds and a supporter of our Distributors and customers who design and fabricate their own manifolds.

    How to order hydraulic power unit


    motor voltage DC 12V DC 24V AC 110V AC220V AC 380V
    input power 0.5kw-6.0kw
    working pressure 0-25Mpa
    solenoid valve voltage DC 12V DC 24V AC 110V AC220V AC 380V
    flow rate 0.5LPM-12LPM
    pump displacement 0.19cc/r-4.3cc/r
    oil port 1/4"BSP 1/8"BSP 3/8"BSP
    capacity of oil tank 0-40L
    installation vertical horizontal
    remote control switch Yes No



    Precautions
    • The factory production of a hydraulic power unit when leaving the factory, the system pressure has been set. If you want to change, the user according to the actual situation on their own through the knob to adjust the system pressure regulating valve, but no more than nominal pressure of the system.
    • Carefully check the motor and the electromagnetic valve connection. It is strictly prohibited to pick up.
    • In the installation and debugging for the first time, we must keep the internal fuel tank oil level, after a work cycle, oil tank should be made up, but not be too full.
    • Electrical and electromagnetic valve connection should pay special attention to the supply characteristics (ac, dc voltage and has the same sign. Ac power motor shell must be reliable grounding, forbidden ground operation. The motor terminal box notes waterproof, moisture proof. Connection for the first time, inching motor check direction, from the motor back end, spin to counterclockwise. Absolutely forbidden motor reverse rotation and oil-free idling.
    • When the gas tank hydraulic oil must be filtered, filtration precision is not lower than 25 microns.
    • Power unit can't filter the impurities inside the hydraulic cylinder. So, the hydraulic cylinder internal must clean. Lest cause valve failure. Tubing must also be clean.



    Hydraulic Cylinder Components Hydraulic Power Unit With Rectangular TankHydraulic Cylinder Components Hydraulic Power Unit With Rectangular Tank
