|Place of Origin:||Shandong China|
|Certification:||GS CE ISO 9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Hydraulic Power Pack Oil Tank:||60L||Hydraulic Power Pack Weight:||120KG|
|Operating Temperature:||30℃---60℃||Hydraulic Power Pack Working Pressure:||10Mpa|
|Hydraulic Power Pack Pump:||Vane Pump||Hydraulic Power Pack Color:||As Your Opinion|
|Pump Type/Output Type:||Triple Output Motor Pump||Driving Power:||2.6 Kw|

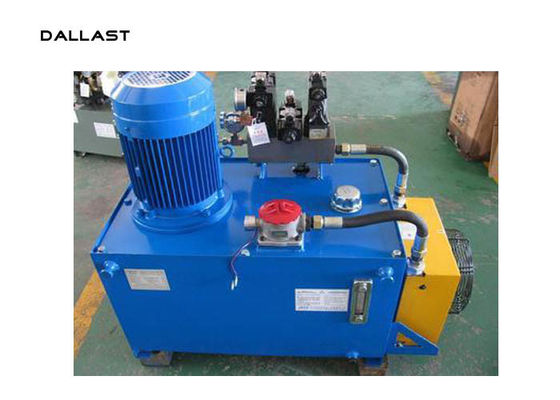

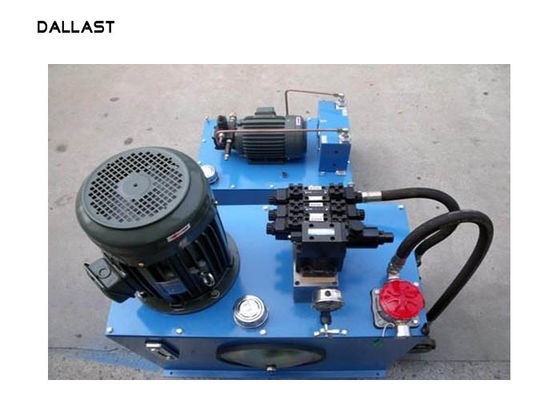

Output Motor Power Pump High Pressure Pump Hydraulic Power Unit
Each Part description
These are containers that can be attached to the hydraulic actuators. They collect water from the pumpingmechanism and are intended to build and maintain fluid pressure to supplement the motor pumping system.
A hydraulic power unit can be equipped with a single motor pump, or multiple devices each with their ownaccumulator valve. With a multiple pump system, usually only one operates at a time.
The tank is a storage unit designed with enough volume for the fluid in the pipes to drain into it. Likewise, actuator fluidmay sometimes need draining into the tank.
A filter is typically installed along the top of the tank. It is a selfcontained bypass unit, with its own motor, pump, and filtering apparatus. It can be used to fill or empty the tank by activating a multi-directional valve. Because they are self-contained, filters can often be replaced while the power unit is functioning.
Coolers and Heaters:
As part of the temperature regulation process, an air cooler can be installed near or behind the filter unitto prevent temperatures from rising above operational parameters. Likewise, a heating system, such as an oil-based heater, can be used to elevate temperatures when necessary.
Power Unit Controllers:
The hydraulic controller unit is the operator interface containing power switches, displays, and monitoringfeatures. It is necessary for installing and integrating a power unit into a hydraulic system. and can usually be found wired into the power unit.
|Max Operating Pressure||10 MPa|
|Rated flow||vane pump:12L/min|
|Capacity of tank||60 L|
|Ambient temperature||1~90 ℃|
|Control valve||Solenoid valve 1 pc|
|Accessories||other accessories:one-way valve,pressure gauge,manifold,level and temp.gauge,air breather,pressure switch and so on.|
Hydraulic power units are designed to meet the needs of the machine, rather than the machine being designed to meet the needs of the fluid power system. Installation costs are usually dramatically reduced.
Leaks are stopped. Manifolds with O-ring fitting ports eliminate external leakage, which frequently prohibited the use of hydraulics in many applications. There is no universally-right method for installation. Cartridge circuits in custom manifolds offer unequalled flexibility.
DALLAST is both a supplier of custom integrated circuit manifolds and a supporter of our Distributors and customers who design and fabricate their own manifolds.
We are pleased to provide our customers with a variety of associated hardware, commonly used in custom integrated manifold design, often difficult to obtain cost-effectively in lower quantities.
