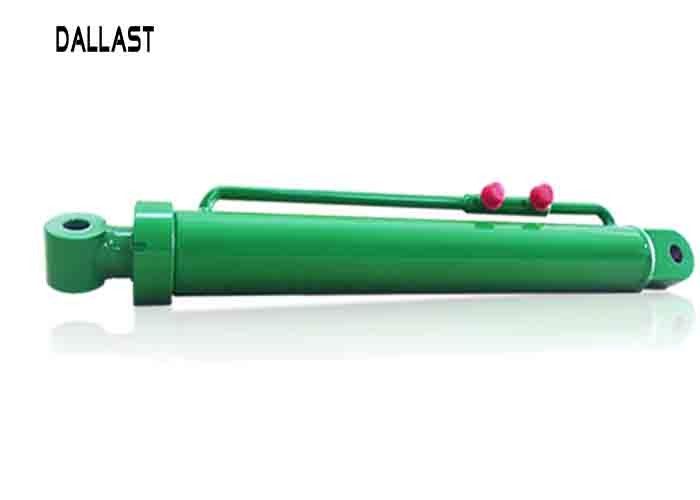

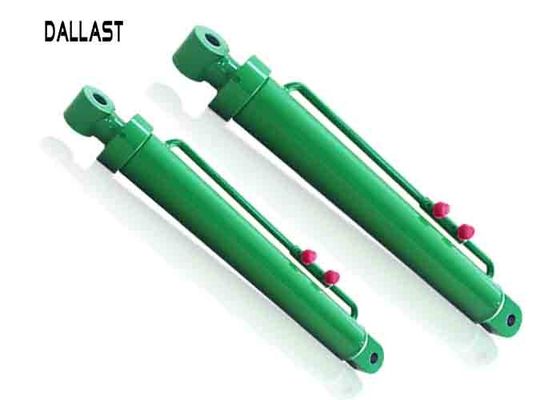

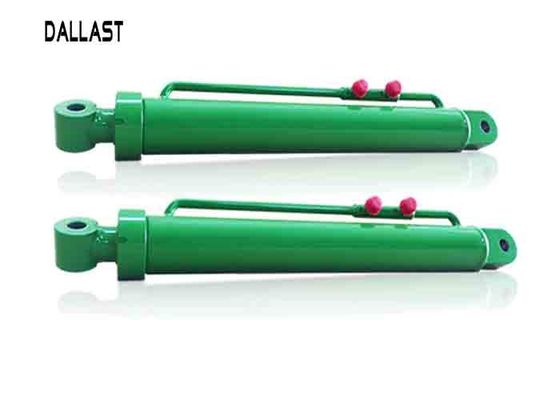

Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine

Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine

    • Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine
    • Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine
    • Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine
  • Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Temperature Pressure: 1000 - 4000 PSI
    Seal: Hyva, Parker Etc. Painted: Green Etc.
    Bore Size: Custom Rod Size: Custom

    Hyva Type Special Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine

    A double action hydraulic cylinder can move along the horizontal (x-axis) plane, the vertical (y-axis) plane or along any other plane of motion. This design uses pressurized hydraulic fluid to extend and retract the piston rod.

    Benefits:
    Piston rod: Stainless steel, alloy steel, carbon steel etc.
    End cap: Casting seal
    Packing: Goods are packed with export standing standard
    Warranty: We offer 12 months warranty
    Low noise:Good quality and low noise
    Low energy:The oil way design perfectly and can save the energy,avoid wast
    Operating temperature: -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen
    Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s

    Mounting way:
    1.Front and end of earring;
    2.Head fixed with flange;
    3.End fixed with flange;
    4.Vertical to axis foot type;
    5.Middle fixed with pendulum shift;
    6.End with single earring;
    7.According to your demand.



     type

    operating pressure
    (PSI)

    diameter of rod(mm)

    total stroke
    (mm)

    closed length
    (mm)

    cylinder bore (mm)
    HSG80/50*190-80016008019080080
    HSG80/50*210-51023008021051075
    HSG70/30*760-1055340070760105575
    HSG40/22*270-495210040270495100
    HSG50/25*150-80020305015080090
    HSG63/35*500-780109063500780110

    Tips:

    Many mounting styles

    Several bore sizes and in varying strokes

    Many of these sizes are available




    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
    A
    1. Bore size
    2. Stroke length
    3. Rod diameter
    4. Mounting type
    5. Mounting length
    6. Paint color requirement

    B. The product application description details
    1. Type of machine(loader, steer loader, excavator, and etc.)
    2. Type of function(hoist, swing, steering, and etc.)
    3. Type of structure(piston, telescopic)
    4. Single or double acting
    5. Operating pressure

    Installation method:
    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

    Delivery:
    1.We export from Qingdao port by sea.
    2. Goods will be delivered on time.
    3. Goods can arrive at the destination safely.
    Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine
    Hyva Hydraulic Cylinders Double Acting Piston Long Stroke for Farm Machine
