224 Voltage Hydraulic Power Unit Electric Wireless Control with Mounting Plates

224 Voltage Hydraulic Power Unit Electric Wireless Control with Mounting Plates

    • 224 Voltage Hydraulic Power Unit  Electric Wireless Control with Mounting Plates
    • 224 Voltage Hydraulic Power Unit  Electric Wireless Control with Mounting Plates
  • 224 Voltage Hydraulic Power Unit  Electric Wireless Control with Mounting Plates

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Voltage: 224 Volt Pressure: 1000-5000PSI
    Temperature: Normal Or High Temperature OEM: Yes
    Design: Custom Sample: Offer
    High Light:

    hydraulic pump motor

    ,

    hydraulic cylinder components

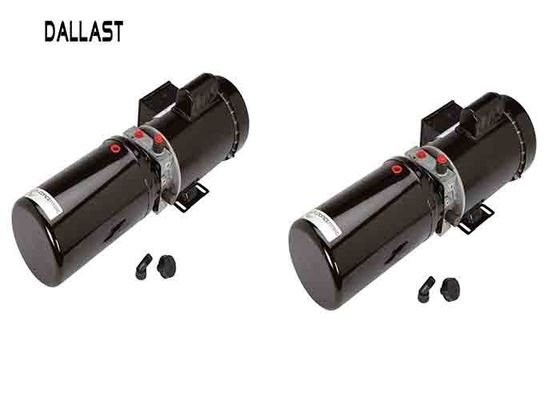

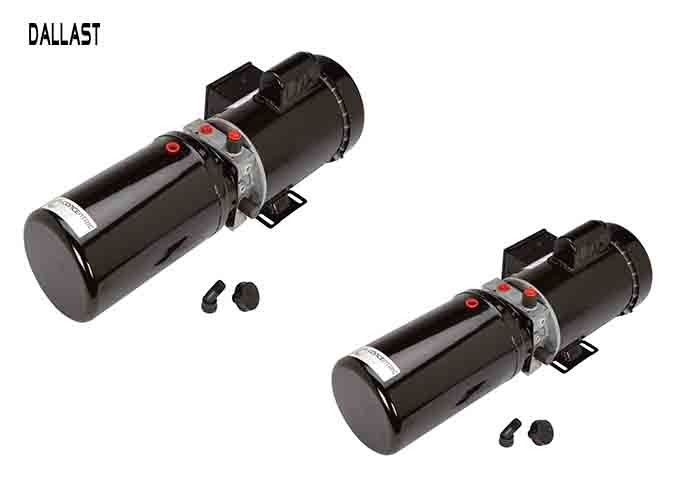

    224 Voltage Special Hydraulic Power Unit Electric Wireless Control with Mounting Plates



    This NorTrac 224Volt DC Power Unit can be used for OEM or replacement applications. The hydraulic power units are offered for industrial, mining, water conservancy, agriculture, electric power, machine tool and construction applications.



    Mounts vertically or horizontally.

    Large 1.32 gallon reservoir capacity

    1.5 GPM flow rate

    2.4cc displacement

    9/16-18 SAE O-rings on the outlet ports

    Low amperage draw

    Fast-acting pump for rapid raising

    Lowering speed is controlled by the pressure compensated flow control valve



    · Standard, compact and custom power units are available.

    · Electric control system (wire or wireless type) is optional.

    · Any kind and size of hydraulic cylinder to matching the system is optional.



                                                   Specification
    Reservoir Capacity 1.32 gal.
    Outlet Port (in.) 9/16-18 SAE O-ring port
    PSI 1000-5000
    Volts 224
    Max. RPM 3,000
    Ship Weight 31.0 lbs
    Displacement (cc) 2.4

    tips:

    The relief pressure can be adjusted to a max of 3000 psi.

    The hydraulic power unit can be used with a single acting or double acting cylinders.





    Custom Units:

    Our reputation for quality precision engineering is demonstrated in our design and manufacturer custom built power packs up to 300 bars (5000 psi) working pressure. Power units standard or non-standard are designed and constructed to the same high quality of manufacture as all our products.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    We manufacture a range of Hydraulic Power Unit. These products are available with OEM & ODM.



    224 Voltage Hydraulic Power Unit  Electric Wireless Control with Mounting Plates
