| Place of Origin: | Qingdao, China |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | custom |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 15-25 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure: | Normal Pressure | Temperature: | Normal Temperature |
|---|---|---|---|
| Lift Capacity: | 1-40 Tons | Rod Diameter: | Custom |
| Direction: | Double Acting | Structure: | With Axis |
| High Light: | dump truck hydraulic ram,dump truck hydraulic cylinder |
||

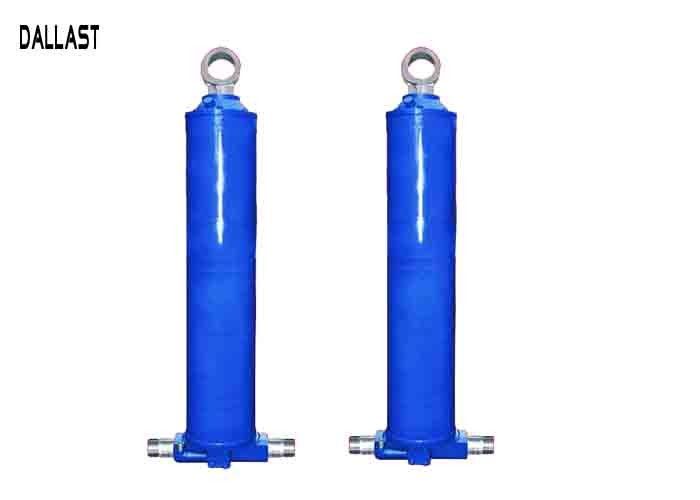

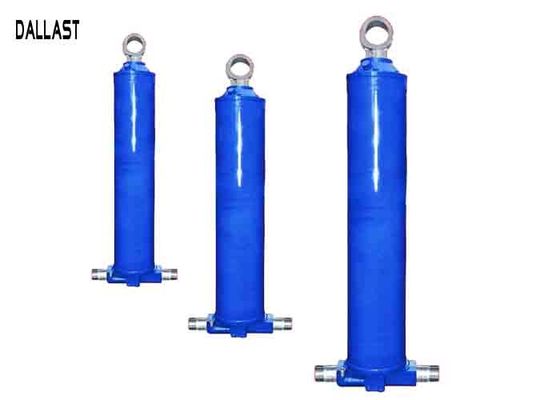

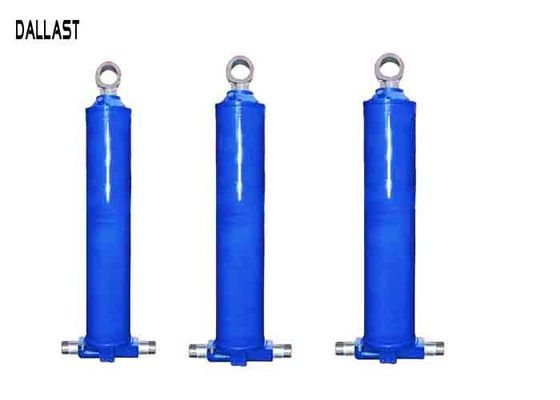

Standard Hoist Hydraulic Cylinder for Dump Trailer Double Acting with Earring Axle
It is double acting piston type hydraulic cylinder. Fitted together with hoist mechanism. It is installed under truck body.
Advantdges:
Higher efficiency; Stronger weather resistance; Better performance.
Choice of Mounting Styles; Cross Tube or Trunnion; Hard Chrome Plated Stages; Big lifting force.
Features:
Application: dump truck
Designed For: double-acting
Max inner tube diameter: 170mm,180mm,195mm,200mm,210mm,etc.
Mounting distance: 325mm/345mm/425mm
Working Pressure: 16Mpa
Stroke: 750mm~7200mm
Tipping Weight: 35~68Ton
Seal Type: Parker, NOK, or as customer's requirement
Piston Rod: Chrome or nickel plated, ground & polished piston rod
Tube: High tensile cold drawn tube, precision honed for extended seal life
Pressure ranges: could be customized
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
Our warranty of trailer cylinder is one year
So if there is any problem about the quality, please tell us without hesitation.
Our technician will serve for you! We are sincerely hope to cooperate with you and establish a long term relationship with you. So we always focus on quality, not price!
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
About technology:
hydraulic cylinder produce line, 700 sets manufacturing equipment, such as cold drawing production line , heat treatment production line, surface treatment production line, testing equipment, various digital-control machining equipment,gantry style linear electroplating production line, hydraulic cylinder quality guarantee system.
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the
drawings and tell us the details.
|
Models |
Length |
Width(mm) |
Height (mm) |
Min closed length (mm) |
Weight (kg) |
| KRM-92 dump hoist | 1120 | 528 | 350 | 749 | 122 |
| KRM-143 dump hoist | 1193 | 410 | 341 | 794 | 179 |
| KRM-160S dump hoist | 1434 | 500 | 60 | 992 | 252 |
| KRM-160C dump hoist | 1722 | 525 | 430 | 1152 | 298 |
| KRM-183 dump hoist | 1740 | 592 | 541 | 1175 | 464 |
| KRM-200A dump hoist | 1843 | 606 | 470 | 1232 | 504 |
| KRM-201 dump hoist | 1886 | 590 | 476 | 1275 | 515 |
| KRM-220 42’’ dump hoist | 1870 | 620 | 500 | 1226 | 518 |
