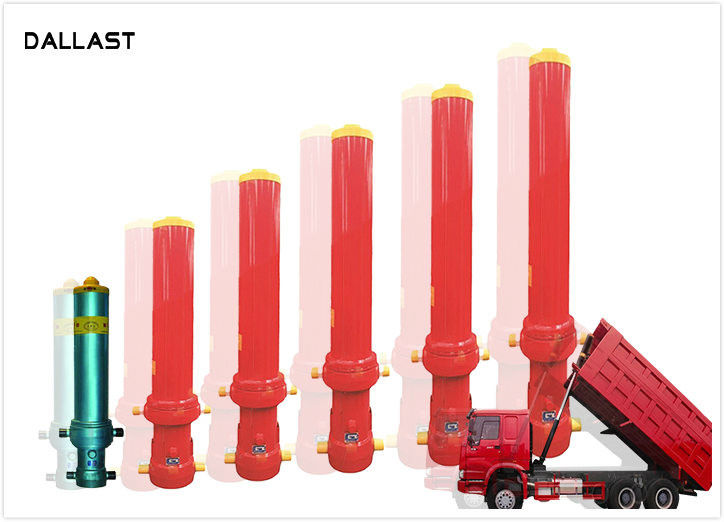

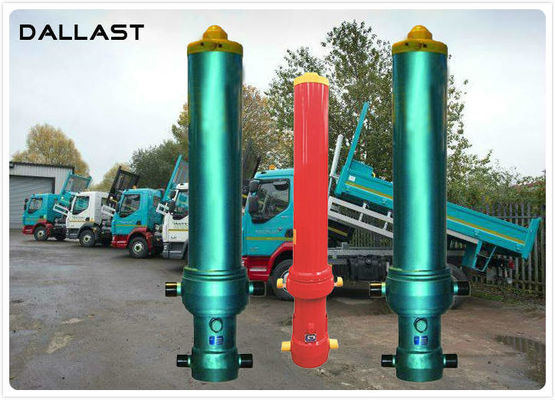

Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder

Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder

    • Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder
    • Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder
    • Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder
  • Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Certification: Gs, RoHS, Ce, ISO9001 Delivery Time: 15-25 Days
    Working Method: Straight Trip Standard: Standard, Nonstandard
    Hardness: HRC 45-55 Working Pressure: 16-32 Mpa
    High Light:

    long stroke single acting hydraulic cylinder

    ,

    small bore long stroke hydraulic cylinders

    Single Acting Long Stroke Customized Enerpac Hydraulic Cylinders for Dump Truck


    Hydraulic Cylinder:

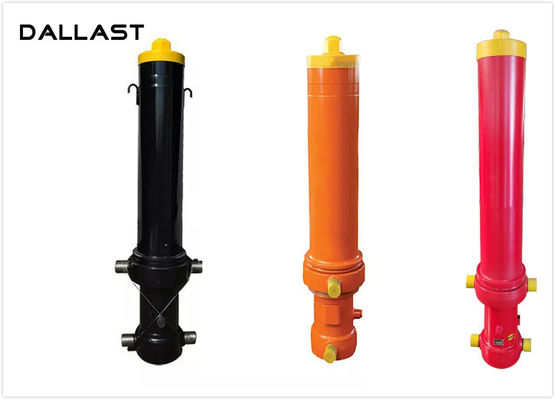

    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).
     Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.



    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.


    Company Advantage:
    > Professional manufacturer& supplier of Hydraulic Cylinders for more than 22 years;
    > Hydraulic Cylinders Certification ISO9001:2008, SGS, TS16949, RoHS, CNAS Certification;
    > Experience in export North America, Australia, Asia, Middle East, Africa;
    > Hydraulic Cylinders can be Make according to client's requirements;
    > The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
    > We are the supplier of Sinotruk, CNHTC, CIMC, Wuzheng, Beiben Truck, Baic Group, FOTON, HOWO, JAC, Sichuan Hyundai, Dayun, Shanxi Automobile, most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.


    Parameter:





    Single Acting Long Stroke Customized Enerpac Hydraulic Cylinders for Dump Truck



    Model Tipping.Max Press Close.height(mm) Tanker.Vol carriage Rear overhang Lifting.angle
    (T) (MPa) (L) (mm) (degree)
    3TG-E140×4000 24.6 16 1675 50 5200-5400 700mm 48-52
    4TG-E140×4270 24.6 16 1421 55 5400-5600 700mm 48-52
    4TG-E175×4450 38.5 16 1470 81 5600-6000 800 48-52
    4TG-E175×4650 38.5 16 1509 84 6000-6400 800 48-52
    4TG-E175×5000 38.5 16 1597 91 6400-6600 800 48-52
    4TG-E175×5390 38.5 16 1695 98 6600-7000 800 48-52
    4TG-E175×5780 38.5 16 1792 104 7000-7400 800 48-52
    4TG-E175×6000 38.5 16 1851 109 7400-7800 800 48-52
    4TG-E175×6180 38.5 16 1897 112 7800-8000 800 48-52
    4TG-E185×4650 43 16 1509 96 6200-6600 800 48-52
    4TG-E185×5000 43 16 1597 103 6600-6800 800 48-52
    4TG-E185×5390 43 16 1695 111 6800-7200 800 48-52
    4TG-E185×5780 43 16 1792 119 7200-7600 800 48-52
    4TG-E185×6000 43 16 1851 123 7600-8000 800 48-52
    4TG-E185×6180 43 16 1897 127 8000-8500 800 48-52



    FAQ:

    Questions: Answers:
    1. Compared with Hyva cylinder, what are your cylinder advantages?

    1. Tubes are chrome plated.

    2. Tubes are quenched and tempered.

    2. Compared with Hyva cylinder, what are your cylinder advantages?

    1. Tubes are chrome plated.

    2. Tubes are quenched and tempered.

    3. Are you a manufacturer? Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.
    4. Do your products come with a warranty? Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.
    5. How do you deliver the products? By sea, By plane, By couriers.
    6. What’s your cylinder PPM? 5000 PPM. We do 100% inspection before delivery.



    Product Show:

    Long Stroke Single Acting Hydraulic Cylinder for Dump Truck , Hydraulic Oil Cylinder
