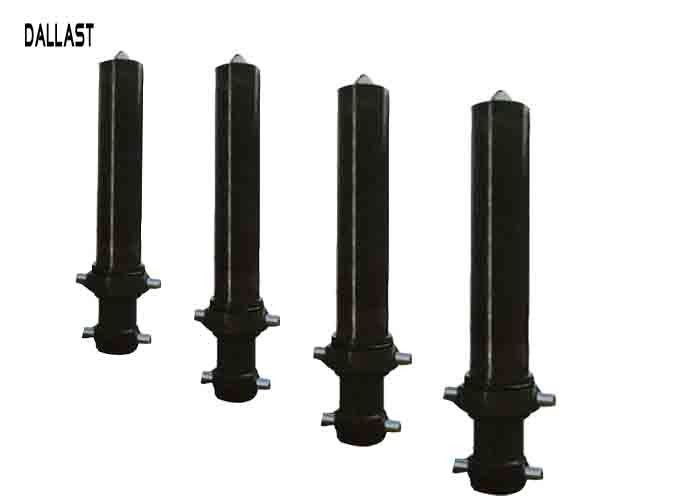

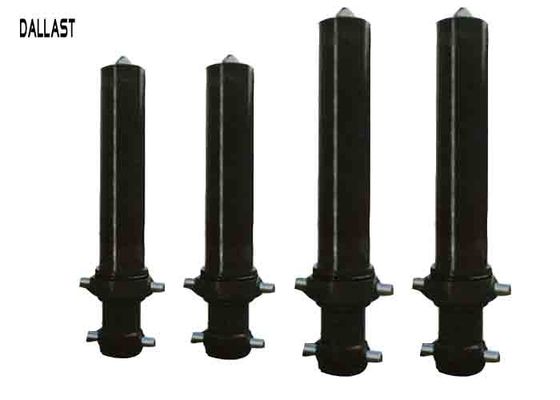

Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM

Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM

    • Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM
    • Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM
    • Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM
  • Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Alloy Steel Pressure: Normal Pressure
    Temperature: Normal Temperature Rod Diameter: Custom
    Structure: Single Acting Size: Custom

    Telescoping Multi Stage Dump Trailer Hydraulic Cylinder Chrome Rod Standard or OEM



    Application:

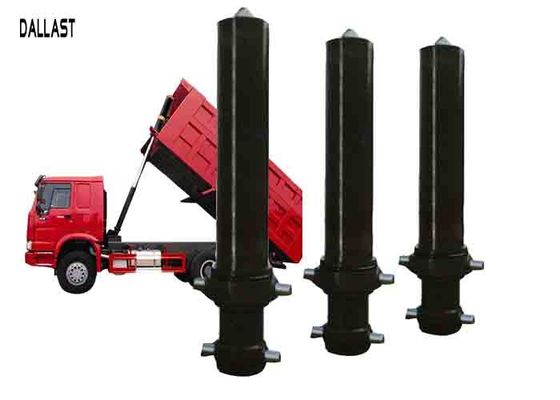

    Adopting latest technological development, we have been supplying a wide range of Hydraulic Cylinder for Trolley Tipper and dump trailer. Mining Truck; Refuse trucks; Garbage Station; Refuse movable compactor – Packer; Military defend automotive trucks.



    Single-acting multistage sleeve hydraulic cylinder, large stroke,can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.



    In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.



    Benefits:

    Tube: The hydraulic cylinder tube is the main part of the hydraulic cylinder.The inner hole of the hydraulic cylinder tube usually precision processed by boring,reaming,rolling or honing.By these process can ensure the piston,sealing elements and the support elements move smoothly,then ensure the sealing effect and reduce the abrasion.The hydraulic cylinder tube will bear big pressure,so need high strength and stiffness.



    Advantage: Big lifting force; higher efficiency; stronger weather resistance; better performance.



    Delivery: We can work with you to develop competitive pricing structures and highly responsive manufacturing lead-times to ensure your job is completed on-time and on-budget.



    OEM: From custom hydraulic cylinders to project-based designs, or an OEM specific application, we can provide the solution that will best suit your project requirements. The number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. Please provide photo or technical diagrams of hydraulic cylinder.



    ZZ Type Dump Trailer Cylinder
    standard product type

    pressure

    (Bar)

    stroke

    (mm)

    close length

    (mm)

    3TG-E180*4210ZZ 160 4210 343
    4TG-E160*4130ZZ 160 4130 343
    4TG-E160*5150ZZ 160 5150 343
    4TG-E180*4000ZZ 160 4000 343
    4TG-E180*5390ZZ 160 5390 343
    3TG-E180*3850ZZ 160 3850 343
    4TG-E180*5390ZZ 160 5390 343



                                                   FC Type Cylinder for Trailer

    Model

    Rated pressure

    (MPa)

    Bore diameter
    (mm)

    Stroke

    (mm)

    1st Stage diameter

    (mm)

    Stages




    FC 4TG-E152*4280ZJ
    16 158/136/115/95 4280 152 4
    FC 5TG-E152*4280ZJ 16 158/136/115/95/75 4280 152 5
    FC 4TG-E160*5390ZJ 16 166/141/115/95/75 5390 160 4
    FC 4TG-F175*4280ZJ 20 181/158/136/115 4280 175 4
    FC 4TG-F175*5390ZJ 20 181/158/136/115 5390 175 4
    FC 4TG-F175*5700ZJ 20 181/158/136/115 5700 175 5
    FC 5TG-F175*5390ZJ 20 181/158/136/115/95 5390 175 5





    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details
