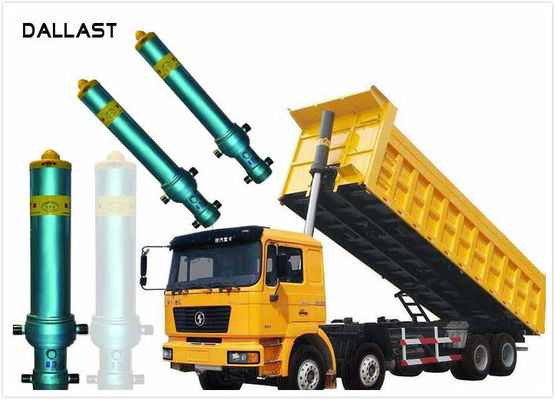

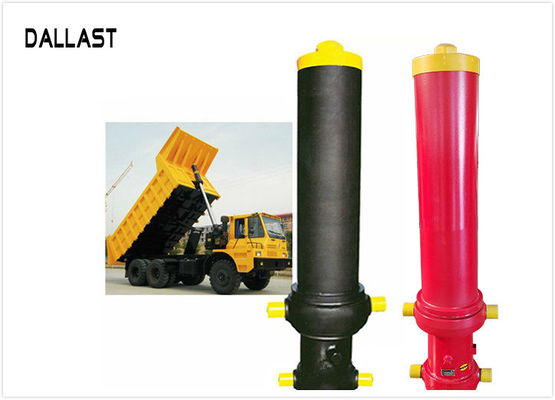

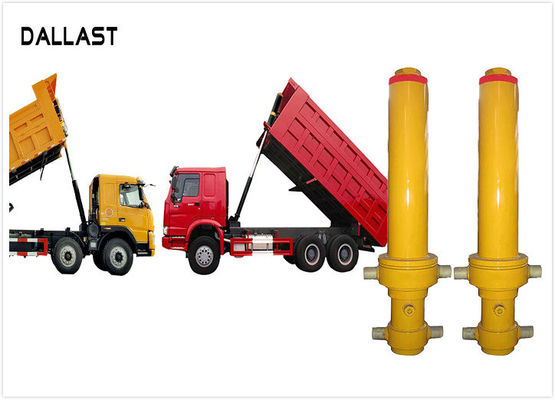

Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder

Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder

    • Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder
    • Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder
    • Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder
  • Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Warranty: One Year Pressure: Medium Pressure
    Certification: Gs, RoHS, Ce, ISO9001 Seals: Parker, Merkel, Hallite
    Adjusted Form: Regulated Type Color: Any Color

    Hyva Single Acting Dump Truck Long Stroke Hydraulic Lifting Cylinder for Sale


    Hydraulic Cylinder:
    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).


    Cylinder and Cylinder of the Advantages and Disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;
    4. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard.
    A hydraulic cylinder is the most important components of implementation, it can convert mechanical energy of hydraulic and matched with a variety of transmission to complete all of the mechanical movement. Hydraulic cylinder has a simple structure, the output force, stable and reliable performance and easy maintenance, wide range of applications and so on.

    Quality Control:
    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
    4. Type Inspection
    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.


    Parameter:





    Single Acting Dump Truck Hydraulic Cylinders





    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    This product is used in numerous application including:
    1. Dump truck.
    2. Pump trucks.
    3. Truck mounted crane.
    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders.
    The above data for reference only, we can fully meet your requirements to make customers satisfied with the product.If you need, feel free to contact us and we can advise and design.


    FAQ:

    Questions: Answers:
    1. Compared with Hyva cylinder, what are your cylinder advantages?

    1. Tubes are chrome plated.
    2. Tubes are quenched and tempered.

    2. Compared with Hyva cylinder, what are your cylinder advantages?

    1. Tubes are chrome plated.
    2. Tubes are quenched and tempered.

    3. Do your products come with a warranty? Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.
    4. How do you deliver the products? By sea, By plane, By couriers.
    5. What’s your cylinder PPM? 5000 PPM. We do 100% inspection before delivery.

    6.What 's the after-service?

    If the quality can’t meet your requirements, we will pay all your lost and offer technical support to solve your problem!
    7. What are the same aspects of your cylinder with Hyva cylinder?

    1. Same inside structure.

    2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's.


    Product Show:
     Hyva Long Stroke Hydraulic Lifting Cylinder , Single Acting Dump Truck Telescopic Cylinder
