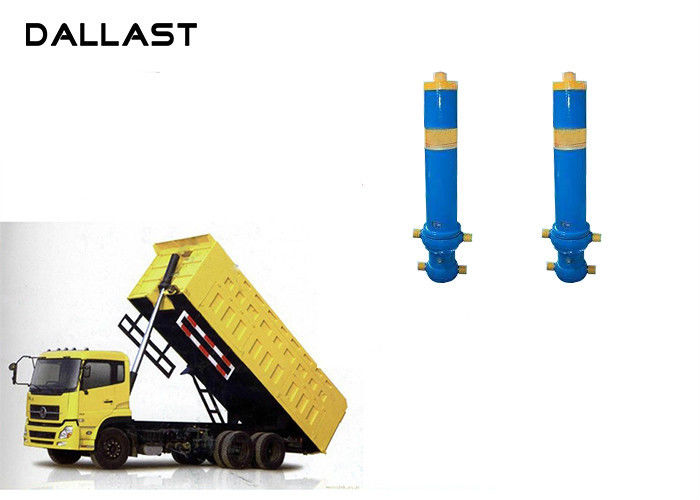

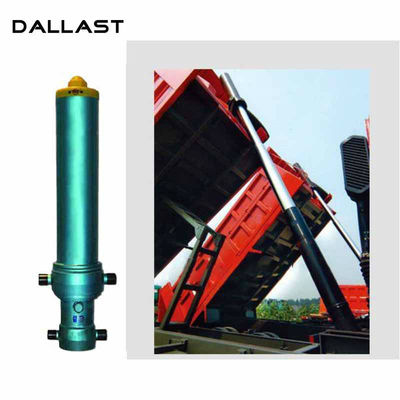

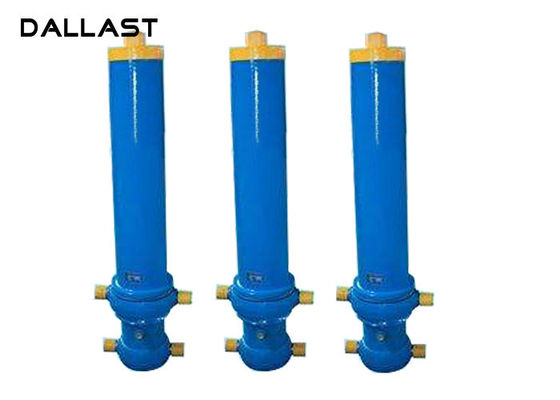

Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer

Single Acting Hydraulic Cylinder Telescopic Vertical for Dumper Tipper Trailer

    • Single Acting Hydraulic Cylinder Telescopic Vertical  for Dumper Tipper Trailer
    • Single Acting Hydraulic Cylinder Telescopic Vertical  for Dumper Tipper Trailer
    • Single Acting Hydraulic Cylinder Telescopic Vertical  for Dumper Tipper Trailer
  • Single Acting Hydraulic Cylinder Telescopic Vertical  for Dumper Tipper Trailer

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: One Way Hydraulic Cylinder Structure: Welded Hydraulic Cylinder
    Stage: 3 4 5 6 Multi Stage Lifting Capacity: 13 - 110 Ton
    Stroke: 3000mm-11000mm Mounting Type: Earring-trunnion, Double Trunnion, Double Earring,Hinge Shaft
    Coating: Chrome Plated
    High Light:

    dump truck telescopic cylinder

    ,

    dump truck hydraulic cylinder

    Single Acting Telescopic Vertical Hydraulic Ram for Dumper Tipper Trailer



    Application: Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Farm Truck etc;



    Product Descripition :



    Material:Alloy steel,Carbon steel,Stainless steel,27SiMn

    Rod :Chrome plated and quenched.Has good mechanical properties, long service life

    Cylinder:Honing machining /boring /rolling





    Model

    Rod diameter

    (mm)

    Pressure

    (bar)

    Lift tonnage

    (ton)

    Weight

    (kg)

    Volume

    Turck bed length

    (m)

    3TG-150-4230 110mm 220 64-81  308 62L 5.2-5.6
    4TG- 172-4310 110mm 220 66-106  317 74L 5.4-5.8
    4TG-172-5110 110mm 220 62-96  356 88L 6.2-6.8
    4TG- 172-5390 110mm 220 61-98  368 93L 6.5-7.2
    4TG- 172-5630 110mm 220 61-100  379 97L 6.8-7.6
    4TG- 196-5340 129mm 220 85-108  391 121L 6.5-7.2
    4TG- 196-5580 129mm 220 84-105  400 126L 6.8-7.6
    4TG- 196-5820 129mm 220 83-106  412 131L 7.2-8.0
    4TG- 196-6100 129mm 220 82-106  427 137L 7.6-8.2
    5TG- 196-5950 110mm 220 80-106  390 120L 7.6-8.0
    5TG- 196-6350 110mm 220 60-98  408 128L 7.8-8.2
    5TG- 196-6500 129mm 220 60-98  425 133L 8.2-8.5
    5TG- 196-7300 129mm 220 59-80  453 147L 9.0-9.5





    FE Type Hydraulic Cylinder



    Model  Lifting capacity(Ton) Rated pressure(MPa) Bore diameter
    (mm)
    FE-3-E152*3880 28.3 16 158/136/115
    FE-3-E152*4090 28.3 16 158/136/115
    FE-4-E152*4280 28.3 16 158/136/115/95
    FE-4-E152*4650 28.3 16 158/136/115/95
    FE-4-E152*4940 28.3 16 158/136/115/95
    FE-4-E175*4280 49 16 175/158/136/115
    FE-4-E175*4620 49 16 175/158/136/115
    FE-4-E175*5180 49 16 175/158/136/115
    FE-5-E175*5780 49 16 175/158/136/115/95
    FE-5-E175*6180 49 16 175/158/136/115/95
    FE-6-E175*6060 49 16 175/158/136/115/95/70
    FE-6-E175*6060 49 16 175/158/136/115/95/70
    FE-5-E200*6180 64 16 200/175/158/136/115
    FE-5-E200*6350 64 16 200/175/158/136/115






    Cylinder Advantages:

    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • Hydraulic Cylinders can be Make according to client's requirements
    • One year warranty and long time track service is offered to solve any problems you meet after sale.

    1.Design Services
    Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

    2.Product Services
    raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

    3.Samples Procedure
    We could develop the sample according to your requirement and amend the sample constantly to meet your need.

    4.Research & Development
    We usually research the new needs of the market and develop the new model when there is new cars in the market.

    5.Quality Control
    Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

    6.Certification
    Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.



    Single Acting Hydraulic Cylinder Telescopic Vertical  for Dumper Tipper Trailer

    Single Acting Hydraulic Cylinder Telescopic Vertical  for Dumper Tipper Trailer
