    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Material: Stainless Steel, Alloy Steel
    Means Of Transport: Ocean, Air Surface Coating: Sandblasting, Primer Paint, Middle Paint, Finish
    Delivery Time: 15-25 Days Specification: Customized

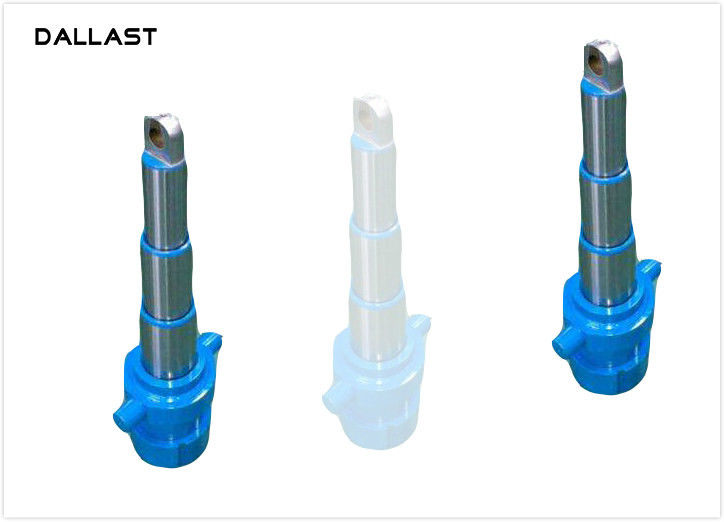

    Telescopic Welded Regular Pressure Single Acting Hydraulic Ram for Side Dumper​





    Single Acting Hydraulic Cylinder Inner Workings and Uses:

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

    Parameter:

    Side Dumper Single Acting Hydraulic Ram Telescopic Welded Regular Pressure
    Model Rated pressure Bore diameter Installation distance Stroke
    (MPa) (mm) (mm) (mm)
    4TG-E180*800 16 180 140 800
    4TG-E160*800 16 160 140 800
    4TG-E150*830 16 150 160 830
    4TG-E140*800 16 140 140 800
    4TG-E140*730 16 140 140 730
    4TG-E135*800 16 135 140 800
    4TG-E135*730 16 135 140 730
    4TG-E130*750 16 130 110 750
    3TG-E150*800 16 150 140 800
    5TG-E130*750 16 130 140 750
    3TG-E130*900 16 130 140 900
    4TG-E110*1360 16 110 140 1360
    3TG-E110*1530 16 110 140 1530
    3TG-E110*1350 16 110 140 1350
    3TG-E110*1020 16 110 140 1020
    3TG-E110*900 16 110 260 900
    2TG-E110*1020 16 110 140 1020
    3TG-E90*1155 16 90 140 1155
    3TG-E90*1020 16 90 140 1020
    3TG-E90*900 16 90 260 900
    3TG-E90*750 16 90 140 750
    2TG-E90*900 16 90 140 900
    2TG-E90*600 16 90 260 600
    2TG-E90*500 16 90 260 500
    3TG-E70*750 16 70 140 750



    Single Acting Hydralic Cylinder
    HS Code 8412210000

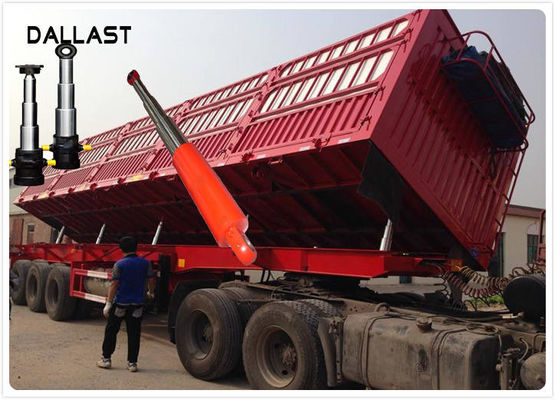

    Application Side Dump Truck
    Material of cylinder tube Alloy Steel, Stainless Steel
    Seal Hallite,SKF,NOK,Guarnitec,Parker
    Coating chrome plated
    Temperature -30ºC~80ºC
    Working pressure 16mpa-32mpa
    Stroke 300mm-1500mm
    Color Red black blue gray,can custom according request
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001-2009 ,TS16949
    Package Shrink film, pallet, plywood case and carton
    Warranty One year after shipping arrival
    Payment terms T/T, L/C, West Union,Paypal
    Delivery time 15- 25 days after down payment



    Cylinder and cylinder of the advantages and disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;



    Quality Control:
    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
    4. Type Inspection
    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.



    Attention:

    1. We have special departments to ensure that no strict quality control any quality problem before delivery.

    2. Carefully check goods size table and product specifications. Please check detail with customer service before buying

    3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.



    Profile:

    We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
    Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

    15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

    The only one super size cylinder manufactuer in China.

    2000m2 synthetic office building of computer control net work center

    GB/T9001-2000, IDT ISO 9001:2000 quality management system.

    AAA grade credit certificate issued by international credit assessment center

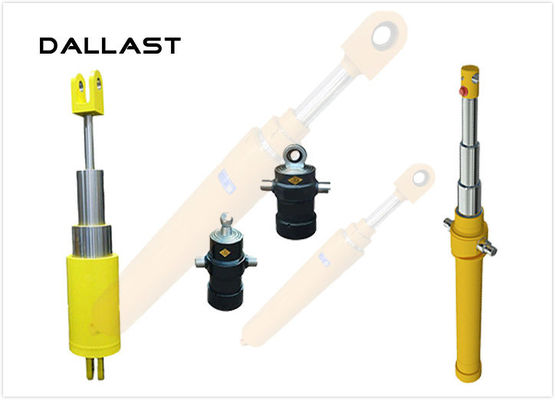

    Product Show:
    Side Dumper Single Acting Hydraulic Ram  Telescopic Welded Regular Pressure
