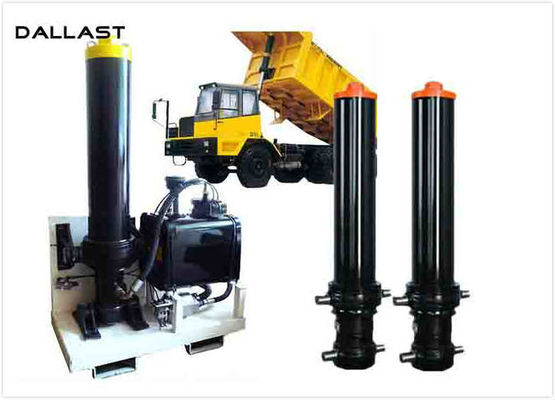

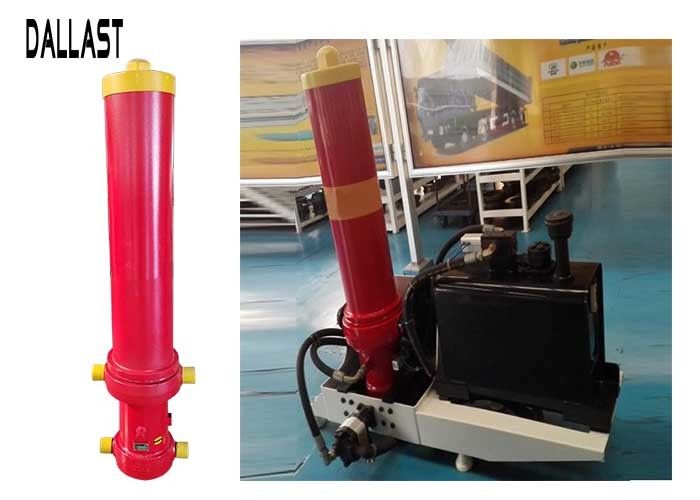

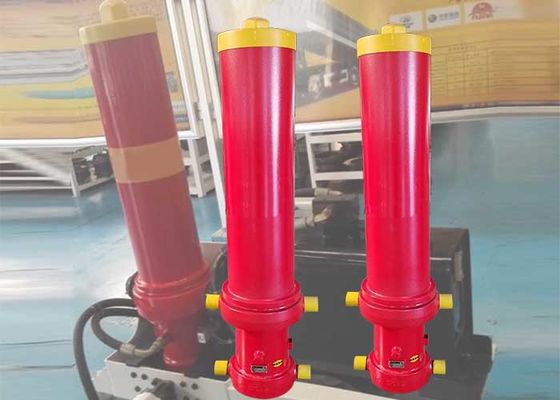

Muiti Stage Dump Trailer Hydraulic Cylinder , Single Acting Hydraulic Ram for Mining Truck

Muiti Stage Dump Trailer Hydraulic Cylinder , Single Acting Hydraulic Ram for Mining Truck

    • Muiti Stage Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram for Mining Truck
    • Muiti Stage Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram for Mining Truck
    • Muiti Stage Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram for Mining Truck
  • Muiti Stage Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram for Mining Truck

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Alloy Steel Pressure: Normal Pressure
    Temperature: Normal Temperature Rod Diameter: Custom
    Structure: Single Acting Size: Custom
    High Light:

    dump truck hydraulic ram

    ,

    dump truck telescopic cylinder

    Dump Trailer Hydraulic Cylinder Muiti Stage Single Acting for Mining Truck



    Application:

    Single-acting multistage sleeve hydraulic cylinder, large stroke,can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder. In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.



    Mining Truck



    Refuse trucks



    Garbage Station



    Refuse movable compactor – Packer



    Military defend automotive trucks



    Ground support equipment



    Advantages:

    Big lifting force; higher efficiency; stronger weather resistance; better performance



    We can work with you to develop competitive pricing structures and highly responsive manufacturing lead-times to ensure your job is completed on-time and on-budget.



    From custom hydraulic cylinders to project-based designs, or an OEM specific application, we can provide the solution that will best suit your project requirements. Tips: Please provide photo or technical diagrams of hydraulic cylinder.





    standard product type

    pressure

    (Bar)

    stroke

    (mm)

    mounting distance

    (mm)

    3TG-E180*4210ZZ 160 4210 343
    4TG-E160*4130ZZ 160 4130 343
    4TG-E160*5150ZZ 160 5150 343
    4TG-E180*4000ZZ 160 4000 343
    4TG-E180*5390ZZ 160 5390 343
    3TG-E180*3850ZZ 160 3850 343
    4TG-E180*5390ZZ 160 5390 343
    3TG-E150*3830EZ 160 3830 343



    Faetures: Choice of mounting styles, cross tube or trunnion; hard chrome plated stages; the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement; the length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.





    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension

    B. Stroke length

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating

    F. Bore Diameter

    G. Application details



    Muiti Stage Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram for Mining Truck

    Muiti Stage Dump Trailer Hydraulic Cylinder  , Single Acting Hydraulic Ram for Mining Truck
