Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck

Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck

    • Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck
    • Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck
    • Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck
  • Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Standard: Standard, Nonstandard Hardness: HRC 45-55
    Acting Way: Single Acting Origin: Shandong, China
    Material: Stainless Steel, Alloy Steel Color: Any Color

    Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck​





    Key Specifications:



    Dallast has a strong commitment to supply the world-class quality products, our factory has strict control system, advanced production equipment, including Kuka robots, friction welding machine and advanced CNC processing center and more.

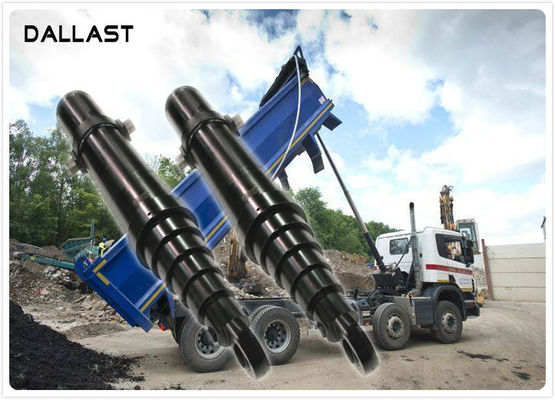

    Dallast front end tipping solution with standard operating pressure up to 250 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability.

    Dallast has a complete range of front-end cylinders: with cover (FC), top eye (FE), top and bottom eye(FEE) with max. Lifting capacity up to 120 tons.


    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    Attention:

    1. We have special departments to ensure that no strict quality control any quality problem before delivery.

    2. Carefully check goods size table and product specifications. Please check detail with customer service before buying

    3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.



    Parameter:

    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5
    The company Dallast with over 15 years of experience in hydraulics is a leading manufacturer of hydraulic cylinders and components.The wide range of standard products in stock and the competence to support its customers by manufacturing custom-made cylinders makes the company a versatile and reliable partner.



    FAQ:

    Q1: Are you a manufacturer or a trader?
    We are manufacturer ,our own factory is located in Liaoning province,China

    Q2: How do you protect customer's right?
    DALLAST's work habit is to sign confidential agreement with own/outside factories all the time before start any project.
    DALLAST also has signed confidential agreement with all its staffs.

    Q3: How long shall we get the quotation?
    Processing time for Enquiries :1-3 days

    Q4: What is your payment term?
    Payment term:
    1)Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

    2)Samples: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

    3)Products: 30% prepaid as order deposit;70% paid before EX-work.



    Product Show:

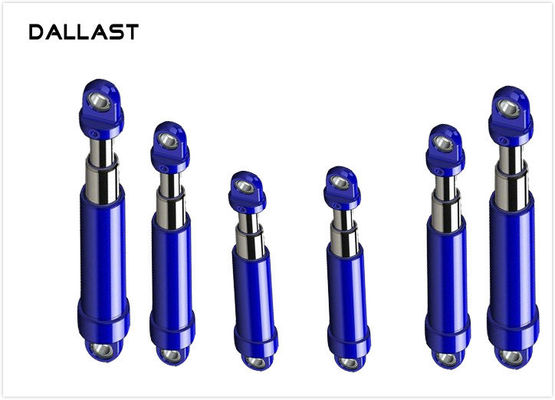

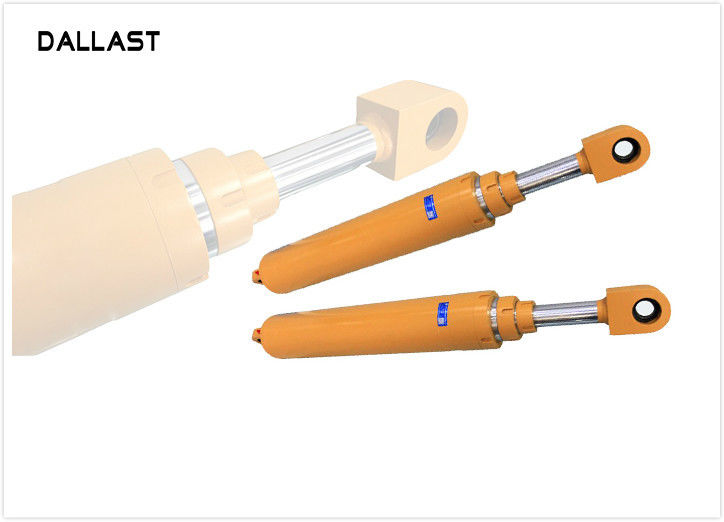

    Single Acting Telescopic Welded Hydraulic Lift Cylinder for Agricultural Farm Truck
