| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO9001-2009 TS16949 |
| Model Number: | Standard , Non-standard |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton box |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,paypal |
| Supply Ability: | 50000PCS per year |
| Seal: | Hallite,SKF,NOK,Guarnitec,Parker | Material: | Alloy Steel,Carbon Steel,Stainless Steel,27SiMn |
|---|---|---|---|
| Structure: | Telescoping Cylinder | Pressure: | Medium Pressure |
| Model NO: | Customized | Use: | Automation And Control |
| Model: | OEM, Custom Design | Lift Capacity: | 13-90 Ton |
| High Light: | dump truck hydraulic ram,dump truck telescopic cylinder |
||

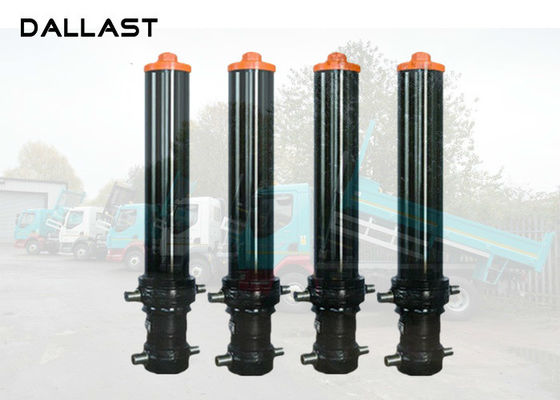

Multi Stage Single Acting Lifting Long Stroke Dump Trailer Hydraulic Cylinder
Product introduction:

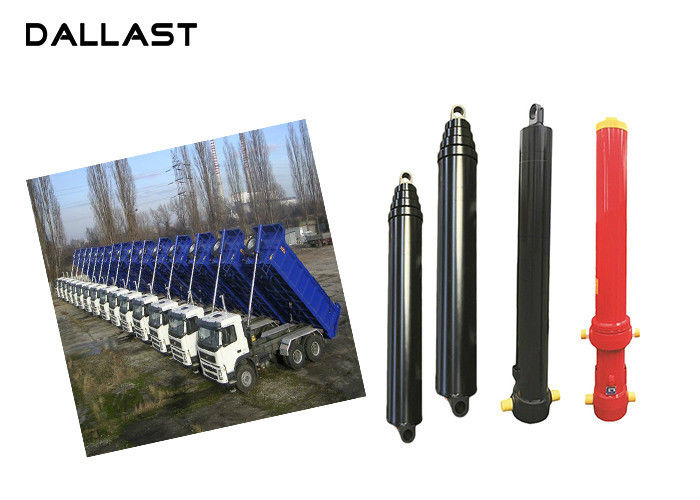

Single-acting multistage telescopic sleeve hydraulic cylinder, large stroke,can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
A telescopic cylinder is comprised of several cylinders built inside one another. It is is often constructed in a single-acting form, but is also to be encountered in a double-acting version. A combination of single-acting stages with a double-acting stage is also possible. The advantage of telescopic cylinders is that they can generate large strokes with relatively small installation lengths.
| Parker and Custom Hoists Kind | ||||||
| Parker | Model No. | First Stage Diameter | Stage | Stroke | Closed Length | Open Length |
| S53DC-66-72 | 3TG F5*72 | 5" | 3 | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| S53DC-66-84 | 3TG F5*84 | 5'' | 3 | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| S53DC-65-107 | 3TG F5*107 | 5" | 3 | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| S53DC-65-126 | 3TG F5*126 | 5" | 3 | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| S63DC-101-86 | 3TG F6*86 | 6" | 3 | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| S63DC-101-104 | 3TG F6*104 | 6" | 3 | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| S63DC-101-107 | 3TG F6*107 | 6" | 3 | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| S63DC-97-111 | 3TG F6*111 | 6'' | 3 | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| S63DC-102-120 | 3TG F6*120 | 6'' | 3 | 120" (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| S63DC-97-123 | 3TG F6*123 | 6'' | 3 | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| S63DC-102-126 | 3TG F6*126 | 6'' | 3 | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| S63DC-101-140 | 3TG F6*140 | 6'' | 3 | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| S64DC-12-135 | 4TG F6*135 | 6'' | 4 | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| S64DC-14-156 | 4TG F6*156 | 6'' | 4 | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| S73DC-66-110 | 3TG F7*110 | 7" | 3 | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| S73DC-66-120 | 3TG F7*120 | 7" | 3 | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| S73DC-66-124 | 3TG F7*124 | 7" | 3 | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| S73DC-66-129 | 3TG F7*129 | 7" | 3 | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| S73DC-66-140 | 3TG F7*140 | 7" | 3 | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| S73DC-66-150 | 3TG F7*150 | 7" | 3 | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
| S74DC-74-120 | 4TG F7*120 | 7" | 4 | 120" (3048mm) | 44.12" (1120mm) | 164.12" (4168mm) |
| S74DC-74-135 | 4TG F7*135 | 7" | 4 | 135" (3429mm) | 48.43" (1230mm) | 183.44" (4659mm) |
| S74DC-74-140 | 4TG F7*140 | 7" | 4 | 140" (3556mm) | 49.75" (1263mm) | 189.75" (4819mm) |
| S74DC-74-156 | 4TG F7*156 | 7" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S74DC-74-161 | 4TG F7*161 | 7" | 4 | 161.75" (4108mm) | 55.31" (1405) | 217.06" (5513mm) |
| S74DC-74-167 | 4TG F7*167 | 7" | 4 | 167" (4242mm) | 56.38" (1432mm) | 223.38" (5674mm) |
| S74DC-74-180 | 4TG F7*180 | 7" | 4 | 180" (4572mm) | 61.12" (1552mm) | 241.12" (6124mm) |
| S84DC-66-148 | 4TG F8*148 | 8" | 4 | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
| S84DC-66-156 | 4TG F8*156 | 8" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S84DC-66-161 | 4TG F8*161 | 8" | 4 | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
| S84DC-66-170 | 4TG F8*170 | 8" | 4 | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
| S84DC-66-180 | 4TG F8*180 | 8" | 4 | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
| S85DC-66-170 | 5TG F8*170 | 8" | 5 | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
| S85DC-66-190 | 5TG F8*190 | 8" | 5 | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
| S85DC-66-220 | 5TG F8*220 | 8" | 5 | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
| S85DC-66-235 | 5TG F8*235 | 8" | 5 | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
| S85DC-66-250 | 5TG F8*250 | 8" | 5 | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
| S85DC-66-265 | 5TG F8*265 | 8" | 5 | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
| S85DC-66-285 | 5TG F8*285 | 8" | 5 | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
| S95DC-52-220 | 5TG F9*220 | 9" | 5 | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
| S95DC-52-235 | 5TG F9*235 | 9" | 5 | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
| S95DC-52-250 | 5TG F9*250 | 9" | 5 | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
| S95DC-52-265 | 5TG F9*265 | 9" | 5 | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
| S95DC-52-280 | 5TG F9*280 | 9" | 5 | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
| S95DC-52-300 | 5TG F9*300 | 9" | 5 | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
| S95DC-52-320 | 5TG F9*320 | 9" | 5 | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
| S95DC-52-340 | 5TG F9*340 | 9" | 5 | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |
| FE Type Hydraulic Cylinder | |||||
| Model | Lifting capacity | Rated pressure | Bore diameter | Stroke | Mounting distance |
| (Ton) | (MPa) | (mm) | |||
| FE-3-E158*3880 | 31.4 | 16 | 158/136/115 | 3880 | 1697 |
| FE-3-E158*4090 | 31.4 | 16 | 158/136/115 | 4090 | 1732 |
| FE-4-E158*4280 | 31.4 | 16 | 158/136/115/95 | 4280 | 1345 |
| FE-4-E158*4650 | 31.4 | 16 | 158/136/115/95 | 4650 | 1546 |
| FE-4-E158*4940 | 31.4 | 16 | 158/136/115/95 | 4940 | 1529 |
| FE-4-F175*4280 | 48 | 20 | 175/158/136/115 | 4280 | 1345 |
| FE-4-F175*4620 | 48 | 20 | 175/158/136/115 | 4620 | 1479 |
| FE-4-F175*5180 | 48 | 20 | 175/158/136/115 | 5180 | 1604 |
| FE-5-F175*5780 | 48 | 20 | 175/158/136/115/95 | 5780 | 1559 |
| FE-5-F175*6180 | 48 | 20 | 175/158/136/115/95 | 6180 | 1505 |
| FE-6-F175*6060 | 48 | 20 | 175/158/136/115/95/70 | 6060 | 1240 |
| FE-5-F200*6180 | 62.8 | 20 | 200/175/158/136/115 | 6180 | 1527 |
| FE-5-F200*6350 | 62.8 | 20 | 200/175/158/136/115 | 6350 | 1673 |
| FC Type Hydraulic Cylinder | |||||
| MODEL NO. | Stage | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
| (mm) | (mm) | (mm) | (mm) | ||
| FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
| FC-3-110-3460 | 3 | 110 | 3460 | 168 | 343 |
| FC-3-129-2980 | 3 | 129 | 2980 | 218 | 343 |
| FC-3-129-3205 | 3 | 129 | 3205 | 218 | 343 |
| FC-3-129-3460 | 3 | 129 | 3460 | 218 | 343 |
| FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
| FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
| FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
| FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
| FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
| FC-4-149-3680 | 4 | 149 | 3680 | 218 | 343 |
| FC-4-149-3980 | 4 | 149 | 3980 | 218 | 343 |
| FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
| FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
| FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
| FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
| FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
| FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
| FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
| FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
| FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
| FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
| FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
| FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
| FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
| FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
| FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
| FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
| FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
| FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
| FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
| FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
| FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
| FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
| FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
| FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
| FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
| FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
| FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
| FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
| FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |
