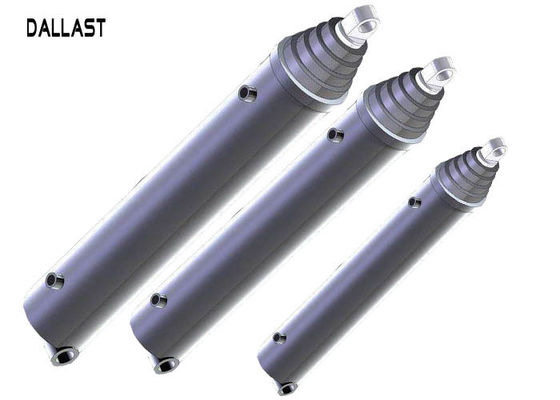

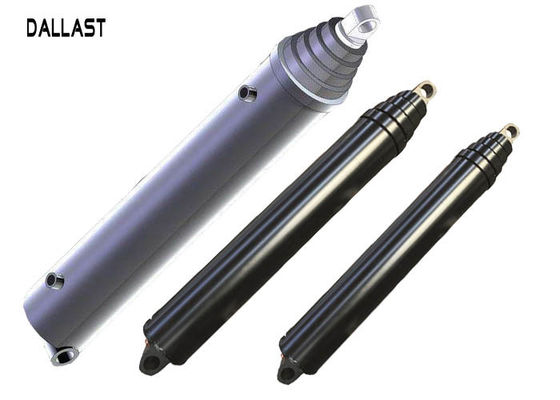

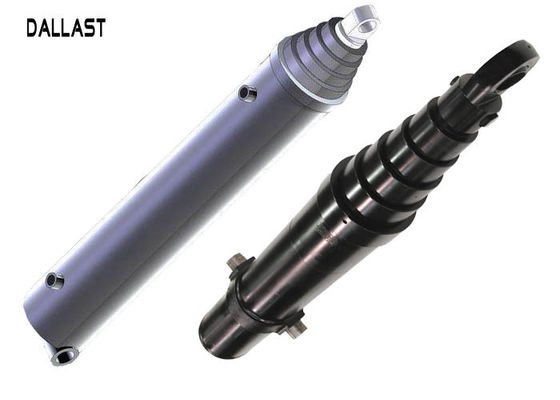

Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome

Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome

    • Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome
    • Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome
    • Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome
  • Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 16-35MPa Temperature: Normal Or High Temperature
    Action Type: Single Acting Rod Material: Steel, Or On Request
    Bore Size: Custom Rod Size: Custom

    Telescopic Multi Stage 4 5 Single Acting Hydraulic Cylinder 7 Inch Bore Chrome



    Single acting cylinders transfer force and motion in one direction only; good quality and low noise; the oil way design perfectly and can save the energy, avoid wast; acts on the piston to push the piston rod out



    Application:

    The single acting telescopic hydraulic cylinders produced in DALLAST company are mainly used on: tipping trailer; dump truck; side tipping vehicle;compressed equipment,etc.



    piston rod

    Material: 35#, SAE1045(45#), 35CrMo, 42CrMo4, etc



    Technical Treatment:Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre





    seal kits



    Hallite, NOK, SKF, Parker etc.



    delivery time



    We are factory and can assure the prompt delivery time
    package

    Packing can be customized, often using standard export wooden case packing



    Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.



    And we can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.



    Features:

    When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement; samples can be provide to you before starting cooperation; the most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Quality control:

    1. We have professional quality control department,every step from raw material to finished product

    is in the same factory,each procedure will be tested by professional inspector.

    2. Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .

    After hydraulic cylinder is assemblied , Pressure test would be carried out one by one.We ensure the

    testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic

    cylinder must be tested without any leakage.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.





    Telescopic Multi Stage Single Acting Hydraulic Ram 7 Inch Bore Chrome
