Place of Origin: | Qingdao |
Brand Name: | DALLAST |
Certification: | GS, RoHS, CE, ISO9001 |
Model Number: | custom |
Minimum Order Quantity: | 1 pieces |
---|---|
Price: | negotiation |
Packaging Details: | wooden case, carton box |
Delivery Time: | 15-25 work days per year |
Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
Supply Ability: | 50000 pieces |
Power: | Hydraulic | Pressure Direction: | Single Acting |
---|---|---|---|
Pressure: | 16-35MPa | Temperature: | Normal Or High Temperature |
Seal Kit: | Nok, Hallite, Parker Etc | HS Code: | 8412210000 |
High Light: | single acting telescopic cylinder,industrial hydraulic cylinders |

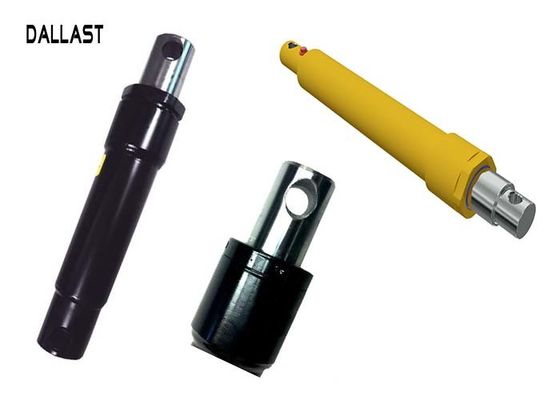

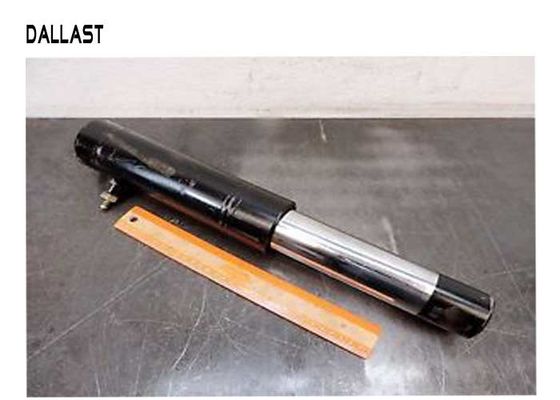

Standard Single Acting Hydraulic Cylinder Hollow Plunger Chrome for Snow Plow
DALLAST manufactures Hydraulic Cylinders for snow plows and snow equipment. In our standard line we offer 1 3/4" to 2 1/4" ram type cylinders. DALLST has various designs including a v-packing design with urethane wiper, chrome rod seal design and a heavy duty welded design to accommodate side loading in high shock applications. Custom and double acting cylinders are available on request.
Features:

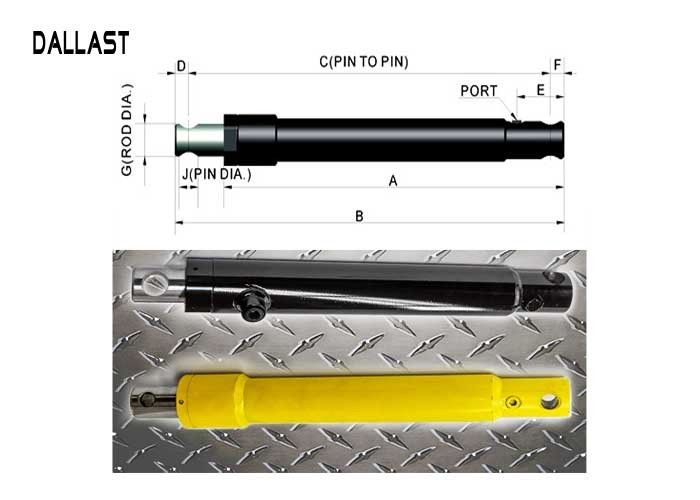

Hollow hydraulic cylinder Size:
Bore Size: 0.5" ~ 10"
Stroke: 2" ~ 100"
Rod size: 1"~10"
Working Pressure: 2500PSI (21MPa) ~ 4000PSI (28MPa)
Working Temperature: -20oC ~ 100
Advantages:
1. Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
2. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
nuts backing off.
3. Single-acting cylinders transfer force and motion in one direction only.
4. Acts on the piston to push the piston rod out.
5. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.
6. All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application.
Warranty:
We offer 12 months warranty.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
