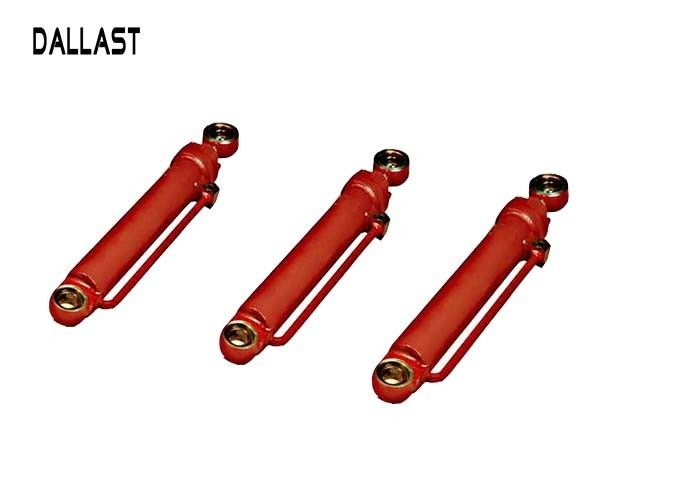

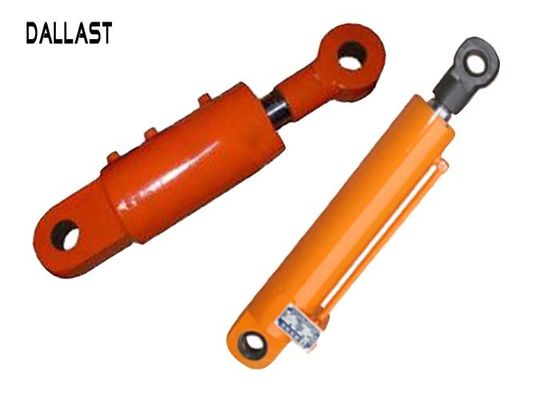

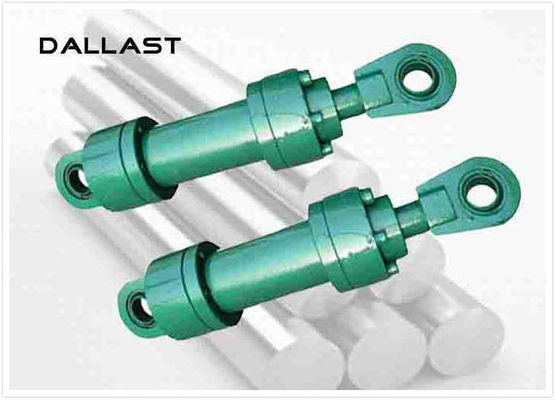

RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe

RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe

    • RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe
    • RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe
    • RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe
  • RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Temperature Power: Hydraulic
    Pressure: Normal Pressure Piston: High Grade Ductile Iron
    Piston Seal: Urethane Seal, Hyva, Parker Etc. Painted: Semi-gloss Black, Gray, Red Etc.

    Farm Hydraulic Cylinders Piston Double Acting Chrome Rodfor Tractor Backhoe



    Benefits:

    Piston rod: Stainless steel, alloy steel, carbon steel etc.

    End cap: Casting seal

    Mounting style: Pins and clips included

    Rod wiper: Urethane snap in

    Packing: Goods are packed with export standing standard

    Warranty: We offer 12 months warranty

    Low noise:Good quality and low noise

    Low energy:The oil way design perfectly and can save the energy,avoid wast



    Many mounting styles

    Several bore sizes and in varying strokes

    Many of these sizes are available



     type

    operating pressure

    (Bar)

    diameter of rod(mm)

    total stroke

    (mm)

    closed length

    (mm)

    cylinder bore (mm)
    HSG80/50*190-800 160 80 190 800 80
    HSG80/50*210-510 230 80 210 510 75
    HSG70/30*760-1055 340 70 760 1055 75
    HSG40/22*270-495 210 40 270 495 100
    HSG50/25*150-800 203 50 150 800 90
    HSG63/35*500-780 109 63 500 780 110
    operating temperature -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen
    speed range speed range of operation (excluding cushion parts) is less than 200mm/s



    Tips:

    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Installation method:

    The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Delivery:

    1.We export from Qingdao port by sea.

    2. Goods will be delivered on time.

    3. Goods can arrive at the destination safely.



    RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe



    RoHS Farm Hydraulic Cylinders Piston Double Acting Chrome Rod for Tractor Backhoe
