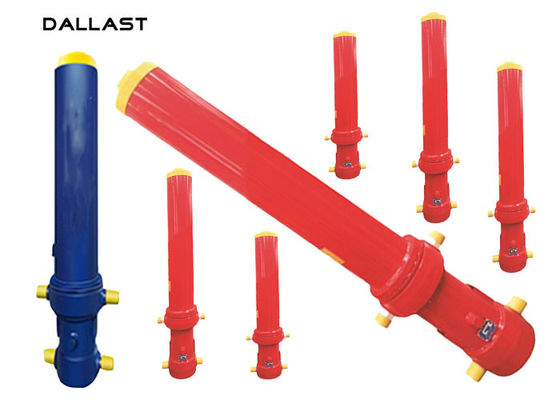

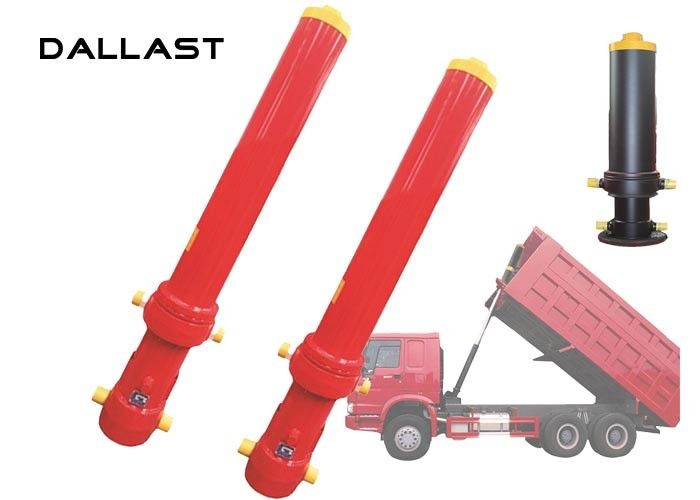

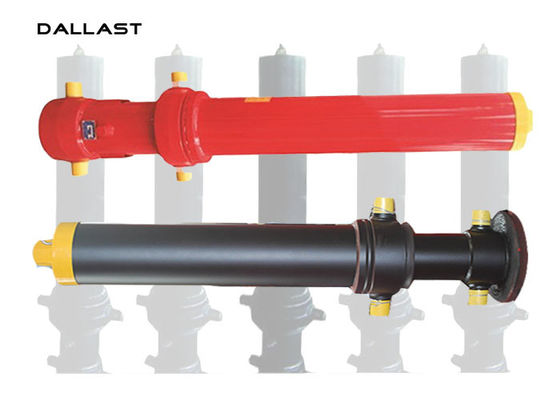

4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram

4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram

    • 4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram
    • 4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram
    • 4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram
  • 4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Capacity: OEM,ODM,Sample Working Temperature: -30℃-80℃
    Usage: Dump Trailer Cylinder Diameter: 80 Mm
    Structure: Multi Stage Hydraulic Cylinder Standard: Standard
    High Light:

    dump truck hydraulic ram

    ,

    dump truck telescopic cylinder

    4 6 Inch Bore Single Acting Dump Trailer Hydraulic Cylinder For Sale

    DALLAST company is professional manufacturers of the hydraulic cylinder, valve locks and complete sets of hydraulic Hydraulic cylinder system , we can independent research and development various specifications of middle and high hydraulic cylinder.

    We can also design according to customer's technical requirements, manufacturing of various national standard, non-standard hydraulic cylinders, applicable to all kinds of engineering, water conservancy, metallurgy, mining, oil and other industries.





    Application included

    Agricultural Equipment

    Aerial Work Platforms

    Aerospace – Aircraft Support, Hangar Doors

    Cemetery and Mortuary Equipment

    Commercial Fishing Equipment

    Food Processing Equipment

    Home Leisure – Pool Covers, Shore Stations

    Material Handling Equipment

    Medical Industry – Wheelchairs Lifts and Gurneys

    Military Equipment

    Pleasure Vehicles – RV Levelers, Slide outs, Yacht Davits, Swim Platforms, Shore Stations

    Specific Hardware: Cement Saws, Scissor Lifts

    Theatrical and Production Equipment

    Transportation – Trucking, Tailgates, Hoists, Haulers, Vehicle Recovery Equipment

    Work Tables – Industrial, Medical, Massage and Veterinary

    Work Trucks – Bucket Trucks, Fire Truck Apparatus, Street Sweepers





    Hydraulic Cylinder

    Owing to profound experience of the industry, we are engaged in offering a wide gamut of Hydraulic Cylinder. These cylinders are manufactured using high grade raw material which we source from reliable vendors of the market. All the cylinders offered by us are widely used in various industries for their high durability. Further, a team of diligent experts makes sure that only high-quality material is delivered at clients’ location within the committed time.



    Quality Control

    1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949: 2009)

    2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.

    3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding

    Quality of the seal parts



    FC type hydraulic cylinder

    Mounting distance: 343 mm

    MODEL NO. Stage

    Largest Stage Diameter

    mm

    Stroke

    mm

    The largest sleeve OD

    mm

    FC-3-110-3205 3 110 3205 168
    FC-3-110-3460 3 110 3460 168
    FC-3-129-2980 3 129 2980 218
    FC-3-129-3205 3 129 3205 218
    FC-3-129-3460 3 129 3460 218
    FC-3-129-3880 3 129 3880 218
    FC-3-129-4270 3 129 4270 218
    FC-4-129-4280 4 129 4280 218
    FC-4-129-4280 4 129 4280 218
    FC-4-129-5180 4 129 5180 218
    FC-4-149-3680 4 149 3680 218
    FC-4-149-3980 4 149 3980 218
    FC-4-149-4280 4 149 4280 244
    FC-4-149-4620 4 149 4620 244
    FC-4-149-4940 4 149 4940 244
    FC-4-149-5180 4 149 5180 244
    FC-4-149-5460 4 149 5460 244
    FC-4-169-4280 4 169 4280 244
    FC-4-169-4620 4 169 4620 244
    FC-4-169-4940 4 169 4940 244
    FC-4-169-5180 4 169 5180 244
    FC-4-169-5460 4 169 5460 244
    FC-5-169-5355 5 169 5355 244
    FC-5-169-5780 5 169 5780 244
    FC-5-169-6180 5 169 6180 244
    FC-5-169-6830 5 169 6830 244
    FC-5-169-7130 5 169 7130 244
    FC-5-169-7630 5 169 7630 244
    FC-5-169-8130 5 169 8130 244
    FC-5-169-9030 5 169 9030 244
    FC-5-169-9530 5 169 9530 244
    FC-4-191-5460 4 191 5460 274
    FC-5-191-5780 5 191 5780 274
    FC-5-191-6180 5 191 6180 274
    FC-5-191-7130 5 191 7130 274
    FC-5-191-7630 5 191 7630 274
    FC-5-191-8130 5 191 8130 274
    FC-5-191-9030 5 191 9030 274
    FC-5-191-9530 5 191 9530 274
    FC-5-214-7610 5 214 7610 274
    FC-5-214-9030 5 214 9030 274

    4 6 Inch Bore Dump Trailer Hydraulic Cylinder , Telescoping Hydraulic Ram
