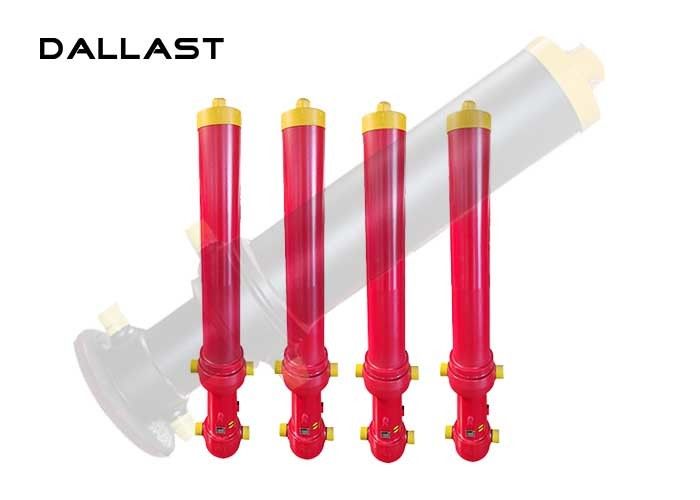

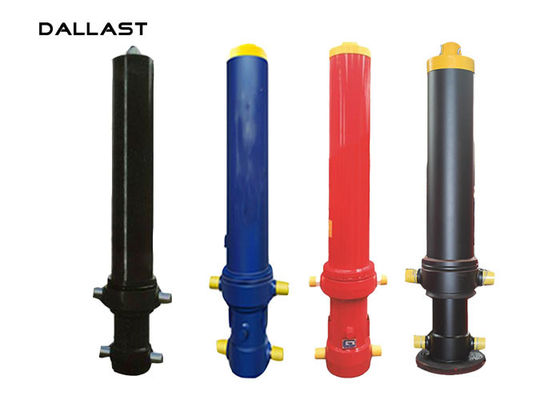

1 Ton Stainless Dump Trailer Hydraulic Cylinder , One Way Hydraulic Ram

1 Ton Stainless Dump Trailer Hydraulic Cylinder , One Way Hydraulic Ram

    • 1 Ton Stainless Dump Trailer Hydraulic Cylinder , One Way Hydraulic Ram
    • 1 Ton Stainless Dump Trailer Hydraulic Cylinder , One Way Hydraulic Ram
    • 1 Ton Stainless Dump Trailer Hydraulic Cylinder , One Way Hydraulic Ram
  • 1 Ton Stainless Dump Trailer Hydraulic Cylinder , One Way Hydraulic Ram

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Installation: Front End Loader Mounting Style: Front Flange
    Service: After-sale Service Power: Hydraulic
    Origin: China Specification: Steel

    1 Ton Stainless One Way Hydraulic Ram Dump Trailer Hydraulic Cylinder



    Product

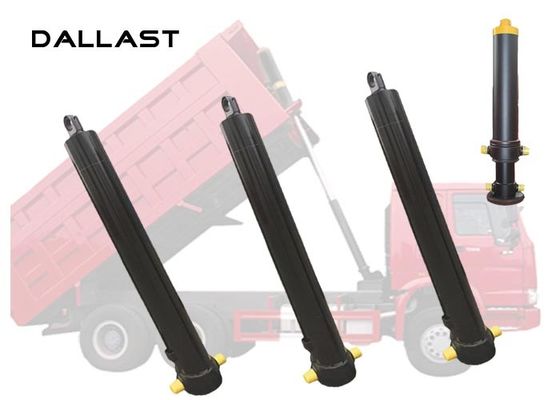

    This type of hydraulic cylinder is used in front-installed lifting frame on tipping vehicle. Installing distance is small, so it is convenient to install and avoid the intervene during the lifting period. It has deflating kit, and can remove the system air conveniently to make sure of normal working of hydraulic system. Sealed system, made by imported technology, is of property good, and low friction, so the life is long.



    Specification

    FC type

    NO FC-4-129-4280 FC-4-129-5180 FC-4-149-3680 FC-4-149-3980
    Largest Stage
    Diameter
    129mm 129mm 149mm 149mm

    Stroke



    4280mm 5180mm 3680mm 3980mm
    The largest
    sleeve OD
    218mm 218mm 218mm 218mm
    Mounting
    distance
    343mm 343mm 343mm 343mm



    FE type

    No FE-4-149-4280 FE-4-149-4940 FE-4-149-4620 FE-4-169-4280
    Stage 4 4 4 4
    Largest Stage
    Diameter
    149mm 149mm 149mm 169mm
    Stroke 4280mm 4940mm 4620mm 4280mm
    Mounting
    distance
    1450mm 1529mm 1484mm 1394mm

    DALLAST can customze hydraulic cylinder of all kinds for you.



    step by step:



    1. Send us the size drawing of your request cylinder. or send us the sample cylinder you need by air shipment.



    2. We will give you price.



    3. If you agree, we will make invoice to you, and send detail size drawing for you to check.



    4. We will start production after you confirm this detailed size drawing.



    5. Finish production, take photo for you to confirm, and then start to ship.





    DALLAST Lifting Hydraulic Oil Cylinder

    DALLAST is one of the largest manufacturer in China. There are 5 series Hydraulic Oil Cylinders in DALLAST:HG single-action piston type hydraulic cylinder, SG double-action piston type hydraulic cylinder; TG single-action telescopic hydraulic cylinder; TMG double-action telescopic hydraulic cylinder and TSG double-action telescopic hydraulic cylinder.



    DALLAST prepositive hydraulic oil cylinder series

    DALLAST standard hydraulic oil cylinder series include telescopic prepositive cylinder, prepositive cylinder with bore ring and double bore rings, DALLAST company also produces prostrate cylinder, single action and double action cylinder. The maximum stroke can be 6.18 meters and the maximum lifting power can be 100 MT.





    Other information:

    - Used in earthmoving machines, machine building applications, petrochemicals, marine applications, plastics, automobiles, dishes ends

    - Available in multistage (telescopic), single acting, double acting, tie rod, cushion at either or both the ends twin pistons in dia ranging from 20 to -1000mm and stroke up to 5200 mm with max pressure up to 350bar

    - Used for PU seals, bronze filled teflon, chevron, asbestos impregnated nitride seals, rod seals

    - The cylinders are either machined from imported own carbon. seamless tubes or steel casting duly ground and honed

    - Piston rod of EN-8 is ground and hard chrome plated
