220v AC 2.2kw Remote Control Hydraulic Power Unit / Vertical Mount Power Pack

220v AC 2.2kw Remote Control Hydraulic Power Unit / Vertical Mount Power Pack

    • 220v AC 2.2kw Remote Control Hydraulic Power Unit  /  Vertical Mount Power Pack
    • 220v AC 2.2kw Remote Control Hydraulic Power Unit  /  Vertical Mount Power Pack
    • 220v AC 2.2kw Remote Control Hydraulic Power Unit  /  Vertical Mount Power Pack
  • 220v AC 2.2kw Remote Control Hydraulic Power Unit  /  Vertical Mount Power Pack

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Color: Any Color Warranty: One Year
    Material: Stainless Steel Pressure: Medium Pressure
    Model No.: Customized Type: Hydraulic Power Units

    220v AC 2.2kw Remote Control China Hydraulic Power Unit / Vertical Mount Power Pack



    Key Features:

    · The hydraulic power units are offered for industrial, mining, water conservancy, agriculture, electric power, machine tool and construction applications.

    · Standard, compact and custom power units are available.

    · Electric control system (wire or wireless type) is optional.

    · Any kind and size of hydraulic cylinder to matching the system is optional.

    · Hydraulic power units consisting of pumps, reservoirs, relief valves, filters, sight gages, and filler breathers deliver reliable power for hydraulic systems.



    Parameter:



    Cylinder: precision machined and polished steel
    Piston Rod : ground, polished and quenched. long service life;
    Piston: Ductile Iron, for increased durability
    Cap/Head: precision machined steel
    Seals: Parker/Nok/Hallite/DZ ;
    Ports: NPT/G

    1 product name 220v AC 2.2kw remote control china hydraulic power unit for industrial machine / vertical mount power pack
    2 Motor Volt 220v
    3 Motor Power 1.5kw ,2.2kw, 3kw
    4 Rated Speed 2800rpm
    5 Displacement 2.5ml/r,1.6ml/r,2.1ml/r
    6 System Pressure 20mpa,16mpa,12mpa
    7 Tank Capacity 3.5L,6L,10L
    8 Certification ISO9001, ISO40000
    9 service OEM , OD



    Hydraulic power pack units Applications:


    a.Car lift with our AC hydraulic power unit includes a compact sized hydraulic power unit and hydraulic cylinder.
    b.DC Power Packs for Dump trailer are basic single acting hydraulic power packswith remote control pendant.
    c.Mobile hydraulics for forklifts with our standard and customized DC hydraulic power packs.
    d.No matter what vehicle you are lifting with a scissors lift, our hydraulic power units can power and lift it!
    e.DC power packs with lift gates make loading and unloading goods easy from trucks or pickups.
    f.Dock leveler with small AC hydraulic power units are most common in the logistics industry.



    FAQ:



    1. Q: How to know more about the Hydraulic cylinder?

    A: Just view the quick details, all the information is correct.



    2. Q: If I want to do my own size hydraulic cylinder, how should I do?

    A: Contact with me in TraderManager, or just send me a mail, or add my Skype: handa886. We will offer you quickly.



    3. Q: How should I do, If I want to place an order?

    A: Send me an inquiry, then I will check with you for all things. After all things cearly, we will make a PI for you, details see order process.



    4. Q: Is there any warranty about the cylinder?

    A: Yes, all our hydraulic parts, we have 1 year warranty.

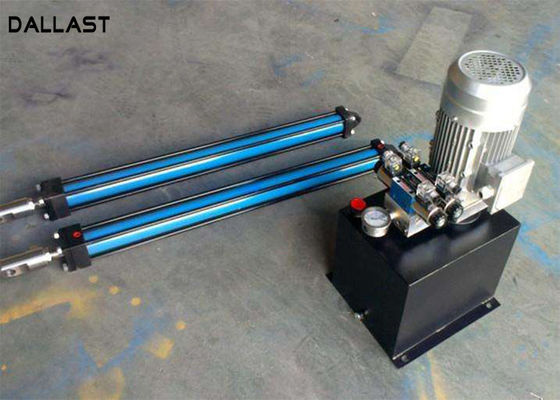

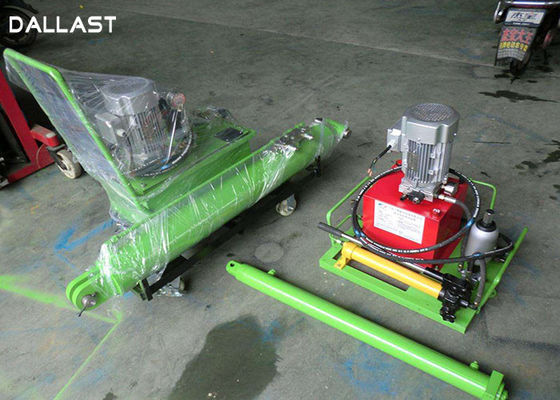

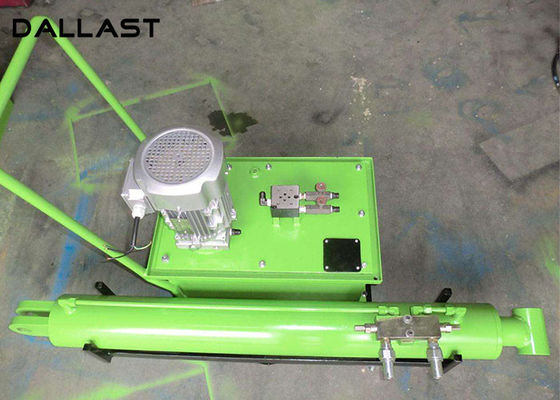

    Product Show:



    220v AC 2.2kw Remote Control Hydraulic Power Unit  /  Vertical Mount Power Pack
