Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder

Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder

    • Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder
    • Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder
    • Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder
  • Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Color: Any Color Seals: Hallite, NOK
    Working Temperature: -30℃-80℃ Model Number: 3/4/5/6 Stage
    Type: Hydraulic Single Cylinder Painting: Anti Rust Painting

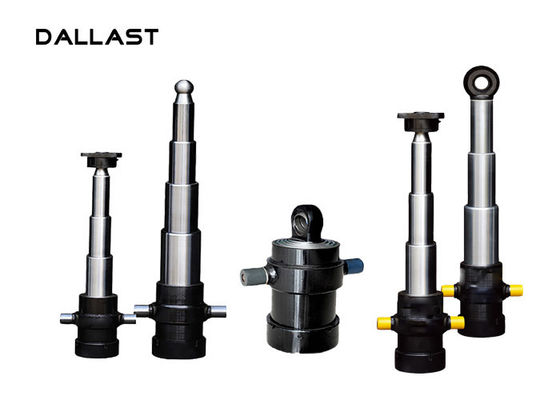

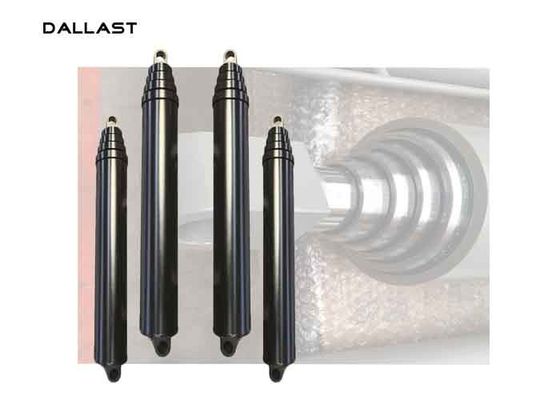

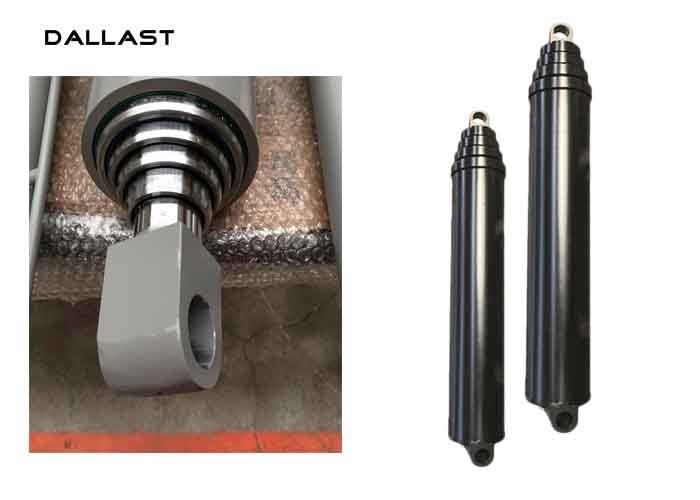

    Telescopic Long Stroke Multi Stage Single Acting Hydraulic Cylinder

    TG Series Hydraulic Cylinder

    Working pressure: 16MPa

    Model Bore diameter Installation distance Stroke
    (mm) (mm) (mm)
    4TG-E180*800 180 140 800
    4TG-E160*800 160 140 800
    4TG-E150*830 150 160 830
    4TG-E140*800 140 140 800
    4TG-E140*730 140 140 730
    4TG-E135*800 135 140 800
    4TG-E135*730 135 140 730
    4TG-E130*750 130 110 750



    Stage:3



    Telescopic front end hydraulic cylinder (Inch)



    Model No. First Stage Diameter Stroke(A) Closed Length(B) Open Length(C)
    3TG F5*72 5"

    72"

    (1829mm)

    37.19" (945mm) 109.19" (2773mm)
    3TG F5*84 5''

    84"

    (2134mm)

    41.19" (1046mm) 125.19" (3180mm)
    3TG F5*107 5" 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
    3TG F5*126 5" 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
    3TG F6*86 6" 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
    3TG F6*104 6" 103.94" (2640mm)

    47"

    (1194mm)

    150.94" (3834mm)
    3TG F6*107 6" 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
    3TG F6*111 6''

    111"

    (2819mm)

    49.94" (1268mm) 160.94" (4087mm)
    3TG F6*120 6''

    120"

    (3048mm)

    53.5" (1359mm) 173.5" (4407mm)





    Telescopic cylinders provide a long stroke from a very compact retracted length. DALLAST has experience designing telescopic for many industries and applications and can work with you to design a single acting, a single acting/double acting combination, or a double acting design. SINGLE ACTING Telescopic cylinders are the simplest telescopic design. A single acting cylinder is extended using hydraulic pressure but is retracted using external forces (usually gravity), once the hydraulic pressure is removed.

    SINGLE/DOUBLE COMBINATION Telescopic cylinders are a single acting telescopic cylinder where one or more of the smaller stages are double acting. A typical application is a mast raising design on a drilling rig where the load must be pulled over center until gravity can take over to retract the cylinder.





      Max Min
    Cylinder bore: 280 mm 10 mm
    Piston Rod Diameter: 280 mm 10 mm
    Retract Length: 3500 mm 50 mm
    Stretch Length(Single stage cylinder): 6500 mm 60 mm
    Stretch Length(Dual stage cylinder): 12500 mm 60 mm
    Working Pressure: 4500PSI 1000PSI



    Working pressure 10MPa-32MPa
    Stroke 2000mm-12000mm
    Color Black, Blue, White, Yellow, Red, Green etc
    Plunger 27 SiMn,20#, 45# seamless steel tube with quenched and tempered
    Certification ISO9001: 2008 TS16949,SGS
    Package Pallet or wooden case suitable for export standards
    Warranty One year after the goods arrive at the port of destination





    In order for you to get a better price and technical solutions.Please provide the following required parameters:
    1. Bore diameter;
    2. Rod diameter;
    3. Stroke;
    4. Working pressure;
    5. Front and back end mount type;
    6. Using frequency;
    7. Work Environment;
    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.



    About us:
    Our skilled craftsmen, using the newest methods and technologies, allow us to produce the durable, high quality, hydraulic cylinders that today's industrial world demands. We offer a solid product, competitive prices, on-time deliveries, quick order to ship times and we stand behind our product before and after the sale. Whether a single, custom cylinder or a mass order, we can deliver hydraulic cylinders of the highest quality, the first time!





    FAQ

    Min order : According to customized or Weight
    Delivery time : Within 45 days
    Packing : Standard export package or customized
    Payment terms: Batch order 30% TT deposit, 70%TT balance before loading
    Shipment transport : Usually sea transport or customized
