Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks

Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks

    • Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks
    • Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks
    • Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks
  • Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Delivery Time: 15-35 Days Working Medium: Hydraulic Oil
    Material: Stainless Steel Color: Red, Black, Blue, Etc.
    Power: Hydraulic Special Cylinder Type: Custom Hydraulic Cylinder
    Warranty: One Year Available Temperature: -40 ℃ To 80 ℃





    Double Acting Welded Hydraulic Piston Type Cylinders Customized Industrial Trucks







    Special Features:

    • High-strength alloy steel construction.
    • Chrome-plated piston rods resist wear and corrosion.
    • Special bearing design helps prevent galling for long life and trouble-free performance.
    • Plyrethane seals and wipers to reduce contamination, extending cylinder life.
    • Hardened saddles keep top bearing and plunger from jamming.
    • Saddle grooves help prevent slipping.
    • Heavy-duty spring enables consistent fast plunger retraction.
    • All models come with fast-flow quick-connectioin coupler and dust cap.
    • May be used in any position.
    • Hollow plunger design allows for both pull and push forces.



    Energy has manufactured high quality hydraulic tie rod cylinders for over 40 years. These are built tough for agricultural, industrial, and mobile applications. Energy's current high pressure tie rod hydraulic cylinder line has a 3,250 psig (225 bar) working pressure capability; significantly higher than most competitors. These quality cylinders are made from durable materials that help them to withstand conditions that would damage many other cylinders. They are offered in both ASAE standard models and a wide variety of custom stroke lengths.





    Advantages of Double Acting Cylinder:



    A double acting cylinder alternates cycles of pressurized fluid to both sides of the piston and creates extend and retract forces to move the piston rod, permitting more control over the movement. Using a control system made up of a 2-, 3-, 4- way position valve would be required to achieve the desired movement for your application.

    What it comes down to when selecting which type of cylinder is the amount of control that you need versus what you can afford to have in place. If the heavy lifting, so to speak, is only in one direction, a single acting hydraulic or pneumatic cylinder may be your best bet. If you are moving a part in two directions and need to have full control, it’s best to have a double acting hydraulic or pneumatic cylinder. If you have any other questions regarding Single acting cylinders and Double acting Cylinders or would like our help make you create a custom hydraulic cylinder please reach out to us via email:bruce@dallast.com.



    Hydraulic Cylinder Solutions for all Applications:



    Our industrial hydraulic cylinders are built to work in the toughest conditions. Developing solutions in partnership with our customers has allowed us to continually create and expand our portfolio of hydraulic cylinders that meet global safety standards for any environment you work in. DALLAST has rendered hydraulics even more capable, from mill-type to tie rod hydraulic cylinders; we have your hydraulic cylinder for safe and reliable lifting. This gives you smarter, reliable cost-optimized solutions with an extended lifecycle and intelligent components.



    Parameter:



    We manufacture all kinds of hydraulic cylinders. We can also make customer hydraulic cylinders according to your requirements.

    To get an immediate quotation, please provide us with the following necessary parameters:

    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method



    Packaging & Shipping:
    With standard export carton /wooden case packing, or as customer’s requirements.



    Double Acting Welded Hydraulic Piston Type Cylinders Customized Industrial Trucks



    Mode Hydraulic Cylinder- HSG
    Material CK20, Ck45, 42CrMo
    Type HSG series
    Color Orange, red, blue, black, yellow
    Power Hydraulic
    Hardness HRC45-55
    Stroke 1650mm
    Shaft Diameter 40 - 500mm
    W.P. 160bar
    Structure Piston cylinder
    Certificate ISO 9001:2008, CE
    OEM/ODM Welcome
    Packing And Delivery 1 - 20"GP
    Application Construction, metallurgical, mining, agricultural, forestry machinery, etc.
    All our hydraulic cylinder products with 1 year warranty period.
    If happened problems in the usage of warranty time, please send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air. And urgent questions, please make an call for us.



    Quality Custom High Pressure Hydraulic Cylinder:

    Serious working attitudes, high working efficiency, and outstanding work are the essence of the Company's growth principle. We assure you of on-time delivery of finest High Pressure Hydraulic Cylinder backed by prompted and careful after-sales service.


    Cylinder Details:
    1. Mounting type: turning, flange, earring, according to your demand.
    2. Seal: use parker, NOK and other famous seal parts to ensure the quality.
    3. Piston rod: 20#, 45# steel with high frequency quenching.
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder.
    5. Size:
    Bore: 20-500mm (7/8-20"), stroke can reach to 5000mm.
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.





    Product Show:

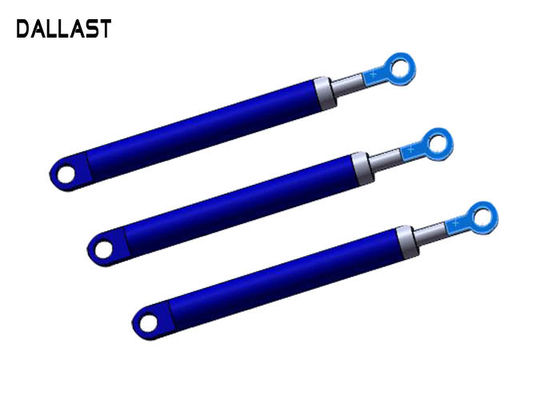

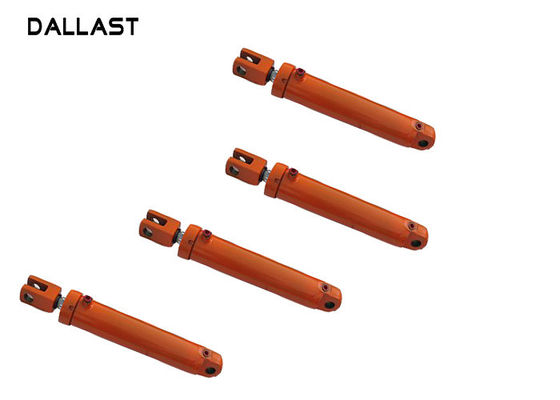

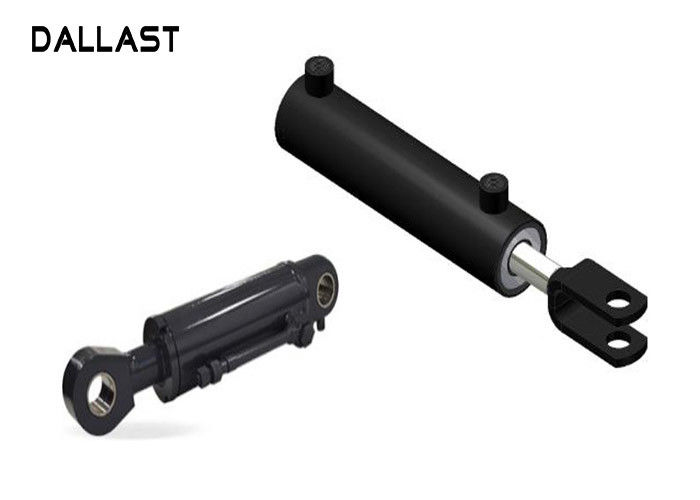

    Piston Type Cylinders Double Acting Hydraulic Ram Customized For Industrial Trucks
