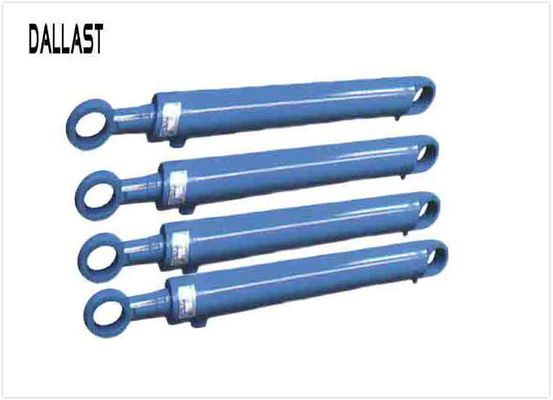

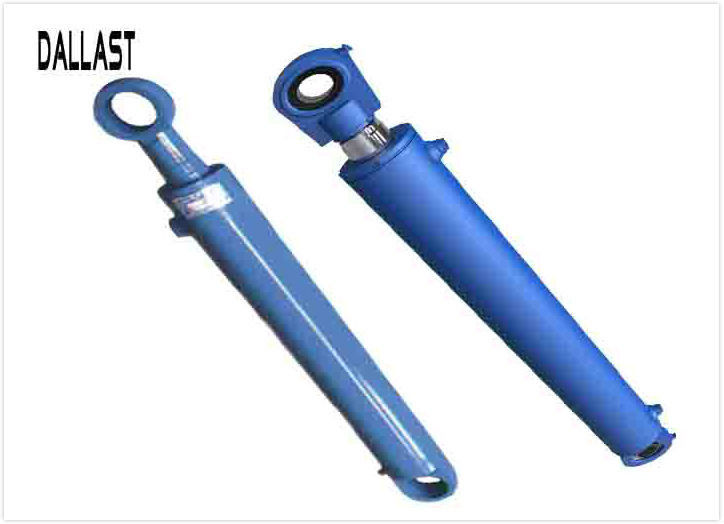

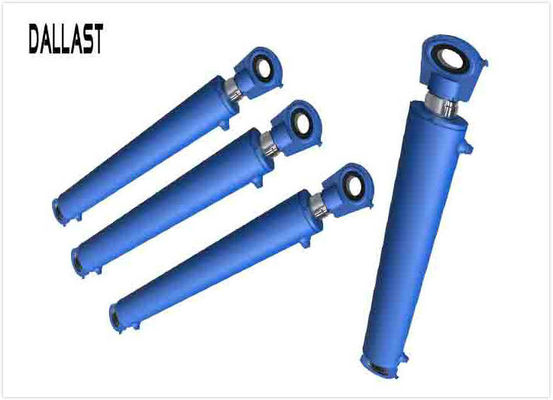

Garbage Truck Double Acting Hydraulic Ram with Piston Chroming Rod

Garbage Truck Double Acting Hydraulic Ram with Piston Chroming Rod

    • Garbage Truck Double Acting Hydraulic Ram  with Piston Chroming Rod
    • Garbage Truck Double Acting Hydraulic Ram  with Piston Chroming Rod
    • Garbage Truck Double Acting Hydraulic Ram  with Piston Chroming Rod
  • Garbage Truck Double Acting Hydraulic Ram  with Piston Chroming Rod

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 10-35 MPa Temperature: Normal Temperature
    Action Type: Double Acting OD: Custom
    ID: Custom Structure: Hydraulic Cylinder Piston
    High Light:

    double acting hydraulic cylinder

    ,

    double acting ram cylinder

    Hydraulic Ram for Garbage Truck Double Acting with Piston Chroming Rod



    Sanitation trucks are critical in our society.Built to rugged and high quality standards,we rely on this equipment to keep our streets clean.The brute force and high duty cycle of the hydraulic system is critical to maximize efficient operation.



    Advantages:

    Bore 2"

    Stroke 24"

    Rod 1.25"

    Retracted 32"

    Extended 56"

    - Pressure tested with ports sealed from the factory

    - Double acting cylinder

    - Cross tube mounting style



    Different parameters of regulation



    Highly recommended for applications where high shock loads and internal pressure spikes can be expected. With any stroke length and a wide range of fixing elements. Rod end connections.



    Fuel saving. Reduce noise level. Compact and low-weight solution. Lower cost than other hydraulic solutions.





     Mode NO

    Pressure

    (Bar)

    Capacity

    (ton)



     Cylinder bore

            (mm)



    The diameter of rod (mm)

       Stroke

      (mm)

    Mounting distance

    (mm)

    HSG800.55A.012 34 23 80 32 200 535
    HSG600.55B.2a 54 43 75 32 110 423
    HSG00.55C.2a 63 25 75 32 110 423
    HSG700.55D.011 51 64 100 40 200 516
    HSG1004.55.8 87 12 90 35 200 535
    TG1204.551.1 48 115 100 40 185 535
    TG1854.551.2 93 65 110 70 182 535
    TG1854.551.3 180 89 110 70 182 535



    Please note that the regularly stocked cylinders above. If you are interested in our hydraulic cylinders for agricultural machinery, please feel free to contact our office and sent us your drawings to place an order for quick delivery.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Piston Seals:

    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Warranty:

    We offer 12 months warranty.



    Tips:

    Do you need special cylinders?

    Our technicians will help you to design them and we will manufacture them according to your requirements.

    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.



    A. The drawing details are as follows.
    Bore size

    Stroke length



    Rod diameter

    Mounting type



    Mounting length

    Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure



    Garbage Truck Double Acting Hydraulic Ram  with Piston Chroming Rod

    Garbage Truck Double Acting Hydraulic Ram  with Piston Chroming Rod
