Place of Origin: | Shandong, China |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Box or Pallet or as your requirements |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union, L/C, D/P |
Supply Ability: | 1 Piece Per Year |
Delivery Time: | 15-25 Days | Work Temperature: | Normal Temperature |
---|---|---|---|
HS Code: | 8412210000 | Piston Rod Chrome Plated: | Cr, Ni, Or Ceramic |
Available Temperature: | -40℃ To 80℃ | Power: | Hydraulic |
High Light: | excavator hydraulic cylinder,heavy duty hydraulic cylinde |
Double Acting Custom Welded Dump Truck Precision Hydraulic Cylinder Piston
Cylinder details:
1. Mounting type: turning, flange, earring, according to your demand.
2. Seal: use parker, NOK and other famous seal parts to ensure the quality.
3. Piston rod: 20#, 45# steel with high frequency quenching.
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder.
5. Size:
Bore: 40-1000mm (7/8-20"), stroke can reach to 10000mm.
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Parameter:
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
Double Acting Dump Truck Hydraulic Cylinder | |
Application: | Agricultural Truck, Dump Truck, Tipper, Construction Vehicle, etc. |
Stroke: | 50mm to 10000mm |
Bore: | 40mm to 1000mm |
Shaft: | 12mm to 500mm ( ½’’ -20’’) |
Work pressure: | 16Mpa to 62Mpa (2250 PSI – 10150 PSI) |
Seal: | Hallite, Parker, Merkel, DingZing, etc. |
Paint: | Red, Grey, Yellow, Black, etc. |
Certificate: | Gs, RoHS, Ce, ISO9001 |
Package: | Bubble-wrap packing, then in wooden case |
Warranty | One Year |
FAQ:
Q1: How long is the production time?
Generally the production time is 15-25 days.
Q2. Compared with Hyva cylinder, what are your cylinder advantages?
1. Tubes are chrome plated.
2. Tubes are quenched and tempered.
Q3. Are you a manufacturer?
Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.
Q4. Do your products come with a warranty?
Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

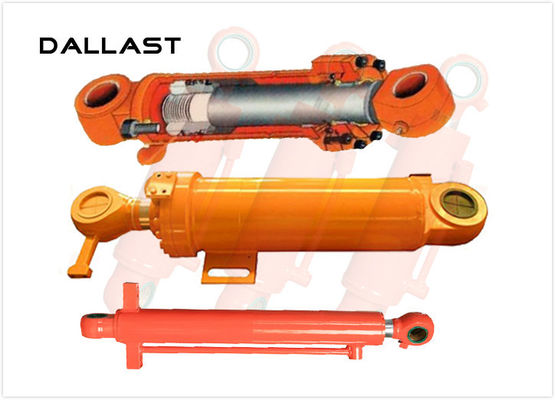

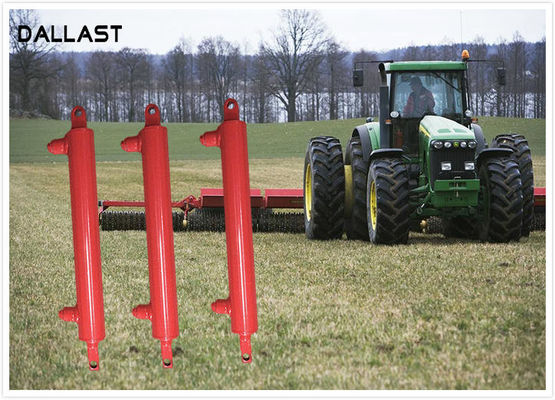

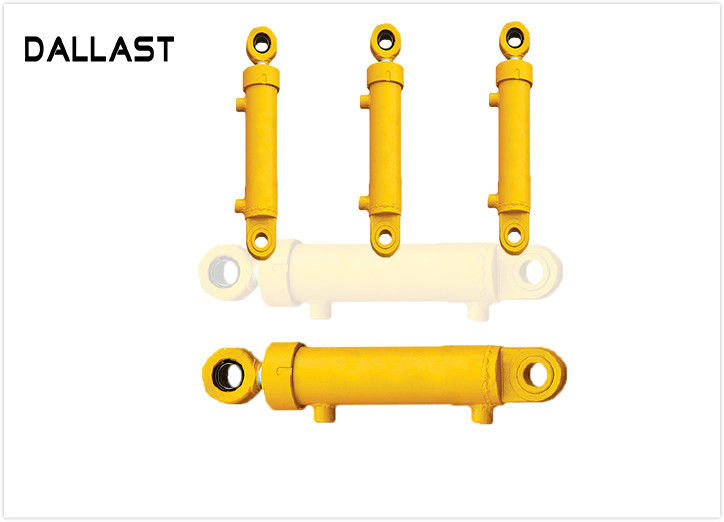

Product Show:
