| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Delivery Time: | 15-25 Days | Work Temperature: | Normal Temperature |
|---|---|---|---|
| Adjusted Form: | Regulated Type | Trademark: | DALLAST |
| HS Code: | 8412210000 | Piston Rod Chrome Plated: | Cr, Ni, Or Ceramic |
| High Light: | dual action hydraulic cylinder,excavator hydraulic cylinder |
||
Double Acting Custom Welded Hydraulic Cylinder Piston for Farm Truck
Parameter:
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
| Double Acting Hydraulic Cylinder | |
| Application: | Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agricultural Truck, etc. |
| Stroke: | 50mm to 5000mm |
| Bore: | 40mm to 1000mm ( 1 ½’’ – 40’’) |
| Shaft: | 12mm to 500mm ( ½’’ -20’’) |
| Work pressure: | 16Mpa to 62Mpa (2250 PSI – 10150 PSI) |
| Seal: | Hallite, Parker, Merkel, DingZing, etc. |
| Paint: | Red, Grey, Yellow, Black, etc. |
| Material: | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc. |
| Certificate: | ABS, Lloyds, SGS, etc. |
| Package: | Bubble-wrap packing, then in wooden case. |
Cylinder details:
1. Mounting type: turning, flange, earring, according to your demand.
2. Seal: use parker, NOK and other famous seal parts to ensure the quality.
3. Piston rod: 20#, 45# steel with high frequency quenching.
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder.
5. Size:
Bore: 20-500mm (7/8-20"), stroke can reach to 5000mm.
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.
Packaging & shipping:
With standard export carton /wooden case packing, or as customer’s requirements.
Our services:
All our hydraulic cylinder products with 1 year warranty period.
If happened problems in the usage of warranty time, please send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air. And urgent questions, please make an call for us.
Three advantages for hydraulic cylinder:
1.Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2.More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3.Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
FAQ:
Q1. What are the same aspects of your cylinder with Hyva cylinder?
1. Same inside structure.
2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's
Q2. Compared with Hyva cylinder, what are your cylinder advantages?
1. Tubes are chrome plated.
2. Tubes are quenched and tempered.
Q3. Are you a manufacturer?
Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.
Q4. Do your products come with a warranty?
Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.
Q5. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please send me your specifications and drawings.
Q6. Can you help me to install or give me advice about what kind of hydraulic cylinder or power pack should I use for specific machine?
Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.

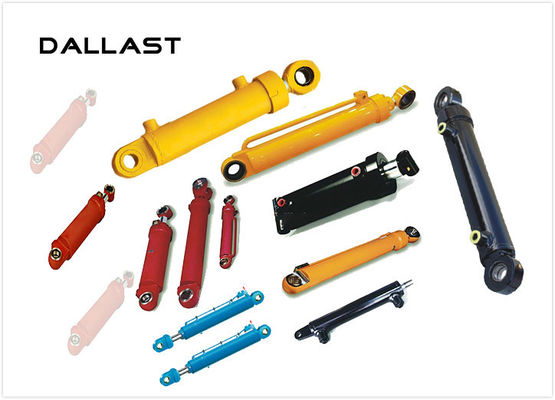

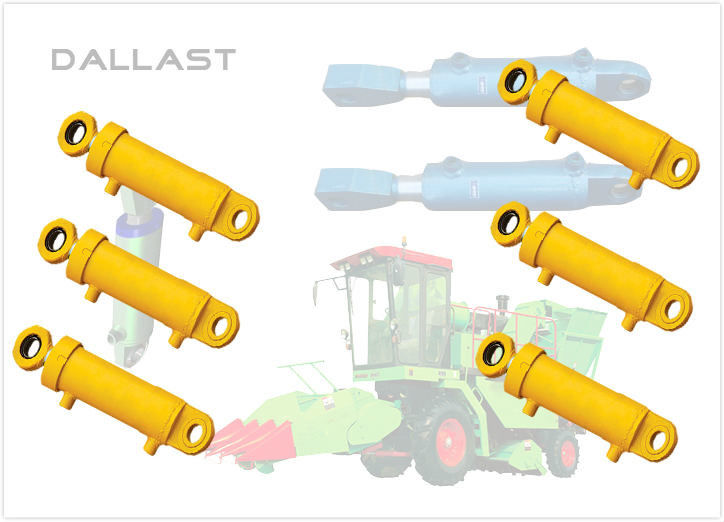

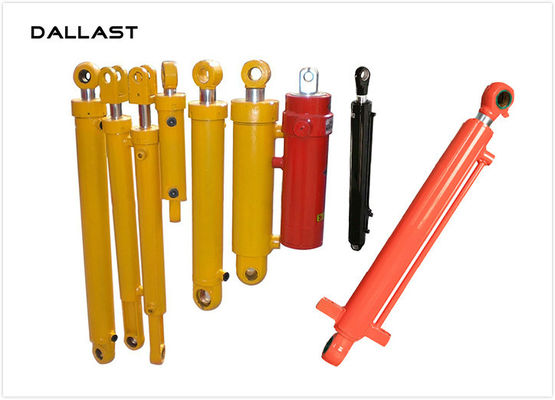

Product Show:
