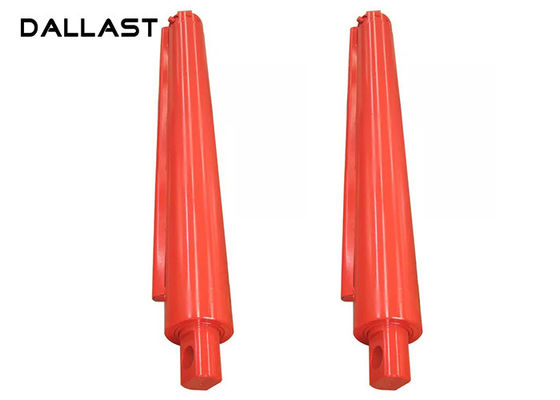

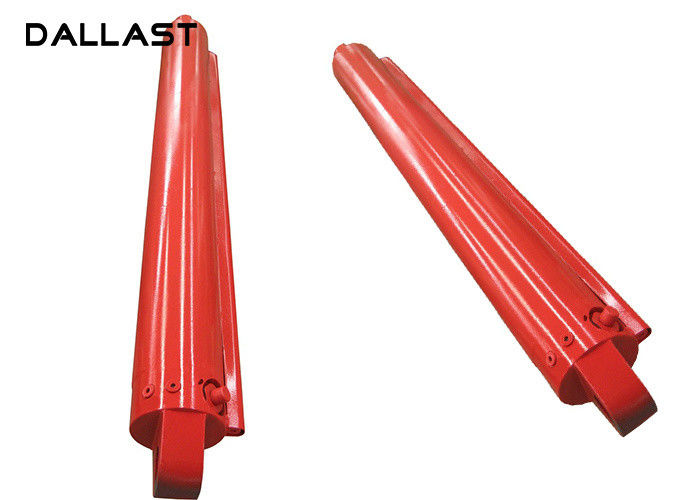

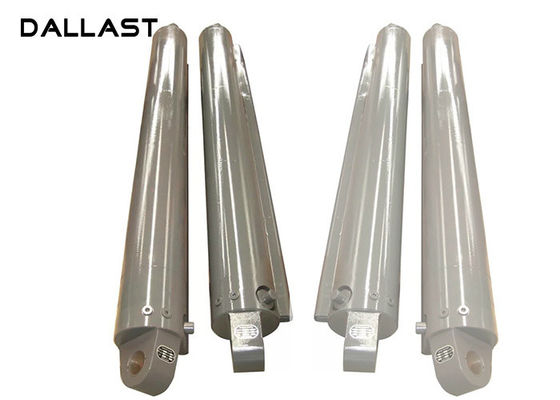

2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge

2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge

    • 2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge
    • 2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge
    • 2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge
  • 2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Product Name: Cylinder Hydraulic Rams For Sale Model: Welded Hydraulic Cylinder
    Usage: Oil Building Bridge ,Filter Press,Construction Machinery Sructure: Piston Cylinder
    Working Pressure: 0-70MPa Mounting Type: Double Earring

    2 Way Chrome 100 ton Large Building Bridge Double Acting Hydraulic Cylinder





    Application: Heavy duty mining, metallurgy, forging, casting, engineering transportation, hydraulic machinery, food processing machinery, machine tools, civil engineering, construction machinery, chemical machinery, medical machinery, injection molding machinery, automated assembly line, Light industry machinery.

    Model

    Tonnage

    (Ton)

    ID

    (mm)

    OD

    (mm)

    Rod Diameter

    (mm)

    Sroke

    (mm)

    Body Height

    (mm)

    Stretch Height

    (mm)

    Pressure

    (Mpa)

    Weight

    (kg)

    QF50-100 50 100 140 70 100 265 390 63 27
    QF50-160 50 100 140 70 160 300 460 63 30
    QF50-200 50 100 140 70 200 340 540 63 34
    QF100-100 100 140 180 100 100 300 425 63 49
    QF100-160 100 140 180 100 160 335 495 63 54
    QF100-200 100 140 180 100 200 375 575 63 60
    QF150-100 150 180 245 125 100 310 435 63 90
    QF150-200 150 180 245 125 160 345 505 63 106
    QF150-250 150 180 245 125 200 385 585 63 120
    QF200-100 200 200 273 150 100 325 450 63 120
    QF200-160 200 200 273 150 160 360 520 63 130
    QF200-200 200 200 273 150 200 400 600 63 145
    QF320-200 320 250 325 180 200 410 610 63 205
    QF400-200 400 280 377 200 200 440 640 63 310
    QF500-200 500 320 426 250 200 460 660 63 436
    QF630-200 630 360 490 280 200 517 717 63 693
    QF800-200 800 400 550 320 200 567 767 63 974
    QF1000-200 1000 450 610 360 200 620 820 63 1337
    QF1200-200 1200 500 670 380 200 640 840 63 1647

    Program before delivery:
    1. Trial Operation Test
    2. Start-up Pressure Test
    3. Pressure-Tight Test
    4. Leak Test
    5. Full Stroke Test
    6. Buffer Test
    7. Testing the Effect of Limit
    8. Load Efficiency Test
    9. Reliability Test

    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test



    2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge

    2 Way Double Acting Hydraulic Cylinder Chrome 100 ton Large Building Bridge
