Long Stroke Crane Hydraulic Cylinder Piston Double Acting Telescopic

Long Stroke Crane Hydraulic Cylinder Piston Double Acting Telescopic

    • Long Stroke Crane Hydraulic Cylinder Piston Double Acting Telescopic
    • Long Stroke Crane Hydraulic Cylinder Piston Double Acting Telescopic
  • Long Stroke Crane Hydraulic Cylinder Piston Double Acting Telescopic

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Product Name: Cylinder Hydraulic Rams Acting Way: Double Acting
    Work Temperature: Normal Temperature Adjusted Form: Regulated Type
    Piston Rod Material: Chrome 45# Carbon Steel Working Method: Straight Trip

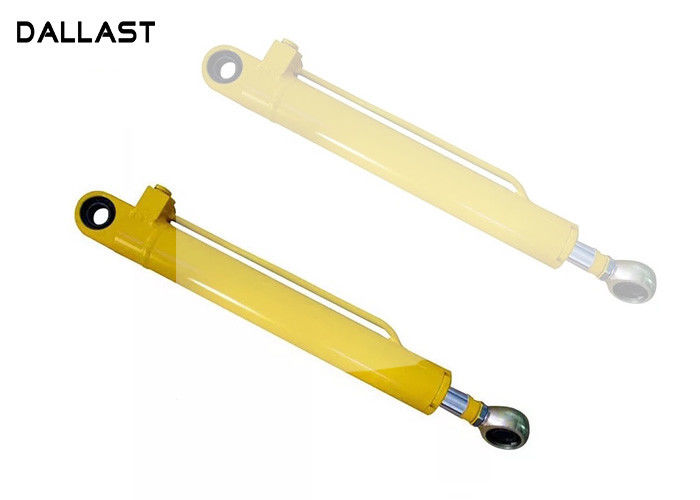

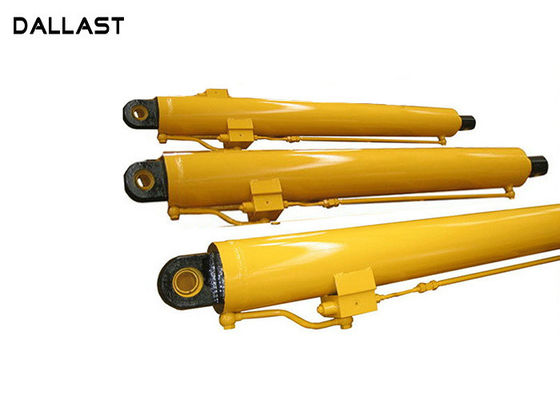

    Double Acting Telescopic Long Stroke Crane Piston Type Hydraulic Cylinder





    Type Engineering Hydraulic Cylinder
    Max. Stroke 3000mm
    Bore Diameter 40 ~ 1000mm
    Rod Diameter 22-480MM



    Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.





          Piston hydraulic cylinder can be divided into single-rod and double-rod two structures, the fixed way by the cylinder fixed and fixed piston rod two, according to the role of hydraulic pressure has a single role and double-acting. In a single role in the hydraulic cylinder, the pressure oil is only provided in a cavity of the hydraulic cylinder, which realizes unidirectional movement of the cylinder by hydraulic pressure and external force (such as spring force, self-weight or external load) in the opposite direction; and the double-acting hydraulic cylinder piston movement in both directions alternately into the two chambers through the oil, the role of hydraulic pressure to complete, it is only one side of the piston with a piston rod, so the effective area of ​​the two chambers are different. In the oil the same amount, the different chamber into the oil, the piston speed of movement is different; in the same load force to be overcome, the different chamber into the oil, the required oil pressure is different, or set in the system pressure, sanitation Garbage truck hydraulic cylinder movement in both directions can overcome the load force is different.



    Long Stroke Crane Hydraulic Cylinder Piston Double Acting Telescopic
