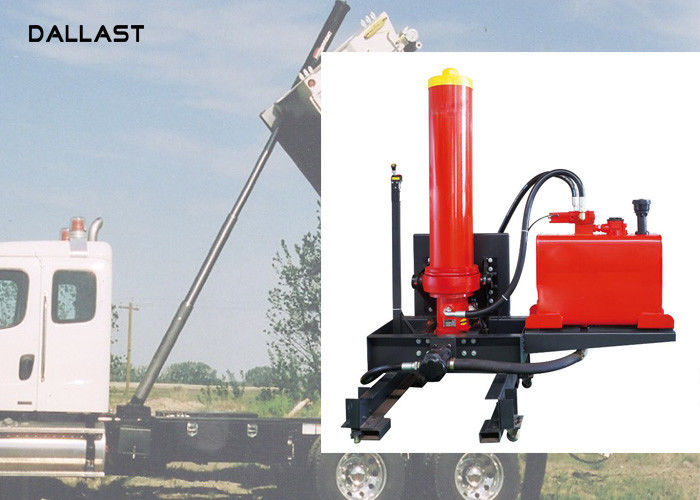

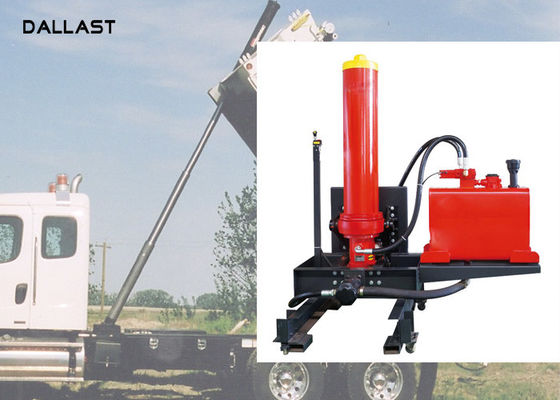

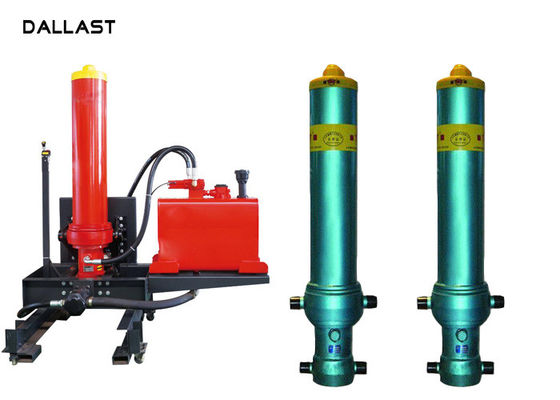

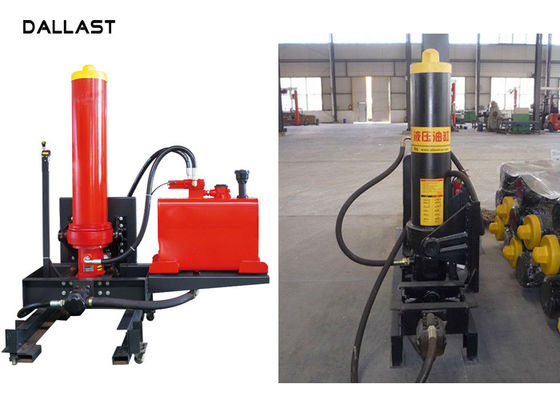

Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material

Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material

    • Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
    • Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
    • Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material
  • Dump / Tipper Truck Multi Stage Hydraulic Cylinder Hard Chrome Piston Rod Material

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Factory Visit: Available Model Number: Hydraulic Cylinder
    Extended Stages: 3-7 Stages Heat Treatment: Quenching
    Material: Hard Chrome Piston Rod Painting: Anti Rust Painting
    Structure: General Cylinder Shaft Diameter: Optional
    High Light:

    multi stage hydraulic ram

    ,

    hollow hydraulic cylinder

    Multistage Hydraulic Telescopic Cylinder for Dump Truck/Tipper Truck/Trailer



    Our service
    80% quality of REXROTH with 30% Price
    Custom hydraulic cylinders to fit your need.

    Since 1990s, DALLAST Hydraulic Manufacturer team are becoming more and more skilled to provide small hydraulic ram solutions by satisfying the most strict customers and their requirements.

    Each DALLAST Hydraulic Ram has suffered rigorous process and inspection to promise the good quality for our customer.


    1. Design Services
    Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

    2. Product Services
    raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

    3. Samples Procedure
    We could develop the sample according to your requirement and amend the sample constantly to meet your need.

    4. Research & Development
    We usually research the new needs of the market and develop the new model when there is new cars in the market.

    5. Quality Control
    Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

    6. Certification
    Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.



    Type

    MODEL NO. Stage First Stage Diameter mm Stroke  mm Largest Sleeve  OD  mm

    Closed length

    mm

    FC-4-126-4145 4 126 4145 219 1357
    FC-4-126-4345 4 126 4345 219 1407
    FC-4-126-4545 4 126 4545 219 1457
    FC-4-126-4745 4 126 4745 219 1507
    FC-4-126-4945 4 126 4945 219 1557
    FC-4-126-5145 4 126 5145 219 1607
    FC-3-145-3230 3 145 3230 219 1403
    FC-3-145-3680 3 145 3680 219 1553
    FC-3-145-3830 3 145 3830 219 1603
    FC-4-145-4110 4 145 4110 219 1357
    FC-4-145-4310 4 145 4310 219 1407
    FC-4-145-4510 4 145 4510 219 1457
    FC-4-145-4710 4 145 4710 219 1507
    FC-4-145-4910 4 145 4910 219 1557
    FC-4-145-5110 4 145 5110 219 1607
    FC-4-145-5310 4 145 5310 219 1657
    FC-4-145-5865 4 145 5865 219 1807
    FC-5-145-4310 5 145 4310 219 1161
    FC-4-165-4110 4 165 4110 244 1347
    FC-4-165-4510 4 165 4510 244 1447
    FC-4-165-4710 4 165 4710 244 1497
    FC-4-165-4910 4 165 4910 244 1547
    FC-4-165-5110 4 165 5110 244 1597
    FC-4-165-5310 4 165 5310 244 1647
    FC-4-165-5865 4 165 5865 244 1797
    FC-5-165-5135 5 165 5135 244 1351
    FC-5-165-5385 5 165 5385 244 1401
    FC-5-165-5635 5 165 5635 244 1451
    FC-5-165-6135 5 165 6135 244 1551
    FC-5-165-6385 5 165 6385 244 1601
    FC-5-165-6825 5 165 6825 244 1701
    FC-5-165-7075 5 165 7075 244 1751
    FC-5-165-7325 5 165 7325 244 1801
    FC-5-165-7575 5 165 7575 244 1851
    FC-5-165-7825 5 165 7825 244 1901
    FC-5-165-8185 5 165 8185 244 2001
    FC-5-165-8435 5 165 8435 244 2051
    FC-5-187-5135 5 187 5135 244 1351
    FC-5-187-5385 5 187 5385 244 1401
    FC-5-187-5635 5 187 5635 244 1451
    FC-5-187-6135 5 187 6135 244 1551
    FC-5-187-6385 5 187 6385 244 1601
    FC-5-187-6825 5 187 6825 244 1701
    FC-5-187-7075 5 187 7075 244 1751
    FC-5-187-7325 5 187 7325 244 1801
    FC-5-187-7825 5 187 7825 244 1901
    FC-5-187-8185 5 187 8185 244 2001
    FC-5-187-8435 5 187 8435 244 2051
    FC-5-187-8935 5 187 8935 244 2151
    FC-5-187-9185 5 187 9185 244 2201
    FC-6-187-8790 6 187 8790 244 1805
    FC-6-187-9085 6 187 9085 244 1855
    FC-7-187-8535 7 187 8535 244 1559
    FC-5-210-6135 5 210 6135 273 1551
    FC-5-210-6825 5 210 6825 273 1701
    FC-5-210-7075 5 210 7075 273 1751
    FC-5-210-7325 5 210 7325 273 1801
    FC-5-210-7825 5 210 7825 273 1901
    FC-5-210-9185 5 210 9185 273 2201
