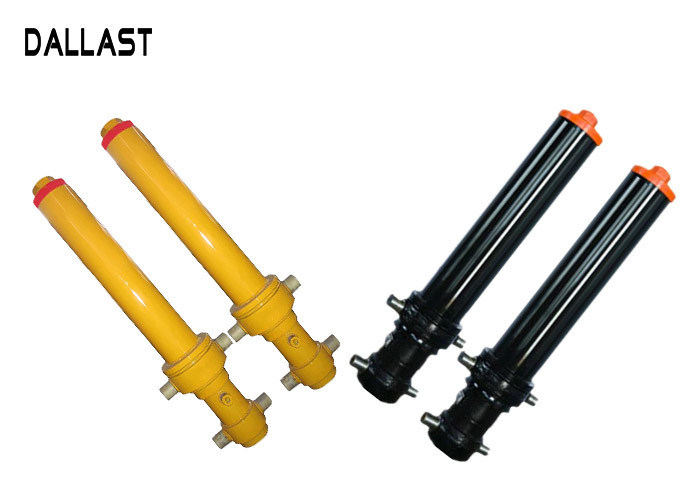

Multi Stage Telescopic Hydraulic Cylinder Single Acting For Agricultural Tipper Truck

Multi Stage Telescopic Hydraulic Cylinder Single Acting For Agricultural Tipper Truck

    • Multi Stage Telescopic Hydraulic Cylinder Single Acting For Agricultural Tipper Truck
    • Multi Stage Telescopic Hydraulic Cylinder Single Acting For Agricultural Tipper Truck
    • Multi Stage Telescopic Hydraulic Cylinder Single Acting For Agricultural Tipper Truck
  • Multi Stage Telescopic Hydraulic Cylinder Single Acting For Agricultural Tipper Truck

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Manufacturing Capability: OEM, Sample Model Number: Hydraulic Cylinder
    Extended Stages: 3-7 Stages Heat Treatment: Quenching
    Acting Way: Single Acting Body Material: Stainless Steel
    Structure: General Cylinder Sample: Available
    High Light:

    multi stage hydraulic ram

    ,

    hollow hydraulic cylinder

    Multi Stage Hydraulic Cylinder Telescopic Cylinder Single Acting for Agricultural Tipper Truck

    Model:

    MODEL NO. Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
    3TG FC-110-3205 110 3205 168 343
    3TG FC-110-3460 110 3460 168 343
    3TG FC-129-2980 129 2980 218 343
    3TG FC-129-3205 129 3205 218 343
    3TG FC-129-3460 129 3460 218 343
    3TG FC-129-3880 129 3880 218 343
    3TG FC-129-4270 129 4270 218 343
    4TG FC-129-4280 129 4280 218 343
    4TG FC-129-4280 129 4280 218 343
    4TG FC-129-5180 129 5180 218 343
    4TG FC-149-3680 149 3680 218 343
    4TG FC-149-3980 149 3980 218 343
    4TG FC-149-4280 149 4280 244 343
    4TG FC-149-4620 149 4620 244 343
    4TG FC-149-4940 149 4940 244 343
    4TG FC-149-5180 149 5180 244 343
    4TG FC-149-5460 149 5460 244 343
    4TG FC-169-4280 169 4280 244 343
    4TG FC-169-4620 169 4620 244 343
    4TG FC-169-4940 169 4940 244 343
    4TG FC-169-5180 169 5180 244 343
    4TG FC-169-5460 169 5460 244 343
    5TG FC-169-5355 169 5355 244 343
    5TG FC-169-5780 169 5780 244 343
    5TG FC-169-6180 169 6180 244 343
    5TG FC-169-6830 169 6830 244 343
    5TG FC-169-7130 169 7130 244 343
    5TG FC-169-7630 169 7630 244 343
    5TG FC-169-8130 169 8130 244 343
    5TG FC-169-9030 169 9030 244 343
    5TG FC-169-9530 169 9530 244 343
    5TG FC-191-5780 191 5780 274 343
    5TG FC-191-6180 191 6180 274 343
    5TG FC-191-7130 191 7130 274 343
    5TG FC-191-7630 191 7630 274 343
    5TG FC-191-8130 191 8130 274 343
    5TG FC-191-9030 191 9030 274 343
    5TG FC-191-9530 191 9530 274 343
    5TG FC-214-7610 214 7610 274 343
    5TG FC-214-9030 214 9030 274 343



    Quality Control:
    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection.
    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection.
    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test.
    4. Type Inspection.
    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

    Any types of Machinery Model could be designed according to your requirement.
    If you're interested in our products, please contact with us.



    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support longer working life.
    - Integrated design, easy to maintain.
    -100% tested, guarantee high quality.

    According to the work pressure, work temperature, work situation and other special requirements, different cylinder tube will be choose
    1.1 Cylinder tube: cold drawn precision seamless steel tube, hot rolled seamless steel tube, forged tube.
    1.2 Tube material: 27SiMn
    1.3 Surface roughness: R0.16-0.32μm
    1.4 Inside chromating: If necessary, inside tube will be chromated.



    Company Profile:
    Dallast Technology Co., Ltd is a hydraulic cylinder, hydraulic support rod and hydraulic system research and development design, the main products supporting construction machinery, agricultural machinery, bridges, dump trucks, excavators and other industry facilities, the company mainly to manufacturing, sales and service in one Professional factory. Company products are exported to Europe and the United States at home and abroad. Companies in accordance with the ISO quality assurance system, the production process in every detail of the attention, adhere to the "details determine the success or failure, improve the quality of the brand" business philosophy, do a good job of quality management. In the introduction of high-quality CNC machining equipment at the same time to Taiwan's technology as the basis for the production, improve product quality.
