| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Color: | Any Color | Structure: | Telescopic Sleeve Cylinder |
|---|---|---|---|
| Adjusted Form: | Regulated Type | Body Material: | Stainless Steel |
| Usage: | Automation And Control | Sample: | Available |
| Transport Package: | Wooden Packing Or Customer′s Needs | Trademark: | DALLAST |
| High Light: | single acting telescopic cylinder,industrial hydraulic cylinders |
||

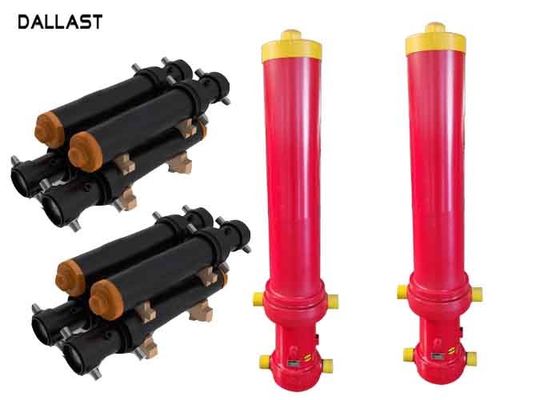

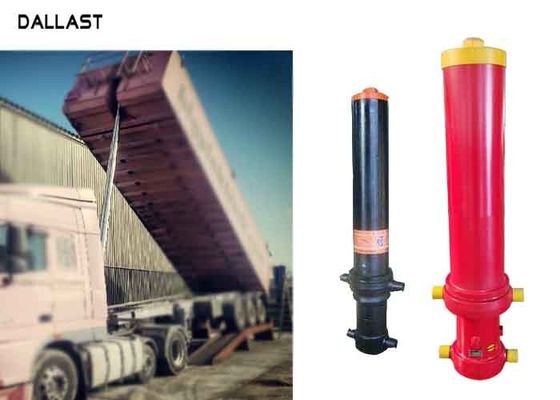

Single Acting Multistage Telescopic Hydraulic Ram for Dump Truck/Trailer
We can provide you with many sorts of single acting telescopic hydraulic cylinder and multistage telescopic hydraulic cylinder which are widely used for trailers, tippers and dump truck. The bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm which can provide the max power of 120t. We also can design it according to your request.
Telescopic cylinder for large stroke and installation distance or the total size (stroke can be greater than the installation distance or total length) of the occasion
The multi-stage hydraulic cylinder produced by our company has the advantages of compact layout, reasonable structure, reliable working, convenient assembly and disassembly, easy maintenance and is widely used in various construction machinery, mining machinery, hoisting and transport machinery, environmental protection machinery, traffic machinery (wrecker) ….
The system hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and rod diameter and other parameters can be designed according to customer needs.
| Brand | DALLAST |
| Model Number | 3TG/4TG/5TG |
| Application | Dump truck, Tipper, Trailer, hoist |
| Capacity |
OEM,ODM,Sample |
| Coating | All tubes are chrome plated |
| Working pressure | 5MPa-36MPa |
| Bore size | 85mm-248mm |
| capacity | 7t-120t |
| Stroke | 200mm-12000mm |
| Color | Black, Blue, Yellow, White, Red etc |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Heat Treatment | Quenching |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001: 2008, SGS, TS16949 |
| Warranty | One year after shipping arrival |
| working temperature | -30° C to 80°C |
| Brand | MODEL NO. | Stage | Stroke | Largest Sleeve OD | Closed length | Mounting distance |
| DALLAST | FC-3-107-2855 | 3 | 2855 | 152 | 1268 | 311 |
| DALLAST | FC-3-107-3115 | 3 | 3115 | 152 | 1368 | 311 |
| DALLAST | FC-3-107-3265 | 3 | 3265 | 152 | 1418 | 311 |
| DALLAST | FC-3-107-3415 | 3 | 3415 | 152 | 1468 | 311 |
| DALLAST | FC-3-107-3715 | 3 | 3715 | 152 | 1568 | 311 |
| DALLAST | FC-3-126-3230 | 3 | 3230 | 219 | 1403 | 343 |
| DALLAST | FC-3-126-3680 | 3 | 3680 | 219 | 1553 | 343 |
| DALLAST | FC-3-126-3830 | 3 | 3830 | 219 | 1603 | 343 |
| DALLAST | FC-3-126-4400 | 3 | 4400 | 219 | 1803 | 343 |
| DALLAST | FC-4-126-4145 | 4 | 4145 | 219 | 1357 | 343 |
| DALLAST | FC-4-126-4345 | 4 | 4345 | 219 | 1407 | 343 |
| DALLAST | FC-4-126-4545 | 4 | 4545 | 219 | 1457 | 343 |
| DALLAST | FC-4-126-4745 | 4 | 4745 | 219 | 1507 | 343 |
| DALLAST | FC-4-126-4945 | 4 | 4945 | 219 | 1557 | 343 |
| DALLAST | FC-4-126-5145 | 4 | 5145 | 219 | 1607 | 343 |
| DALLAST | FC-3-145-3230 | 3 | 3230 | 219 | 1403 | 343 |
| DALLAST | FC-3-145-3680 | 3 | 3680 | 219 | 1553 | 343 |
| DALLAST | FC-3-145-3830 | 3 | 3830 | 219 | 1603 | 343 |
| DALLAST | FC-4-145-4110 | 4 | 4110 | 219 | 1357 | 343 |
| DALLAST | FC-4-145-4310 | 4 | 4310 | 219 | 1407 | 343 |
| DALLAST | FC-4-145-4510 | 4 | 4510 | 219 | 1457 | 343 |
| DALLAST | FC-4-145-4710 | 4 | 4710 | 219 | 1507 | 343 |
| DALLAST | FC-4-145-4910 | 4 | 4910 | 219 | 1557 | 343 |
| DALLAST | FC-4-145-5110 | 4 | 5110 | 219 | 1607 | 343 |
| DALLAST | FC-4-145-5310 | 4 | 5310 | 219 | 1657 | 343 |
| DALLAST | FC-4-145-5865 | 4 | 5865 | 219 | 1807 | 343 |
| DALLAST | FC-5-145-4310 | 5 | 4310 | 219 | 1161 | 343 |
| DALLAST | FC-4-165-4110 | 4 | 4110 | 244 | 1347 | 343 |
| DALLAST | FC-4-165-4510 | 4 | 4510 | 244 | 1447 | 343 |
| DALLAST | FC-4-165-4710 | 4 | 4710 | 244 | 1497 | 343 |
| DALLAST | FC-4-165-4910 | 4 | 4910 | 244 | 1547 | 343 |
| DALLAST | FC-4-165-5110 | 4 | 5110 | 244 | 1597 | 343 |
| DALLAST | FC-4-165-5310 | 4 | 5310 | 244 | 1647 | 343 |
| DALLAST | FC-4-165-5865 | 4 | 5865 | 244 | 1797 | 343 |
| DALLAST | FC-5-165-5135 | 5 | 5135 | 244 | 1351 | 343 |
| DALLAST | FC-5-165-5385 | 5 | 5385 | 244 | 1401 | 343 |
| DALLAST | FC-5-165-5635 | 5 | 5635 | 244 | 1451 | 343 |
| DALLAST | FC-5-165-6135 | 5 | 6135 | 244 | 1551 | 343 |
| DALLAST | FC-5-165-6385 | 5 | 6385 | 244 | 1601 | 343 |
| DALLAST | FC-5-165-6825 | 5 | 6825 | 244 | 1701 | 343 |
| DALLAST | FC-5-165-7075 | 5 | 7075 | 244 | 1751 | 343 |
| DALLAST | FC-5-165-7325 | 5 | 7325 | 244 | 1801 | 343 |
| DALLAST | FC-5-165-7575 | 5 | 7575 | 244 | 1851 | 343 |
| DALLAST | FC-5-165-7825 | 5 | 7825 | 244 | 1901 | 343 |
| DALLAST | FC-5-165-8185 | 5 | 8185 | 244 | 2001 | 343 |
| DALLAST | FC-5-165-8435 | 5 | 8435 | 244 | 2051 | 343 |
| DALLAST | FC-5-187-5135 | 5 | 5135 | 244 | 1351 | 343 |
| DALLAST | FC-5-187-5385 | 5 | 5385 | 244 | 1401 | 343 |
| DALLAST | FC-5-187-5635 | 5 | 5635 | 244 | 1451 | 343 |
| DALLAST | FC-5-187-6135 | 5 | 6135 | 244 | 1551 | 343 |
| DALLAST | FC-5-187-6385 | 5 | 6385 | 244 | 1601 | 343 |
| DALLAST | FC-5-187-6825 | 5 | 6825 | 244 | 1701 | 343 |
| DALLAST | FC-5-187-7075 | 5 | 7075 | 244 | 1751 | 343 |
| DALLAST | FC-5-187-7325 | 5 | 7325 | 244 | 1801 | 343 |
| DALLAST | FC-5-187-7825 | 5 | 7825 | 244 | 1901 | 343 |
| DALLAST | FC-5-187-8185 | 5 | 8185 | 244 | 2001 | 343 |
| DALLAST | FC-5-187-8435 | 5 | 8435 | 244 | 2051 | 343 |
| DALLAST | FC-5-187-8935 | 5 | 8935 | 244 | 2151 | 343 |
| DALLAST | FC-5-187-9185 | 5 | 9185 | 244 | 2201 | 343 |
| DALLAST | FC-6-187-8790 | 6 | 8790 | 244 | 1805 | 843 |
| DALLAST | FC-6-187-9085 | 6 | 9085 | 244 | 1855 | 343 |
| DALLAST | FC-7-187-8535 | 7 | 8535 | 244 | 1559 | 343 |
| DALLAST | FC-5-210-6135 | 5 | 6135 | 273 | 1551 | 343 |
| DALLAST | FC-5-210-6825 | 5 | 6825 | 273 | 1701 | 343 |
| DALLAST | FC-5-210-7075 | 5 | 7075 | 273 | 1751 | 343 |
| DALLAST | FC-5-210-7325 | 5 | 7325 | 273 | 1801 | 343 |
| DALLAST | FC-5-210-7825 | 5 | 7825 | 273 | 1901 | 343 |
| DALLAST | FC-5-210-9185 | 5 | 9185 | 273 | 2201 | 343 |
FAQ:
1.Are you a manufacturer?
Yes, we focus on the hydraulic industry for 15 years.
We are professional manufacturer in hydraulic. We will provide competitive price.
2.What is your warranty?
Our products are all available for one-year free warranty and product lifetime consulting service.
3.How to ship your product?
We are transported by sea, by air or by international express.
According to your needs.
4. Do you support OEM service?
Yes. OEM service is available.
We are pleased to process according to the customer's drawings.
5. Is your design reasonable?
We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect performance.
6. How to choose which model hydraulic cylinder to buy?
Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.
7. How long it will take from ordering to delivering?
It depends on the ordering quantity. Generally, we will take 15-30days. If there are any changes, we will inform you in time.
