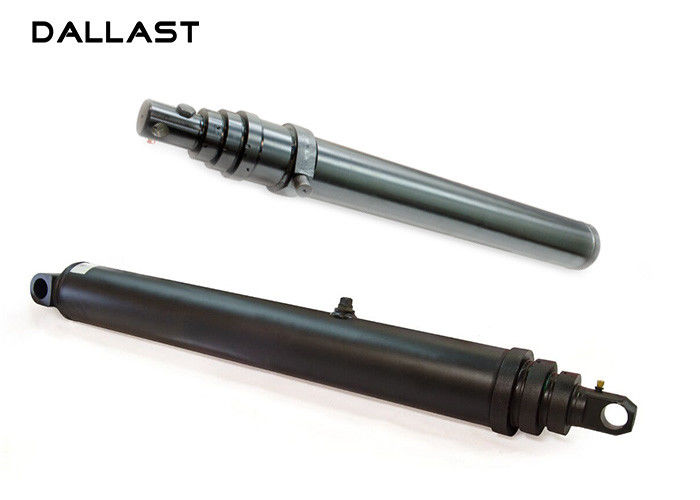

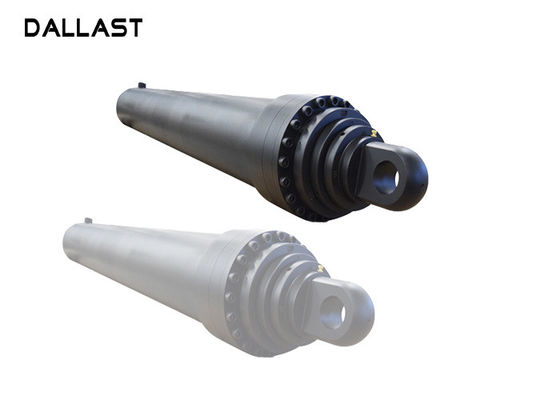

5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck

5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck

    • 5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck
    • 5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck
    • 5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck
  • 5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Load Capacity: 50 Ton Structure: Telescopic Sleeve Cylinder
    Hardness: HRC 45-55 Body Material: According To User Requirements
    Honed Tube: 20-2000 Mm, Heat Treatment Warranty: One Year
    Seal Kit: Nok, Hallite, Parker Etc Surface Coating: Sandblasting, Primer Paint, Middle Paint, Finish
    High Light:

    single acting telescopic cylinder

    ,

    industrial hydraulic cylinders

    Single Acting Telescopic 5 Inch Bore Hydraulic Cylinder for Dump Truck

    Model No. First Stage Diameter Stroke Closed Length Open Length
    3TG F5*72 127 1829mm 945mm 2773mm
    3TG F5*84 127 2134mm 1046mm 3180mm
    3TG F5*107 127 2732mm 1229mm 3961mm
    3TG F5*126 127 3216mm 1386mm 4602mm
    3TG F6*86 152.4 2203mm 1038mm 3241mm
    3TG F6*104 152.4 2640mm 1194mm 3834mm
    3TG F6*107 152.4 2732mm 1289mm 3961mm
    3TG F6*111 152.4 2819mm 1268mm 4087mm
    3TG F6*120 152.4 3048mm 1359mm 4407mm
    3TG F6*123  152.4 3124mm 1395mm 4519mm
    3TG F6*126  152.4 3208mm 1386mm 4594mm
    3TG F6*140  152.4 3562mm 1519mm 5081mm
    4TG F6*135  152.4 3429mm 1199mm 4628mm
    4TG F6*156  152.4 3962mm 1362mm 5324mm
    3TG F7*110  177.8 2810mm 1271mm 4081mm
    3TG F7*120 177.8 3048mm 1349mm 4397mm
    3TG F7*124 177.8 3172mm 1392mm 4564mm
    3TG F7*129 177.8 3277mm 1435mm 4712mm
    3TG F7*140  177.8 3567mm 1524mm 5091mm


    Our advantages
    1. Our cylinders are designed by CAD or 3D, and have been through ISO9001:2000 international quality system certification.
    Our production is managed according to ERP. These factors ensure our quality to be the top three in China. Warranty period for our cylinder is 2 years. For some special cylinders, the period is 5 years. All the drawings, records of production and inspection would be kept for 10 years.
    2. We choose accessories according to customers' requirements. Usually, brands of seals are PARKER, MERKER or NOK, valves are SUN or REXROTH, bearings are LONGXI or SKF, displacement sensors are MTS or WALSH, and proximity switches are BALLUFF.
    3. The delivery speed is fast, the average delivery time is 15-25 days. Our annual quantity for hydraulic cylinder is more than 100 thousand pieces.
    4. Classifications include DNV,ABS,LR,BV,GL,CCS,RINA,KR,NK,RS.

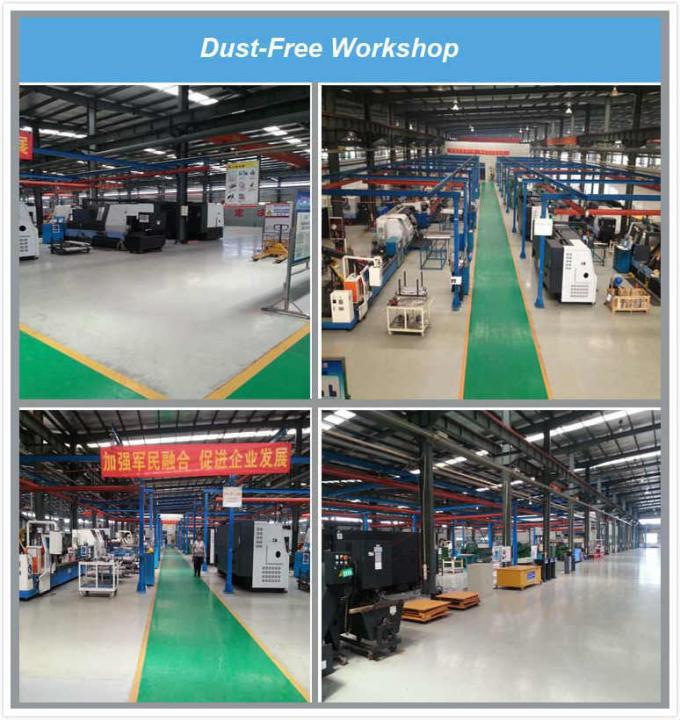

    5. Our advanced producing equipment included DOSHAAN machine center, CNC Lather, TACHI scraping roller burnishing machine etc.
    6. Welding technology certificates from GL and CCS.
    7. High Precision:
    Honed Tube (Roughness of tube is 0.2μm and straightness is less than 0.15/1000), Piston Rod (Plating thickness is 10-100 micron. Surface roughness is 0.2μm and straightness is also less than 0.15/1000)
    The purity of hydraulic oil is NAS 6-9.
    8. We produce cylinders for some factories on an OEM basis, such as EATON, PARKER, REXROTH, MAC GREGOR, DANIELI, and so on.

    Specifications:
    1. Oil port connection: internal thread or flange
    2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
    Both ends with buffer
    Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
    Rod side band buffer
    4. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing
    5. Installation: cylinder head earrings with bushing
    Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange

    Application
    Agricultural Equipment, Mobile Equipment, Construction Equipment, Forestry Equipment, Lift gate & Snow plow, Material Handling Equipment, On-Highway Trucks, Grounds Care Equipment, Aerial Lifts and Trailers, Medical Chairs and Tables, Trash Compactors, Recycling Bailers, Log splitters and Many More.
    5 Inch Bore Single Acting Hydraulic Ram Cylinder HRC 45-55 Hardness For Dump Truck
