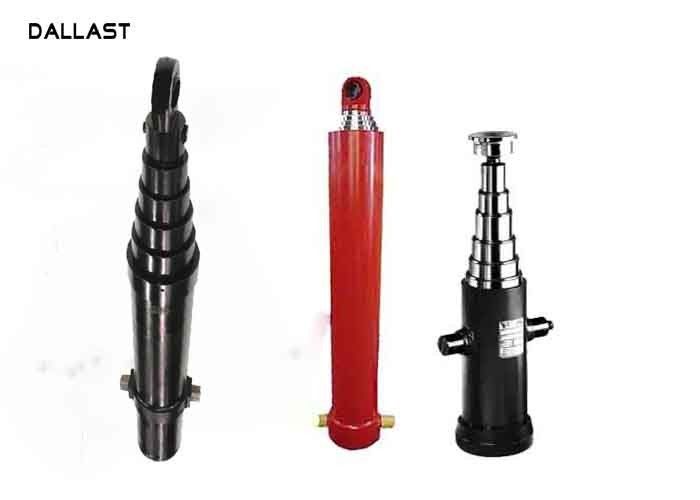

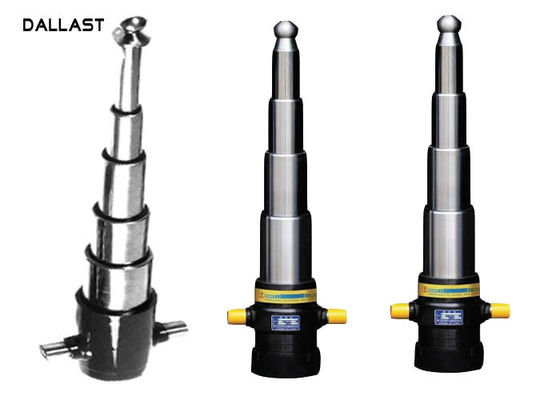

10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure

10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure

    • 10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure
    • 10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure
    • 10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure
  • 10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Place Of Origin: Shandong Structure: Telescopic Sleeve Cylinder
    Capacity: OEM,ODM,Sample Body Material: Stainless Steel
    Type: Hydraulic Single Cylinder Model Number: 3/4/5/6 Stage
    High Light:

    single acting telescopic cylinder

    ,

    industrial hydraulic cylinders

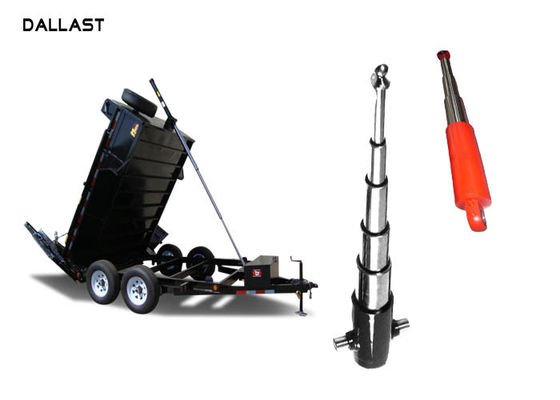

    Single Acting 10 inch hydraulic Ram 3-5 Stages for Dump Truck Trailer

    Model

    Rated pressure

    MAP

    Bore diameter

    mm

    Installation distance   mm

    Lift

    ton

    Stroke

    mm

    4TG-E180*800 16 180 140 40 800
    4TG-E160*800 16 160 140 32 800
    4TG-E150*830 16 150 160 28 830
    4TG-E140*800 16 140 140 25 800
    4TG-E140*730 16 140 140 25 730
    4TG-E135*800 16 135 140 23 800
    4TG-E135*730 16 135 140 23 730
    4TG-E130*750 16 130 110 21 750
    3TG-E150*800 16 150 140 28 800
    5TG-E130*750 16 130 140 21 750
    3TG-E130*900 16 130 140 21 900
    4TG-E110*1360 16 110 140 15 1360
    3TG-E110*1530 16 110 140 15 1530
    3TG-E110*1350 16 110 140 15 1350
    3TG-E110*1020 16 110 140 15 1020
    3TG-E110*900 16 110 260 15 900
    2TG-E110*1020 16 110 140 15 1020
    3TG-E90*1155 16 90 140 10 1155
    3TG-E90*1020 16 90 140 10 1020
    3TG-E90*900 16 90 260 10 900
    3TG-E90*750 16 90 140 10 750
    2TG-E90*900 16 90 140 10 900
    2TG-E90*600 16 90 260 10 600
    2TG-E90*500 16 90 260 10 500
    3TG-E70*750 16 70 140 6 750



    Not only we could manufacture all kinds of hydraulic cylinders according to the drawing from us customers, but also, we could make a design according to customer's requirements. If you

    require our engineer to make a design advise us the following specification:



    1. Rated pressure 2. Working pressure 3. Test pressure
    4. Assembly size 5. Pulling and return speed 6. Pulling force, and return stroke force
    7. Seal ring requirements. For example, brand, seal material  8. Tube and piston rod raw material requirements 9. Painting and other spare parts requirements.

    10. Piston rod surface treatment requirements, for example chromatin film thickness,

    Surface hardness etc .







    About us

    We are a manufacturer of Multi Stage Hydraulic cylinder with well-equipped testing facilities and strong technical force. With a wide range, good quality,reasonable prices and stylish designs, our products are extensively used in cylinder and other industries.

    Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!





    Quality Control:

    1 The mechanical properties and chemical elements of the raw material will be inspected to check whether qualified after entering the warehouse.

    2. Chemical composition inspection of raw materials, Test the chemical composition of metallic materials, such as C, Si, Mn, P, S, Cr, Ni and other elements. Mainly for raw .materials incoming inspection, by testing whether the material qualified, receiving materials.

    3. Metallographic analysis of metal materials is usually the raw materials, such as copper, iron, aluminum, magnesium, zinc, titanium, etc., for the processing of structural parts and finished product evaluation, through the metallographic analysis, You can find a variety of possible reasons for failure analysis in time, Prediction and analysis the characteristics of metallic materials and materials, Study material surface, and internal defects, and to improve and verify the process technology of the material;

    4. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing

    5. Mechanical performance testing equipment can meet the requirements of mechanical testing, all the use of computer digital display, so the accuracy is more accurate so that the mechanical properties of each cylinder barrel has been greatly improved.

    6. Every workpiece is machined according to the confirmed drawings and will be inspected casually by QC according to a certain proportion. The traceable record shall be clear and traceable.

    7. The qualified parts are assembled into one cylinder and then the pressure test will be done.

    Before and after assembly, the basic dimensions and workmanship will be inspected again.

    8.  An inspection report will come into being before delivery.

    10 Inch Single Acting Hydraulic Ram 3-5 Stages Telescopic Sleeve Cylinder Structure
