Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment

Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment

    • Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment
    • Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment
    • Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment
  • Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Seals: Parker, Merkel, Hallite Delivery Time: 15-25 Days
    Available Temperature: -40℃ To 80℃ Work Temperature: Normal Temperature
    Piston Rod Chrome Plated: Cr, Ni, Or Ceramic Business Type: Manufacturer
    Load Capacity: 50 Ton Usage: Automation And Control

    Double Acting Chromed Material Hydraulic Cylinder for Industrial Equipment



    Double Acting:



    The cylinder SFHSG series had magnetostrictive displacement sensor inside and with compact structure. The installation place is near to the normal cylinders.
    Based on the character of servo cylinder,
    1. we improved the design of sealing system, let the piston rod get the best oil film, to ensure the dynamic quality of servo cylinder under high pressure and bad condition.
    2. Regarding the material of piston rod, we changed normal standard to higher standard and chroming, to improve the performance of anti-bending, anti-rust, wear-resisting and anti-damage.
    3. Improve the surface roughness grade of cylinder bore and piston rod, satisfy the comprehensive performance of servo cylinder with low friction, no crawling and fast response. To improve the reliability and service life.





    Features and Functions:
    1. Double acting. Hydraulic return
    2. Baked enamel finish for increased corrosion resistance.
    3. Built-in safety valve prevents accidental over-pressurixation.
    4. Be equipped with double-loop pump to run.
    5. RR cylinder is the best solution to premise controlled heavy loads.
    6. Replacing adjustment rolls under a fly-over with RR cylinders, for controlled lifting an lowering operation.



    FAQ:

    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.


    2.OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products according to clients’ requirements.


    3. What is the payment method?
    (1) T/T: in advance.

    (2) West Union: we can accept small payment (below3000), but the bank charges shall be paid by the buyer.
    (3) L/C is acceptable if the amount is big enough.


    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.


    5. How about the warranty and after-sale service?
    All of our products have one-year warranty, and we can offer you long-distance after-sale
    service 7/24h.



    Attention:
    1. We have special departments to ensure that no strict quality control any quality problem before delivery.
    2. Carefully check goods size table and product specifications. Please check detail with customer service before buying
    3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.


    Advantage:

    Double Acting Hydraulic Cylinder,High Quality welded hydraulic cylinders series.Professional and thorough analysis and design to all kinds of oil cylinder through High-tech means
    B.Unique production process and management methods
    C.Imported cushion,sealing element,oil pipe and other components
    D.Holds Many Patents,High quality, high reliability, high service life.
    Bore:Φ63.5mm
    Rod:Φ31.75mm
    Stroke:92mm
    Pressure:3000PSI




    Cylinder Advantage:



    Sealing system Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film.
    Cylinder Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness.
    Tube

    1.Tubes are quenched and tempered.

    2.Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.

    Piston rod based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life.
    Buffer / Safety Functions Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown.
    Price Good quality yet lower price.

    Quality control

    · All specification is designed by professional engineer

    · All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.

    · All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose

    · Ensure goods can arrive at customer safely

    · One-year warranty and life long time follow up service is offered to solve any problems you met when use our products




    Product Show:

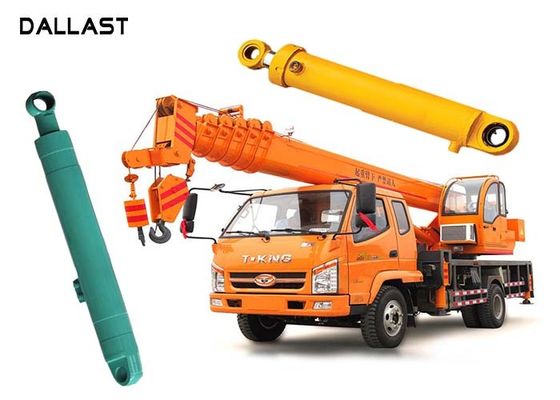

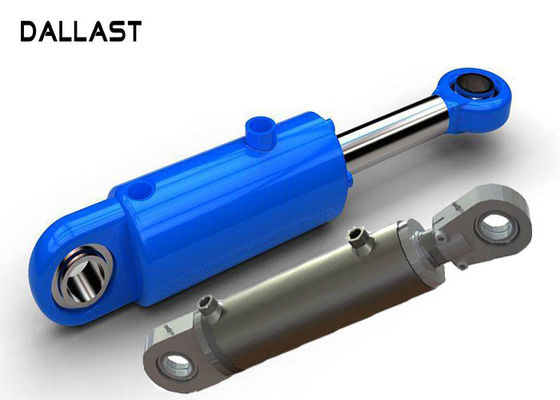

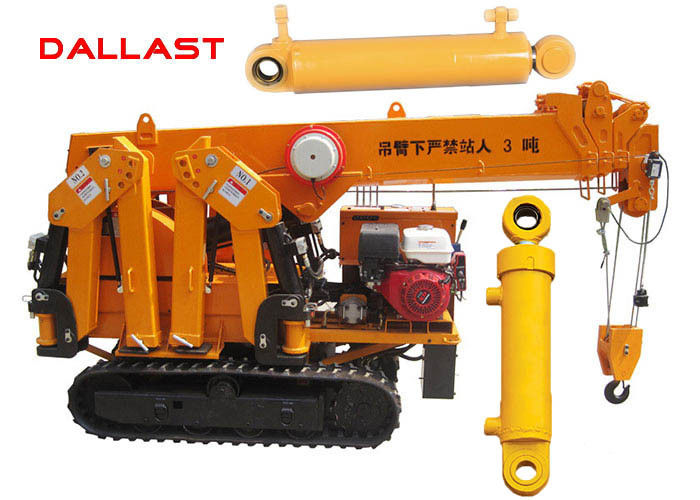

    Chromed Material Double Acting Hydraulic Cylinder For Industrial Equipment
