| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| HS Code: | 8412210000 | Model Number: | Hydraulic Cylinder |
|---|---|---|---|
| MOQ: | 1 Set | Surface Treatment: | Chrome Plating |
| Installation Distance: | 550-1500mm | Working Medium: | Hydraulic Oil |
| Payment Terms: | T/T, L/C, D/P, D/A And So On | Work Pressure: | 16Mpa, 20Mpa, 31Mpa |
| High Light: | double acting hydraulic cylinder,dual action hydraulic ram |
||
Industrial Double Acting Fee Hydraulic Cylinder, Welded Hydraulic Cylinder
Product Description:
We can provide you with many sorts of single acting telescopic hydraulic cylinder and multistage telescopic hydraulic cylinder which are widely used for trailers, tippers and dump truck. The bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm which can provide the max power of 120t. We also can design it according to your requests.
| Ceramic Piston Rod | |
| Plated Ceramic Thickness | 0.18mm |
| Surface Finishment | Ra<0.2 |
| Function | Anti-corrosion |
Specification:
| Material of cylinder tube | Stainless Steel |
| Coating | All tubes are chrome plated |
| Working pressure | 10MPa-25MPa |
| Bore size | 85mm-248mm |
| Capacity | 7t-120t |
| Stroke | 2000mm-12000mm |
| Color | Black, Blue, Yellow, White, Red etc. |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Certification | ISO9001: 2008, SGS, TS16949 |
| Warranty | One year after shipping arrival |
| working temperature | -30° C to 80°C |
Quality:
Good choice for our hydraulic cylinder
1. With Rolling technology, the cylinder are straighter, the surface are harder and its quality are more durable.
2. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid.
3. Using imported materials for seal kits.
4. The structure kits are made by high-strength Manganese plate
5. Advanced surface treatment:
A. Environmental automatically pipelined painting
B. Cleaning with automatic washing machine
C. Assembling in seal clean workshop

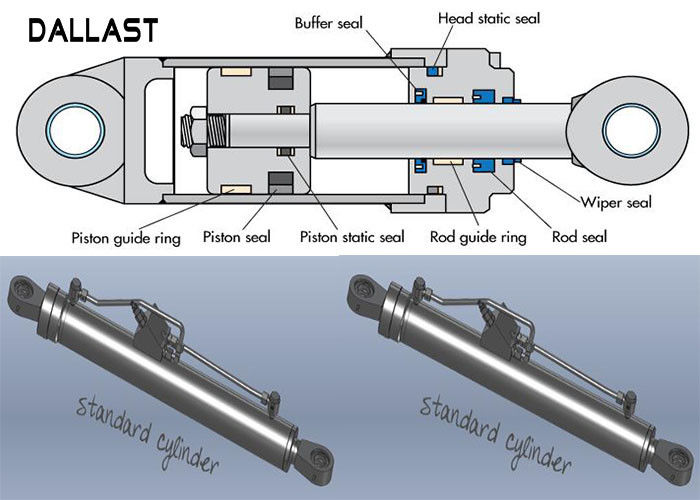

Piston locking device for double acting hydraulic cylinder
Abstract
The double acting hydraulic piston and cylinder assembly of the present invention utilizes a unique fastening mechanism for fastening the piston to the cylinder rod. The piston has a rod receiving opening through which the piston rod is fitted. The piston includes a piston groove which is aligned with an annular rod groove in the outer surface of the rod. Extending from the outer circumference of the piston inwardly to the piston groove is an access opening, through which a retaining wire is inserted. The retaining wire is wrapped around the piston rod and fits within both the piston groove and the rod groove so as to hold the piston against longitudinal movement with respect to the rod.
The method of the present invention comprises inserting the retainer wire through the access opening in the piston and rotating the piston until the wire wraps around the piston rod.
Our advantage
1. Customization and OEM service is acceptable for us.
2. All our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.
3. Samples can be providing to you before starting cooperation.
4. We are factory and can assure the prompt delivery time.
5. Packing can be customized. Often using standard export wooden case packing.
