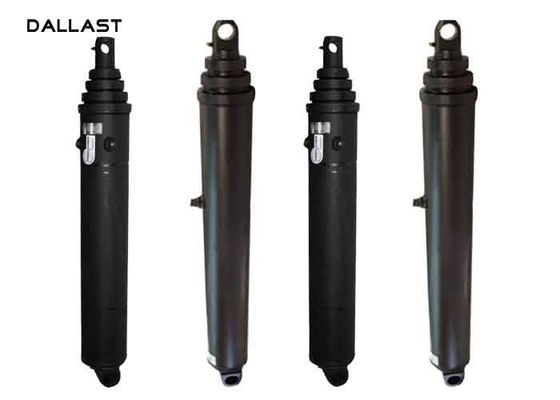

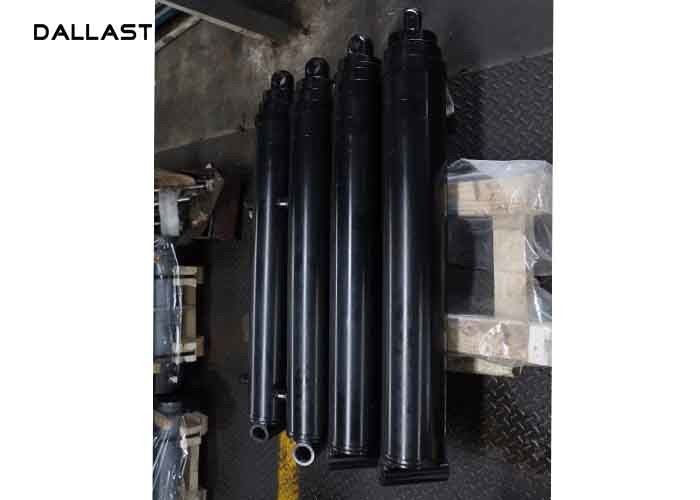

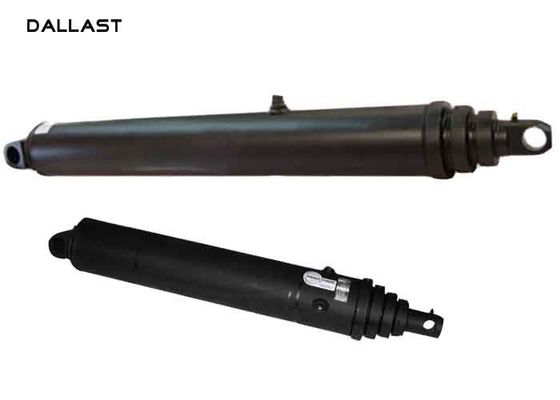

12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram

12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram

    • 12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram
    • 12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram
    • 12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram
  • 12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    MOQ: 1 Set Standard Or Nonstandard: Nonstandard
    Payment Terms: T/T, L/C, D/P, D/A And So On Installation Distance: 550-1500mm
    Body Material: Steel Place Of Origin: Shandong, China (Mainland)
    Application: Car Lift; Automobile; Excavator; Truck Brand Name: Dallast

    12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram

    Cylinder model

    Total stroke length
    (in)

    (mm)

    Closed length
    (in)

    (mm)

    Extended length
    (in)

    (mm)

    Width of base eye
    (in)

    (mm)

    Width of top pin eye
    (in)

    (mm)

    MH100-53-84P 84 39 1/2 122 1/2 7 2
    2,133.60 1,000.30 1,000.30 177.8 50.8
    MH100-53-126P 126 54 1/2 180 1/2 7 2
    3,200.40 138.43 4,584.70 177.8 50.8
    MH100-63-108P 108 49 1/2 157 1/2 7 1/4 2
    2,743.20 1,257.30 4,000.50 184.15 50.8
    MH100-63-120P 120 53 1/2 174 1/2 7 1/4 2
    3,048.00 1,358.90 4,432.30 184.15 50.8
    MH100-63-126P 126 55 1/2 181 1/2 7 1/4 2
    3,200.40 1,409.70 4,610.10 184.15 50.8
    MH100-63-132P 132 57 1/2 189 1/2 7 1/4 2
    3,352.80 1,460.50 4,813.30 184.15 50.8
    MH100-63-140P 140 60 200 7 1/4 2
    3,556.00 1,524.00 1,524.00 184.15 50.8
    MH100-73-120P 120 53 1/8 173 1/8 8 5/8 2
    3,048.00 1,349.38 4,397.36 219.08 50.8
    MH100-73-124P 124 54 13/16 179 11/16 8 5/8 2
    3,149.60 1,392.24 4,564.06 219.08 50.8



    Cylinder model

    Total stroke length
    (in)

    (mm)

    Closed length
    (in)

    (mm)

    Extended length
    (in)

    (mm)

    Width of base eye
    (in)

    (mm)

    Diam. Of top pin eye
    (in)

    (mm)

    MH100-64-135P-175 135 48 1/4 183 8 1 1/2
    3,429.00 3429.00 4648.20 203.20 38.10
    MH100-64-156P-175 156 53 1/4 209 1/4 7 1/8 1 1/2
    3,962.40 1352.55 5314.95 180.98 38.10
    MH100-64-156P 156 53 1/2 209 1/2 7 1/8 2
    3962.4 1,358.90 5,321.30 180.98 50.8
    MH100-74-135P 135 48 1/2 182 1/2 8 5/8 2
    3,429.00 1,231.90 4,635.50 219.08 50.8
    MH100-74-156P 156 53 1/2 209 1/2 8 5/8 2
    3,962.40 1,358.90 5,321.30 219.08 50.8
    MH100-74-180P 180 59 1/2 239 1/4 8 5/8 2
    4,572.00 1,511.30 6,076.95 219.08 50.8



    Cylinder model

    Total stroke length
    (in)

    (mm)

    Closed length
    (in)

    (mm)

    Extended length
    (in)

    (mm)

    Width of base eye
    (in)

    (mm)

    Diam. Of base pin eye
    (in)

    (mm)

    MH100-85-190P 190 54 244 9 1/2 2
    4,826.00 4,826.00 6,197.60 241.3 50.8
    MH100-85-220P 220 60 280 9 1/2 2
    5588 1524 7112 241.3 50.8
    MH100-85-235P 235 65 300 9 1/2 2
    5969 1651 7620 241.3 50.8
    MH100-85-250P 250 68 318 9 1/2 2
    151612.6 41935.4 193548 6129.02 50.8
    MH100-85-265P 265 71 336 9 1/2 2
    6731 1803.4 8534.4 241.3 50.8

    After-service
    1. Pre-sale service: Keep communicating with the truck manufacturers, including selection of product model, design of hydraulic system, test of performance and analysis of the accident. Once the problems occur, we will solve them immediately together with truck manufacturers.
    2. The sale service: Provide training and technical support for users.
    3. After-sale service: Solve the problem firstly, then analyses responsibility; Replace the system components immediately if any need.
    4. 24 hours telephone service hotline.


    Program before Delivery
    1. Trial Operation Test
    2. Start-up Pressure Test
    3. Pressure-Tight Test
    4. Leak Test
    5. Full Stroke Test
    6. Buffer Test
    7. Testing the Effect of Limit
    8. Load Efficiency Test
    9. Reliability Test



    Every piece of hydraulic cylinder is tested and will send out only after they are pasted each test.

    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.



    FAQ

    Q1: Are you a manufacture or a trade company?
    Answer: Manufacture, we are the leader manufacturer of hydraulic industry in China with 20 years' experience and technology accumulation. With strong technical team we could solve any annoyance of you.



    Q2: Do you have quality control system?
    Answer: Yes, we have Strict Quality Control System from Raw Material to the final finished products to customer.



    Q3: Do your products come with a warranty?
    Answer: Yes, Period of 14 months from the date of manufacture. The manufacture date is engraved on the label of every cylinder.



    12 Stroke Telescoping Single Acting Dump Trailer Hydraulic Cylinder Ram
