| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Operating Pressure: | 1000-3000 PSI | Temperature: | Normal Or High Temperature |
|---|---|---|---|
| Rod Material: | 20# Or Custom | Rod Outside Diameter: | Custom |
| Rod Inside Diameter: | Custom | Painted: | Green Or Custom |
| High Light: | double acting ram cylinder,dual action hydraulic ram |
||

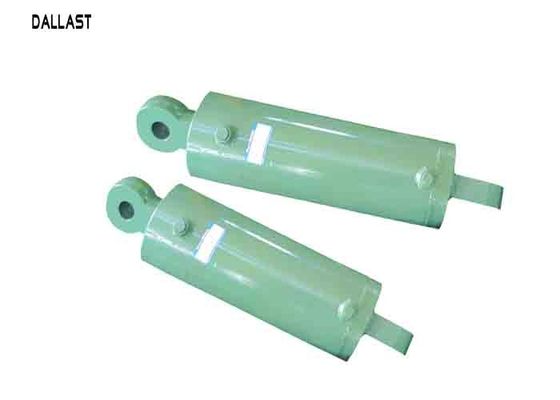

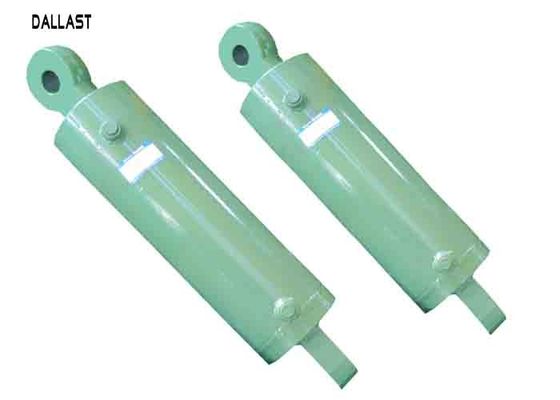

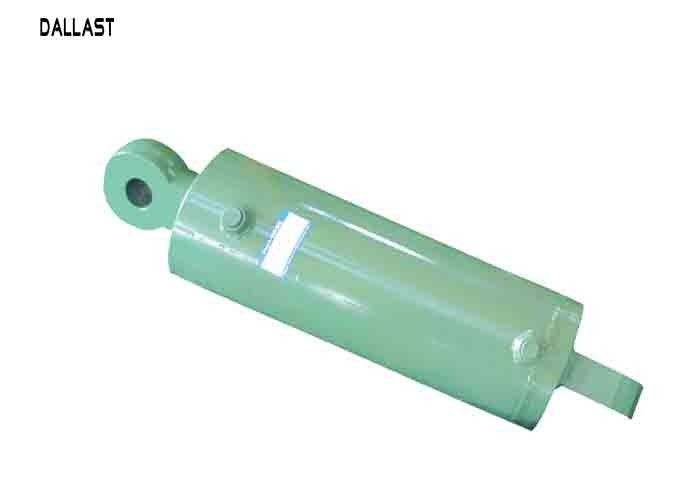

Hydraulic Cylinder Piston Large Bore Size Short Stroke Double Acting for Heavy Duty
Heavy duty hydraulic cylinder HSG series double acting single piston rod hydraulic cylinder, according to the use function is divided into : steering cylinder, boom cylinder, lifting cylinder, tilt cylinder and quick change cylinder, has the characteristics of connecting mode diversification and buffer device etc..
This design uses pressurized hydraulic fluid to extend and retract the piston rod. This requires fluid ports at both ends of the actuator in order for the oil to be directed onto both sides to the piston.
Hydraulic cylinders introduction:
1. Seals: Parker/Nok/Hallite.
2. Rod: Chrome plated and quenched. Has good mechanical properties, long service life.
3. Cylinder: Honing machining / boring / rolling.
4. Ballblast for paint.
5. Short delivery time.
| HSG series hydraulic cylinder | |||||||
| models |
capacity (ton) |
stroke (mm) |
bore (mm) |
the diameter of rod (mm) |
pressure (MPa) |
push (KN) |
tension (KN) |
| HSGK01-160/90E-131 | 3 | 715 | 160 | 90 | 12 | 321.7 | 219.9 |
| HSGL01-100/60E-131 | 34 | 1200 | 100 | 60 | 23 | 125.66 | 87.65 |
| HSGK01-80/50E-131 | 45 | 700 | 80 | 50 | 12 | 101.79 | 70.37 |
| HSGK01-80/50E-131 | 23 | 640 | 80 | 50 | 10 | 101.79 | 70.37 |
| HSGK01-80/50/E-131 | 12 | 550 | 80 | 50 | 11 | 101.79 | 70.73 |
| HSGL01-80/50-131 | 43 | 500 | 80 | 50 | 14 | 80.43 | 54.98 |
| HSGL01-80/50E-131 | 54 | 440 | 80 | 50 | 15 | 80.43 | 43.41 |
| HSGL01-63/35E-131 | 21 | 200 | 63 | 35 | 16 | 50 | 34.5 |
| HSGL01-63/35E-131 | 12 | 300 | 63 | 35 | 17 | 50 | 34.5 |
| HSGL01-50/28E-131 | 32 | 140 | 50 | 28 | 18 | 31.42 | 21.56 |
Application of HSG hydraulic cylinder:
Hydraulic cylinder series available
1.Engineering oil cylinder series;
2.Metallurgy oil cylinder series;
3.Turn over plow oil cylinder series;
4.Reaper oil cylinder series;
5.Excavator oil cylinder series;
6. Lift platform cylider.
Features:
1. Many mounting styles.
2. Several bore sizes and in varying strokes.
3. Cylinders are designed for normal or high operating pressures.
4. The operating temperature (oil and ambient) is -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.
5. Stronger weather resistance: The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.
6. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow industrial cylinders to work in harsh conditions.
7. Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s. In accordance with customer requirements, the maker can also supply other ranges of speed.
. Warranty: We offer 12 months warranty.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Tips:
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
| A. The drawing details are as follows. | ||
| Bore size |
Stroke length
|
|
| Rod diameter |
Mounting type
|
1. Front and end of earring |
|
2. Head fixed with flange |
||
|
3. End fixed with flange |
||
|
4. Vertical to axis foot type |
||
|
5. Middle fixed with pendulum shift |
||
|
6. End with single earring |
||
| Mounting length |
Paint color requirement
|
|
|
B. The product application description details |
||
| 1. Type of machine(loader, steer loader, excavator, and etc.) | ||
|
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
||
| 4. Single or double acting | ||
| 5. Operating pressure | ||
Contact Person: Mr. Aasin
Tel: +8613202289099
Fax: 86-755-32948288
