| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Acting Way: | Single Acting | Material: | Stainless Steel, Alloy Steel |
|---|---|---|---|
| Power: | Hydraulic | HS Code: | 8412210000 |
| Hardness: | HRC 45-55 | Usage: | Automation And Control |
| High Light: | long stroke hydraulic ram,long stroke single acting hydraulic cylinder |
||

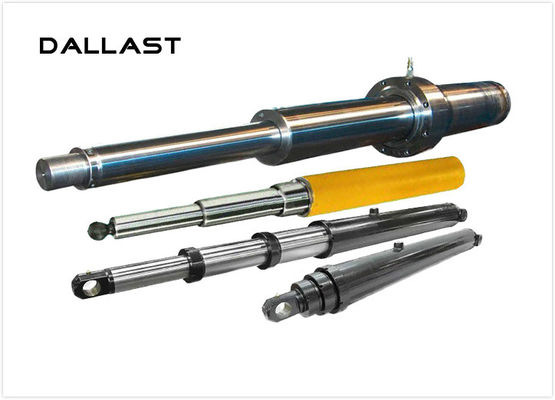

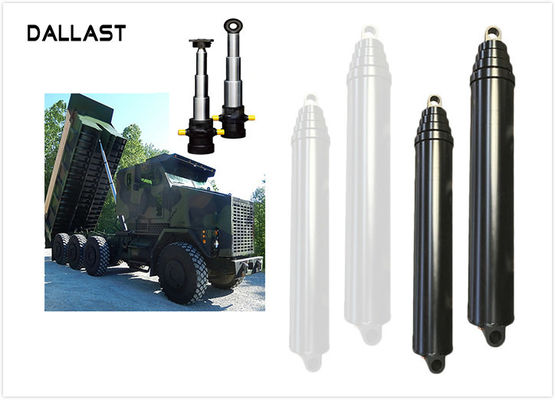

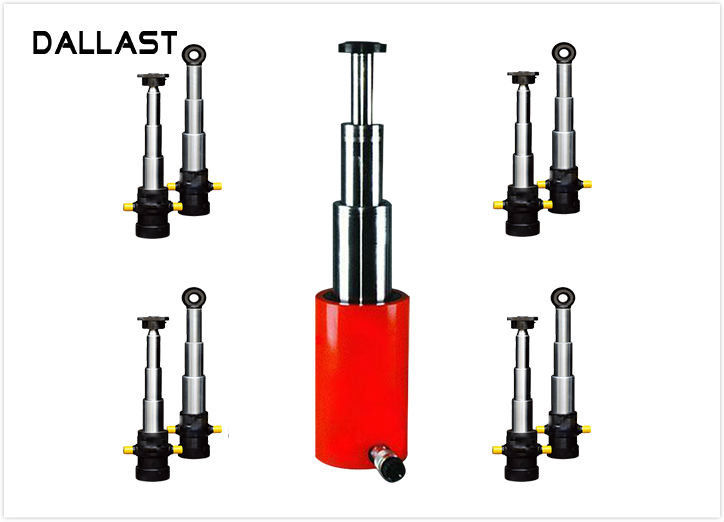

Telescopic Lifting Welded Industrial Dump Single Acting Hydraulic Ram Cylinder
Product Description:
Being highly customer-focused, we are committed to manufacture and export a foremost assortment of Industrial Hydraulic Cylinder. Made and designed at our state of the art machining facility, these cylinders showcase characteristics like sturdiness, leak proof design and rugged construction. Offered in different heights and capacities, our Industrial Hydraulic Cylinder is used in engineering and automotive industries. We adhere to the parameters of the national and international quality standards to provide the clients with utmost satisfaction in terms of quality.
Features:
Technical Description:
| Single Acting Hydraulic Ram Cylinder |
||||||
| Model | Cylinder Capacity (Ton) | Stroke (mm) | Plate Area (mm) | Capacity (Ton) | Height (mm) | Weight (kg) |
| SHJ-100 | 100 | 150 | 300 * 300 | 100 | 450 | 118 |
| SHJ-150 | 150 | 150 | 300 * 300 | 150 | 500 | 146 |
| SHJ-200 | 200 | 150 | 350 * 350 | 200 | 560 | 200 |
| SHJ-250 | 250 | 150 | 400 * 400 | 250 | 580 | 230 |
| SHJ-300 | 300 | 150 | 400 * 400 | 200 | 580 | 265 |
| SHJ-350 | 350 | 150 | 400 * 400 | 250 | 600 | 322 |
| Model | Cylinder Capacity (Ton) | Stroke (mm) | Plate Area (mm) | Capacity (Ton) | Height (mm) | Weight (kg) |
| SBJ-100 | 30 | 100 | 200 * 200 | 30 | 300 | 25 |
| SBJ-150 | 60 | 100 | 250 * 250 | 60 | 350 | 40 |
| SBJ-200 | 100 | 150 | 295 * 295 | 100 | 450 | 81 |
| SBJ-250 | 150 | 150 | 295 * 295 | 150 | 500 | 115 |
| SBJ-300 | 200 | 150 | 345 * 345 | 200 | 500 | 151 |
| Product Series: TG140/175/185 | |||||||
|
Hydrailic Cylinder Data: A. Bore diameter B. Rod diameter C. Stroke length D. Mounting type E. Mounting size F. Paint color requirements |
|||||||
| Model | Tipping.Max | Press | Close.height(mm) | Tanker.Vol | carriage | Rear overhang | Lifting.angle |
| (T) | (MPa) | (L) | (mm) | (degree) | |||
| 3TG-E140×4000 | 24.6 | 16 | 1675 | 50 | 5200-5400 | 700mm | 48-52 |
| 4TG-E140×4270 | 24.6 | 16 | 1421 | 55 | 5400-5600 | 700mm | 48-52 |
| 4TG-E175×4450 | 38.5 | 16 | 1470 | 81 | 5600-6000 | 800 | 48-52 |
| 4TG-E175×4650 | 38.5 | 16 | 1509 | 84 | 6000-6400 | 800 | 48-52 |
| 4TG-E175×5000 | 38.5 | 16 | 1597 | 91 | 6400-6600 | 800 | 48-52 |
| 4TG-E175×5390 | 38.5 | 16 | 1695 | 98 | 6600-7000 | 800 | 48-52 |
| 4TG-E175×5780 | 38.5 | 16 | 1792 | 104 | 7000-7400 | 800 | 48-52 |
| 4TG-E175×6000 | 38.5 | 16 | 1851 | 109 | 7400-7800 | 800 | 48-52 |
| 4TG-E185×5000 | 43 | 16 | 1597 | 103 | 6600-6800 | 800 | 48-52 |
| 4TG-E185×5780 | 43 | 16 | 1792 | 119 | 7200-7600 | 800 | 48-52 |
Cylinder and Cylinder of Advantages and Disadvantages:
1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
Profile:
We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.
15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.
The only one super size cylinder manufactuer in China.
Full experience in design, produce, mounting, testing, operation and maintenance.
Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.
Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.
Product Show:
